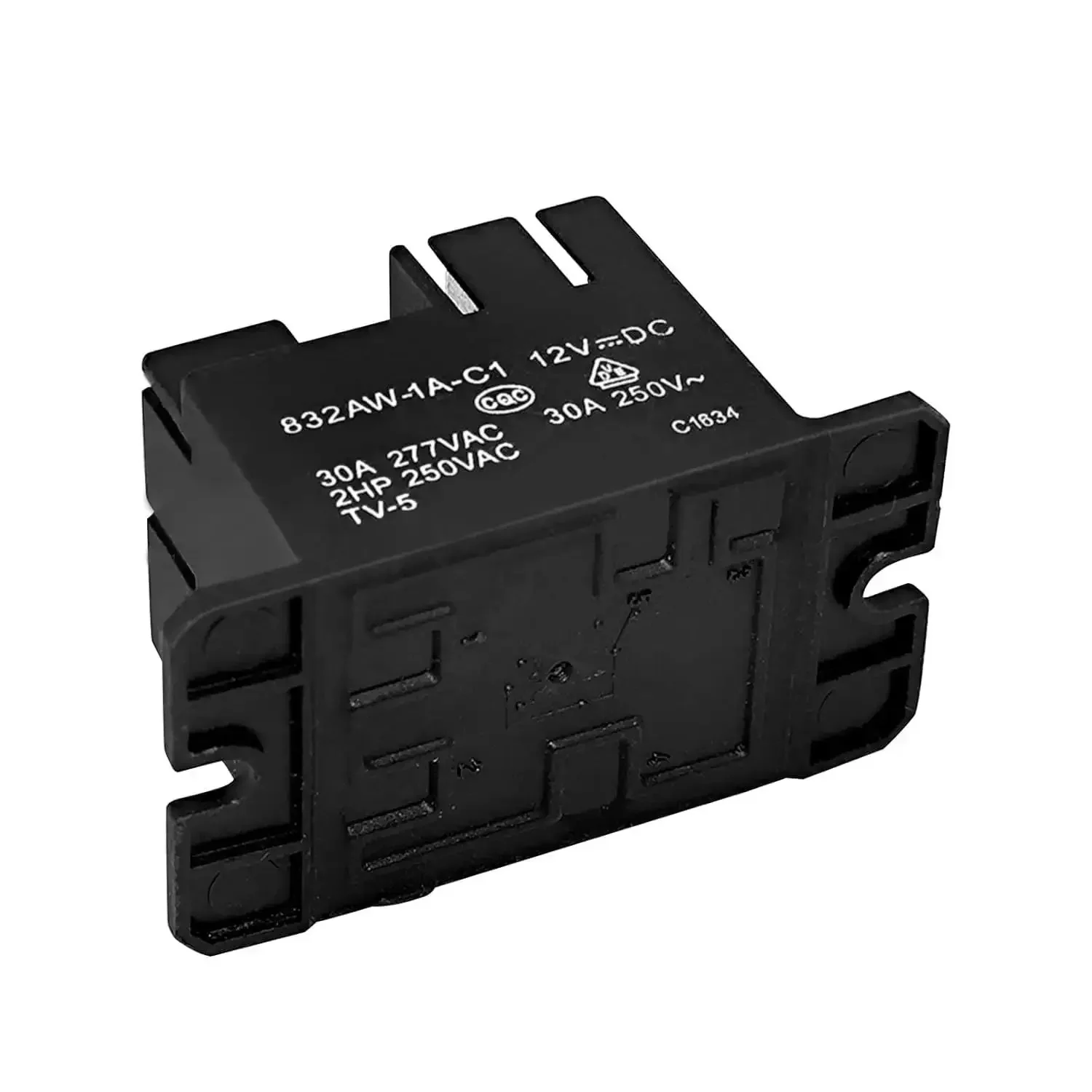

12V DC 30 Amp 4 Pin General Purpose Heavy Duty Power Relay For Industrial And Automotive Loads UL CUL Safety Certified And VDE Approved Ideal For Machinery Power Distribution Automotive Electronics Control Circuits And Industrial Equipment

12V 30A General Purpose Power Relay for Industrial Use
✔️ 12V coil, 30A load, single-pack, UL/CUL, VDE safety

The 832AW-1A-F-C1 is a general-purpose power relay designed to switch high-current loads up to 30A. It’s ideal for machinery power distribution, automotive electronics, HVAC, UPS, and industrial equipment. UL/CUL safety certifications and VDE approval help ensure reliable operation in demanding environments.

✅ Nominal Coil Voltage: 12 VDC
✅ Terminal style: Quick terminal
✅ Contact material: AgSnO alloy
✅ Resistive load: 30A 240VAC
✅ Max. switching current: 30A
✅ Max. switching voltage: 277VAC
✅ Max. switching capacity: 7200VA
✅ Operate time: 20 ms Max.
✅ Release time: 5 ms Max.
✅ Operating ambient temperature: -55°C to 85°C (no freezing)
✅ Weight: Approx. 38 g
✅ Package Content: 1 x 832AW-1A-F-C1 12VDC
✅ Caution: Do not exceed coil rating, contact rating, or life expectancy, or risk overheating

💡 What is a 12V DC general purpose relay used for in industrial and automotive power systems?

It’s handy for controlling high-current loads from a low-voltage control signal. Here are a few handy notes:

- Great for HVAC, UPS, and power distribution controls - Handy in automotive electronics and machinery control circuits - Safety certified: UL/CUL and VDE approvals for reliability - Wide operating temperature range supports harsh environments
