16 Channel PWM Servo Driver Module With I2C Control For Quick Plug And Play Setup 12 Bit Resolution 40 To 1000 Hz Frequency Compatible With Arduino Raspberry Pi MG90S SG90 MG995 Servos 2 Pack

16-Channel I2C PWM Servo Driver for Arduino Raspberry ✔️ I2C control of 16 channels, 12-bit PWM, 40-1000 Hz, 2 Pack

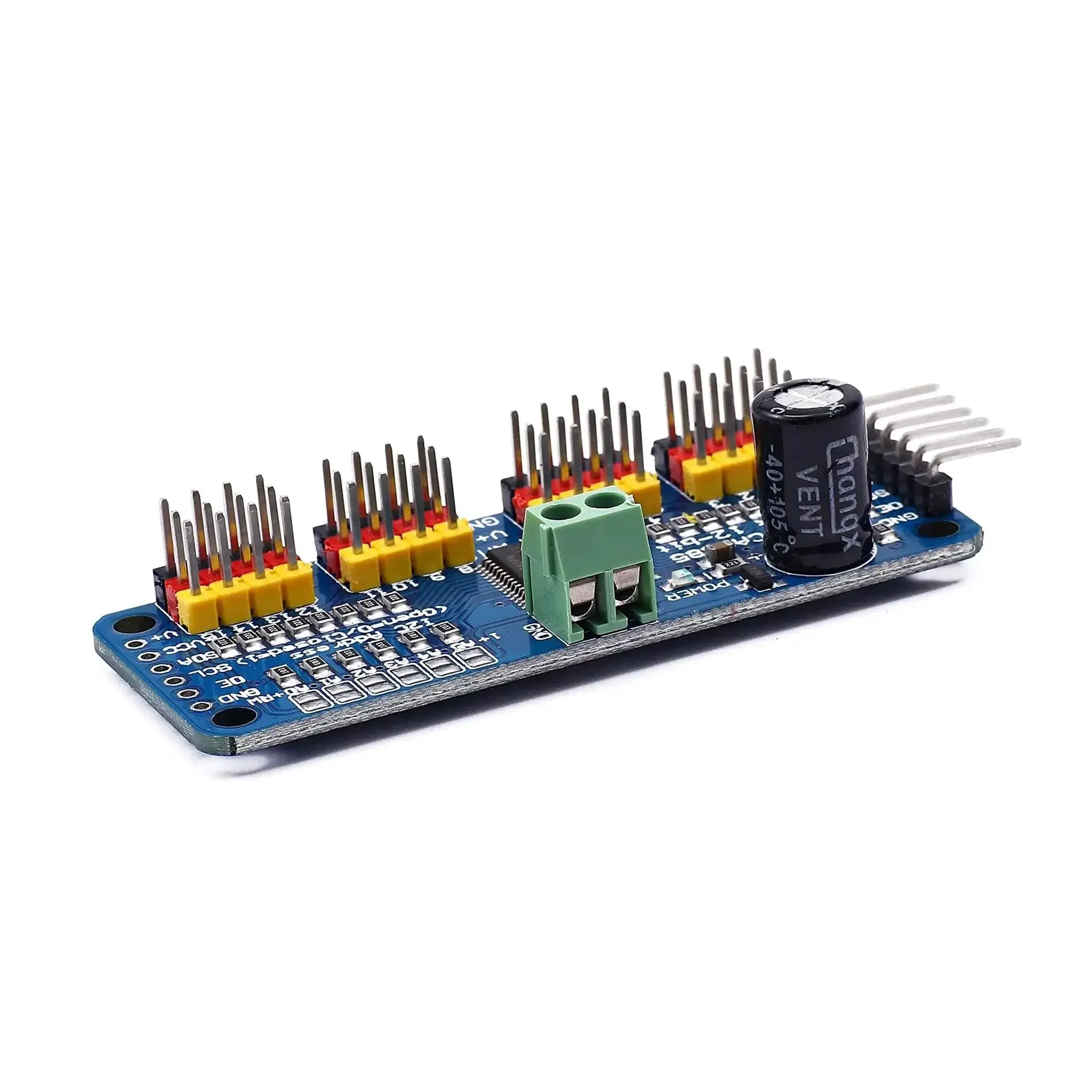

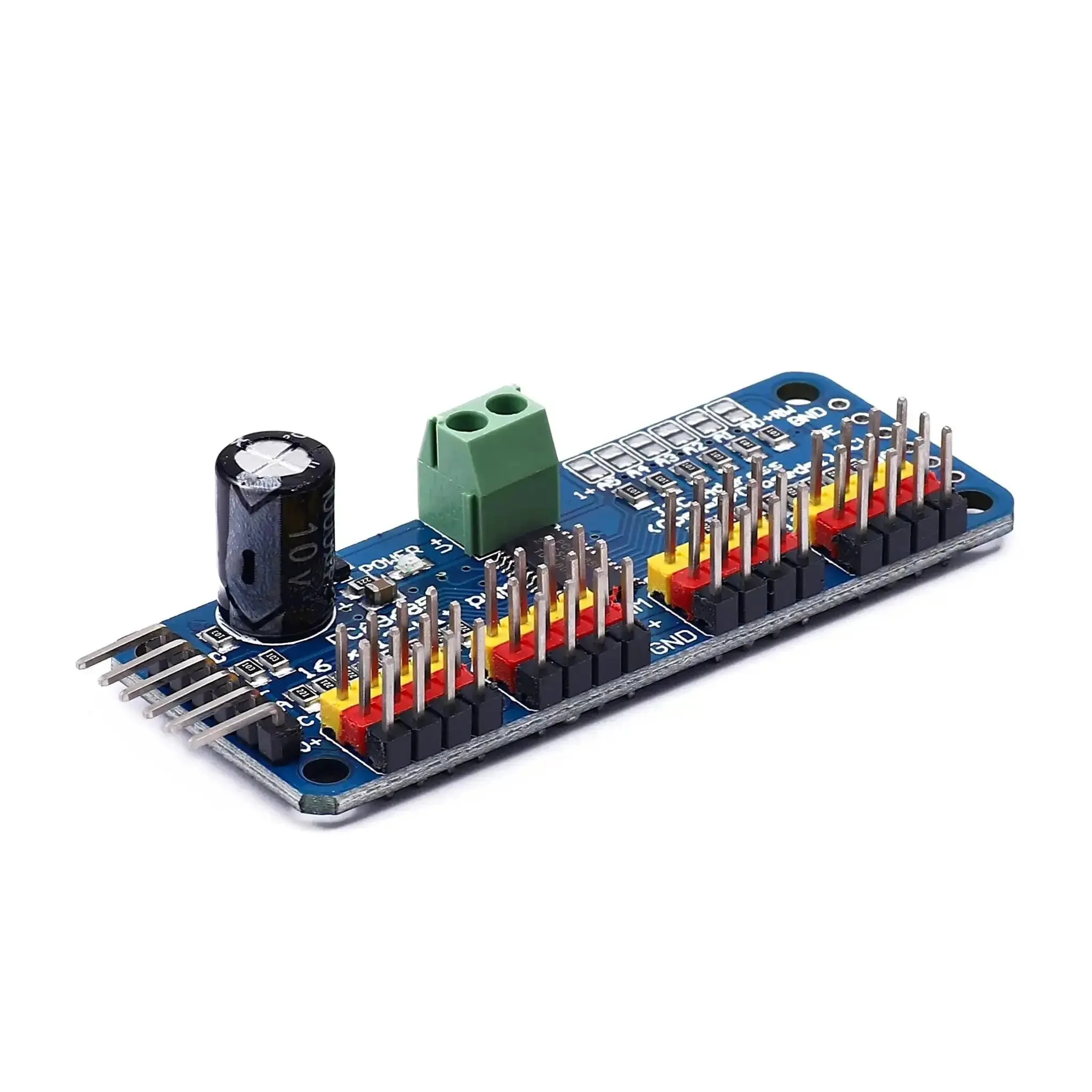

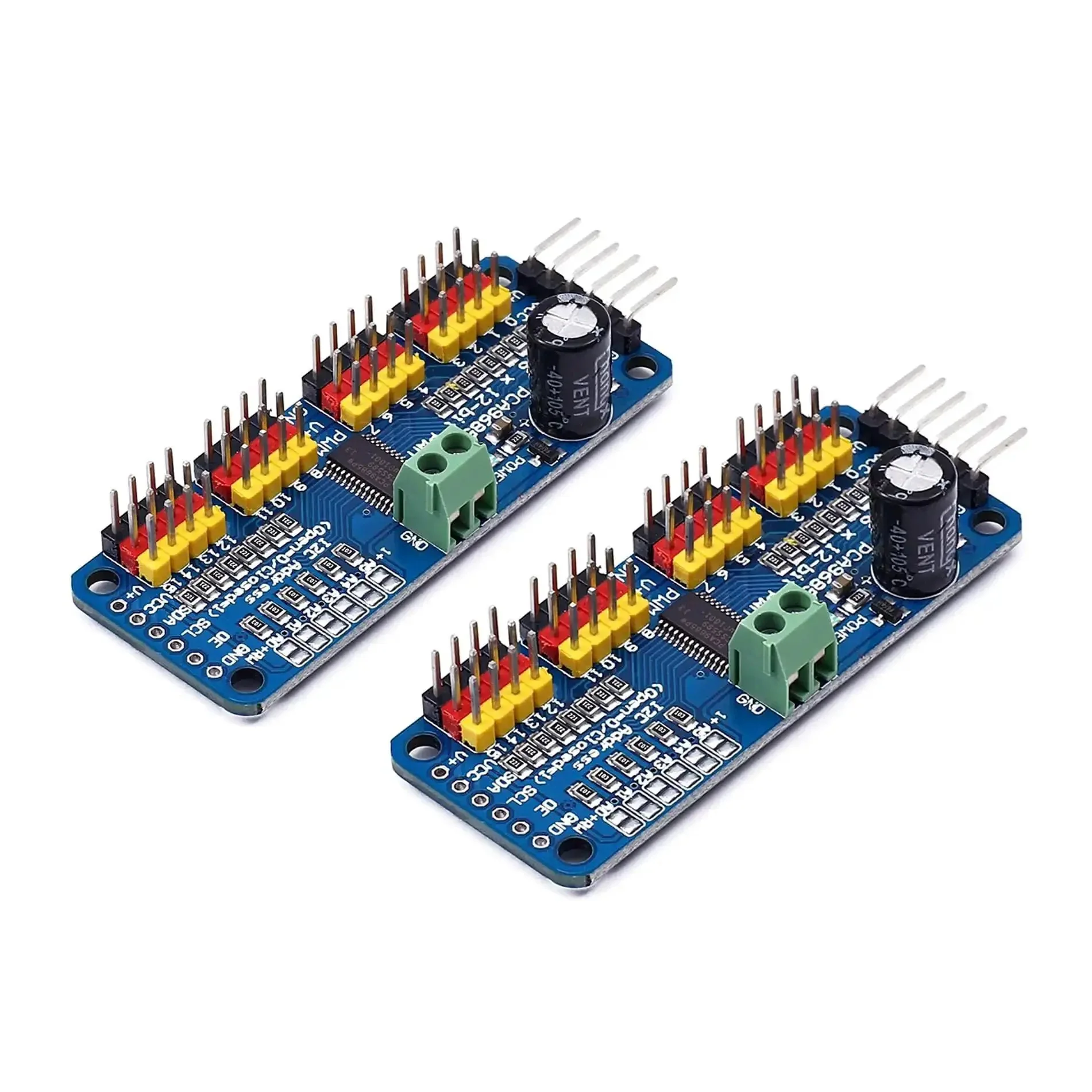

Compact 16 channel PWM servo driver module using the PCA9685 IC to generate 16 independent PWM signals from a single I2C bus. It is ideal for Arduino, Raspberry Pi, and robotics projects that call for coordinated servo movement with clean wiring.

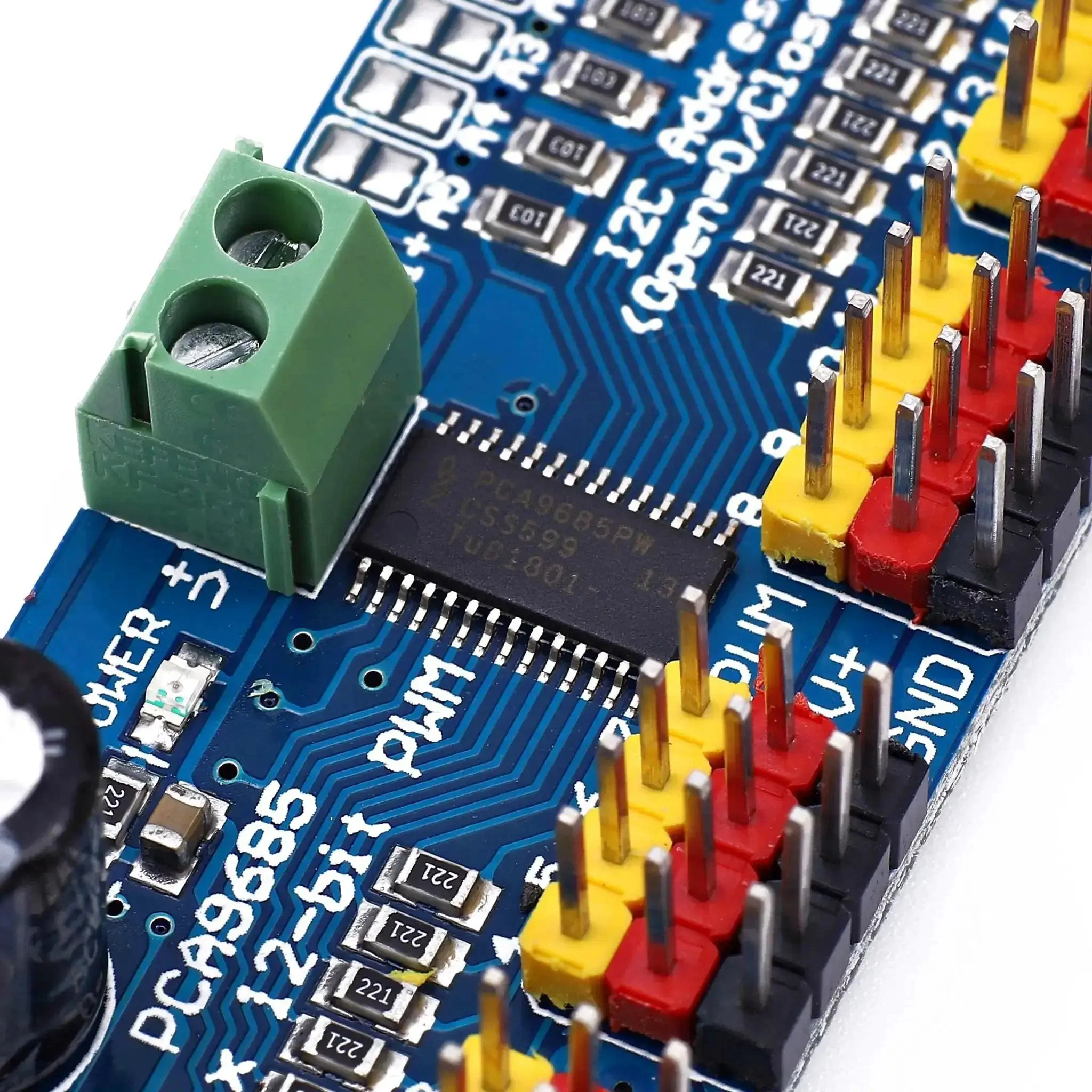

✅ 16-channel PWM outputs via I2C with PCA9685 chip
✅ 12-bit resolution and PWM frequency range 40-1000 Hz
✅ DC 5-10 V operation; 60x25 mm footprint (2.36 x 0.98 in)
✅ 4 groups of 3-pin servo connectors for 16 channels
✅ 220 ohm resistors on all outputs for simple protection

💡 What is a PWM servo driver used for and why control it with I2C?

It lets you drive many hobby servos from a single microcontroller with minimal wiring. I2C keeps the setup compact and scalable.

• Handy for robotics, RC projects, and automation with synchronized servo actions
• I2C interface reduces wiring and simplifies bus addressing across multiple devices
• 12-bit PWM provides smooth, precise servo positioning on all 16 channels
• Compatible with MG90S, SG90, MG995 servos for quick plug-and-play use
