16mm 1610 CNC Ball Screw With Anti Backlash Nut For Linear Motion 1500mm 59.06 Inch Shaft Includes BK12 BF12 End Supports Coupler And DSG Nut Housing

16mm SFU1610 CNC Ball Screw with Anti-Backlash Nut 1500mm
✔️ 1500mm length, 16mm dia, anti-backlash nut, complete kit

The SFU1610 16mm CNC ball screw with anti-backlash nut is a high-precision linear motion component used in CNC routers, milling machines, and automation systems. This full kit includes BK12/BF12 bearing end supports with locknuts and circlips, a coupling, and a DSG nut housing, offering a ready-to-install transmission for reliable, repeatable motion. The default motor shaft bore is 6.35mm; if you need a different bore, tell us and we will customize it free. The package includes 1x SFU1610 ball screw 1500mm, 1x ball screw nut, 2x BK12/BF12 end supports, 1x coupling, and 1x DSG nut housing.

✅ Ball screw diameter: 16 mm; Pitch: 5 mm; Lead: 10 mm; Length: 1500 mm (59.06") Travel length: 1383 mm (54.45") Thread length: 1435 mm (56.54")
✅ Anti-backlash performance improves accuracy and life by minimizing play under load
✅ Smooth, low-friction operation with reduced heat and starting torque for high-speed and precise micro-feeding

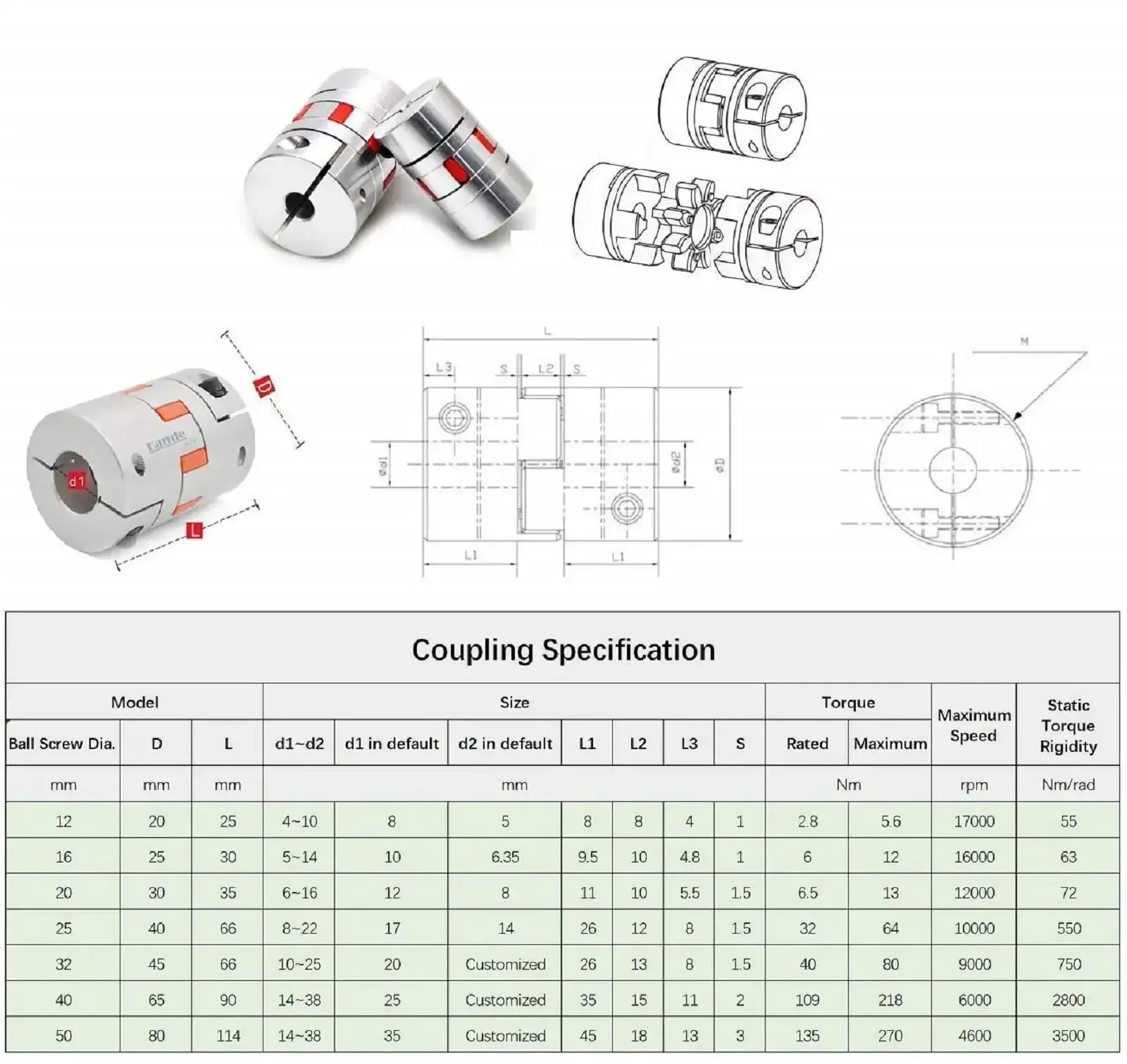

✅ End supports BK12/BF12 with locknuts and circlips, plus coupling and DSG nut housing

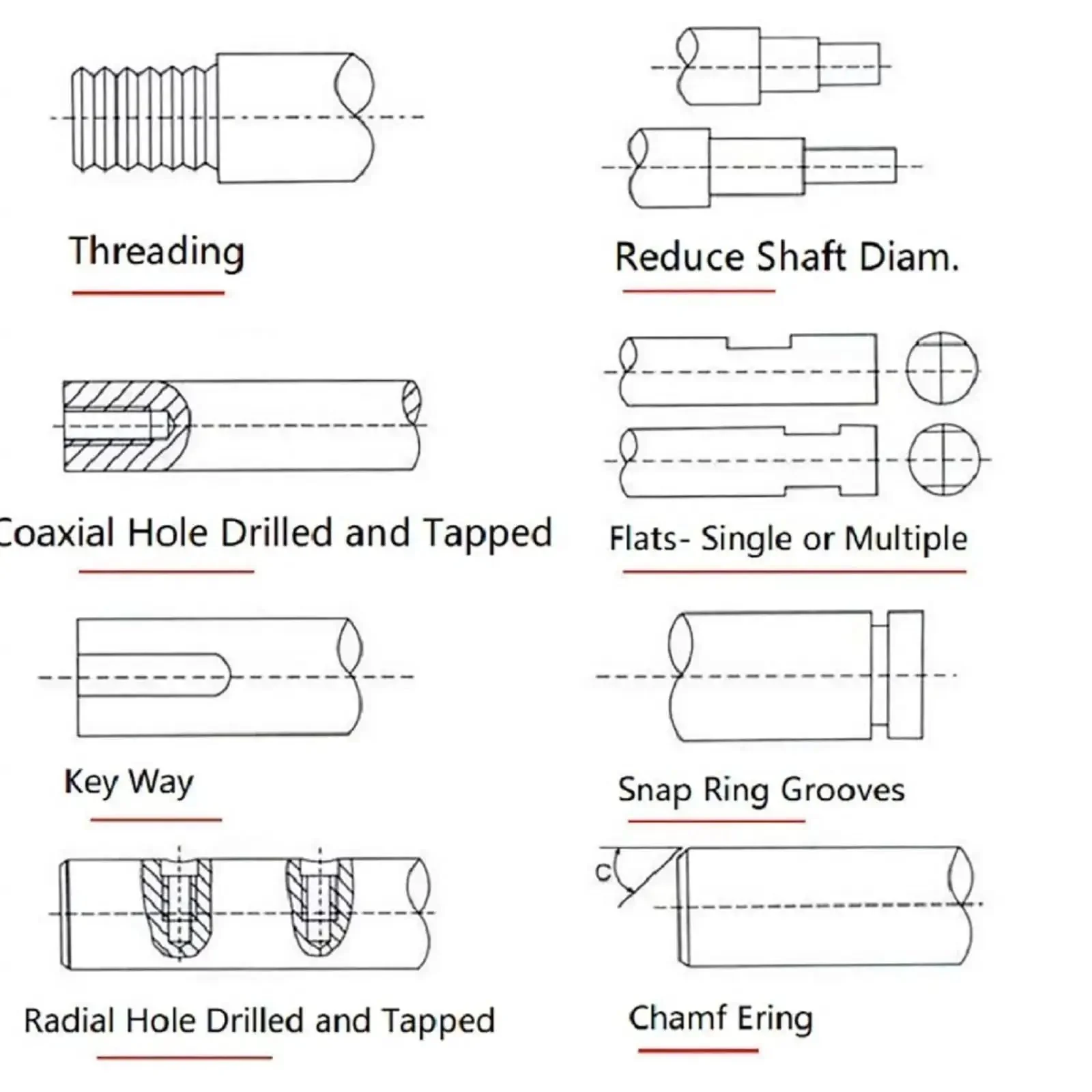

✅ Custom lengths and end machining available; right-hand default, left-hand option on request

Parameter	Metric	Imperial
Diameter	16 mm	0.63 in
Pitch	5 mm	0.197 in
Lead	10 mm	0.394 in
Length	1500 mm	59.06 in
Travel length	1383 mm	54.45 in
Thread length	1435 mm	56.54 in

The default is a right-hand ball screw, with options for left-hand machining on request. This setup is ideal for sealed ball bearing end supports and forms a solid part of a linear slide unit or CNC transmission system. CAD and 3D STEP files are available to help you design your kit and integrate it smoothly into your build.

💡 What is a CNC ball screw with anti-backlash nut used for?

It’s a handy choice for precise, repeatable linear motion in CNC projects.

• Converts rotary motion to straight-line movement with minimal play for repeatable cuts
• Anti-backlash nut reduces backlash under load for dependable positioning
• Pairs with standard BK12/BF12 end supports and coupling for easy integration
• CAD and 3D STEP files help you design and implement quickly
