16mm Ball Screw SFS1610 High Speed Silent Anti Backlash Linear Motion With 2250mm Length Pro Grade Precision, Standard End Machining BK12 BF12 Bearing End Supports Coupler Included

16mm Ball Screw SFS1610: High-Speed Anti-Backlash, 2250mm
✔️ 2250mm total length, 16mm dia, 10mm lead, ends BK12/BF12 included

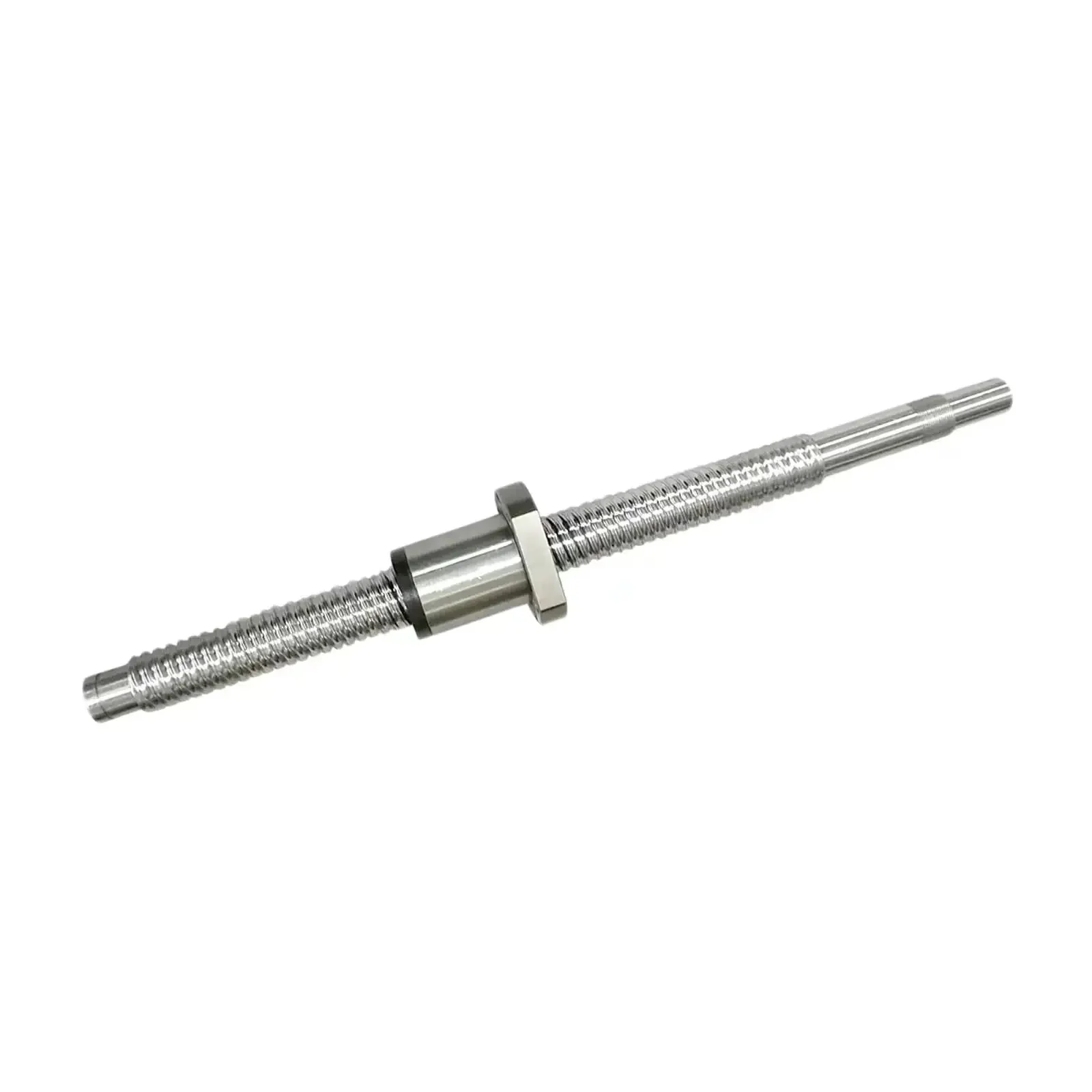

The SFS1610 is a precision 16 mm ball screw with 10 mm lead, designed for high speed linear motion with anti-backlash. This complete kit includes 1x SFS1610 rod (2250 mm), 1x Ball Screw Nut, 1x BK12 fixed bearing end support, 1x BF12 floating end support, and a flexible coupler. Standard end machining is included; motor shaft bore is 8 mm by default but can be customized. Precision class is C7; material is GCr15 steel. It features dust prevention and lubrication for quiet operation, zero-backlash nut for improved positioning accuracy and longer life. CAD drawings and 3D modeling files are available on request to help with integration.

Dimension	Metric	Inches
Ball Screw diameter	16 mm	0.63 in
Lead	10 mm	0.394 in
Total length	2250 mm	88.58 in

✅ Ball screw diameter 16 mm, lead 10 mm, rolled thread, C7 precision

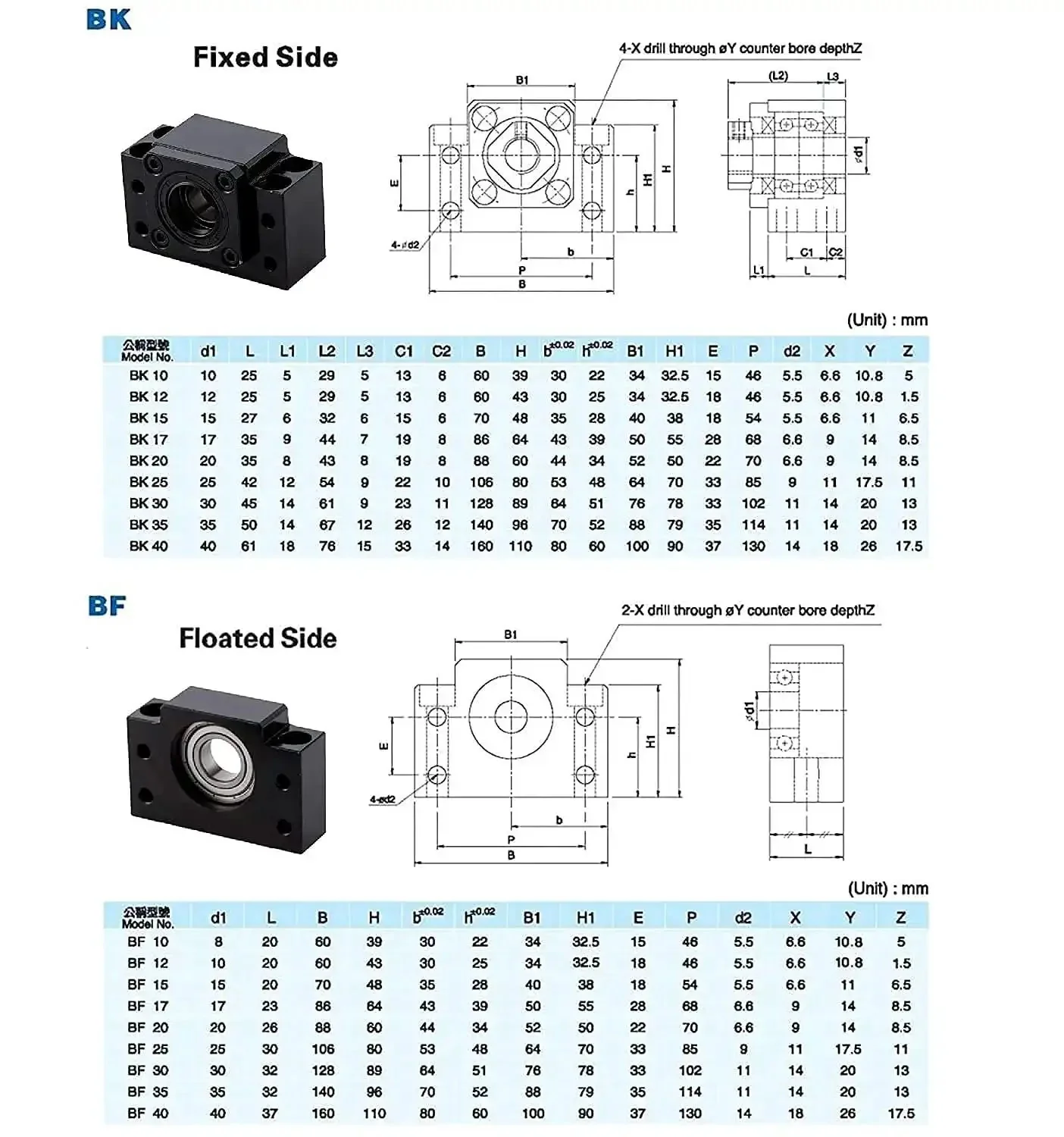

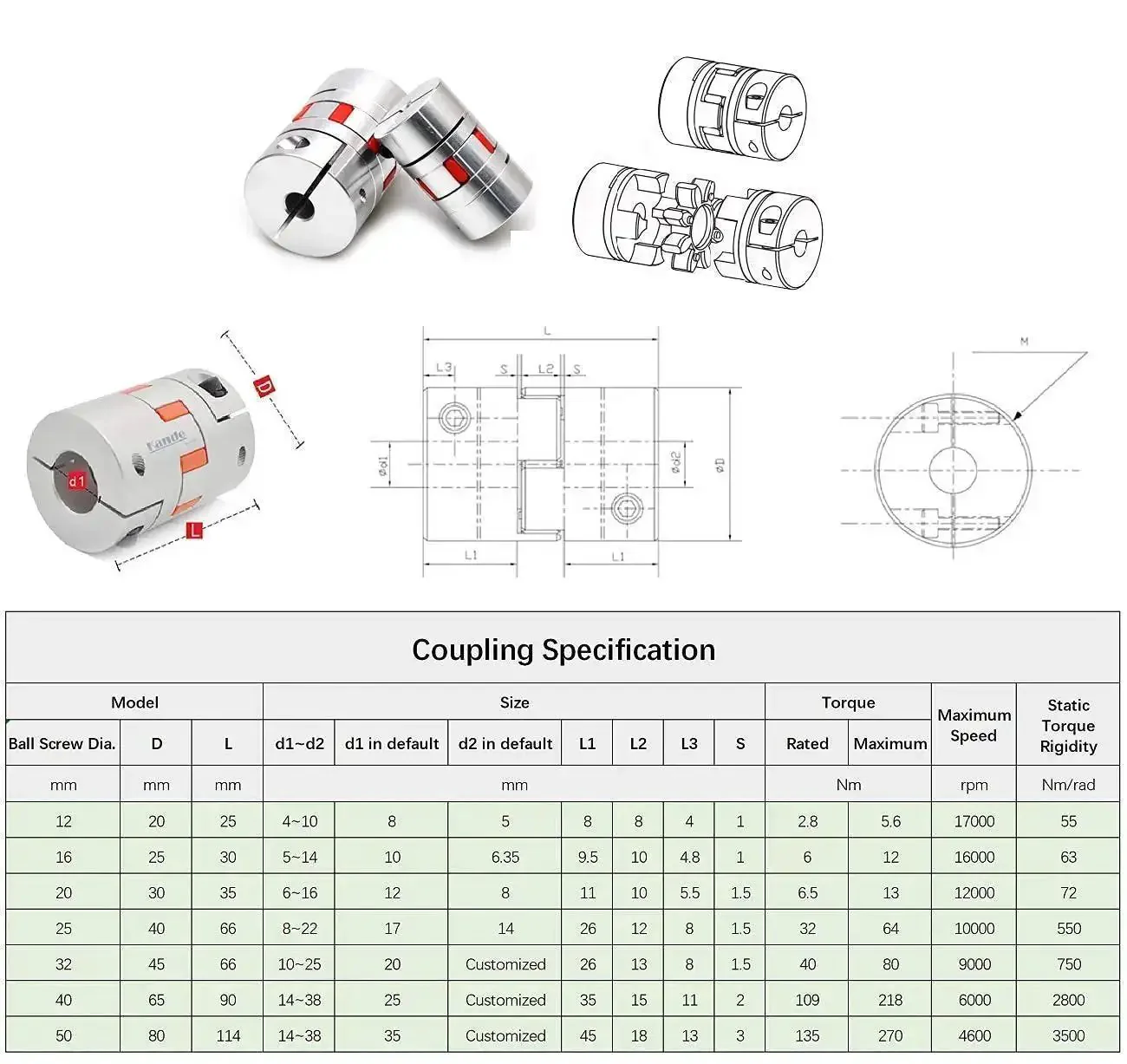

✅ Kit includes SFS1610 rod, nut, BK12 fixed end, BF12 floating end, and a flexible coupler
✅ Standard end machining included; motor shaft bore default 8 mm, customizable
✅ Dust sealing and lubrication reduce friction for quiet, smooth operation at high speed
✅ Zero-backlash nut enhances positioning accuracy and life

💡 What is a precision ball screw assembly used for in CNC machines and automation setups? This handy overview explains its role in automatic motion systems.

- High stiffness and precise linear motion for CNC machines, robotics, and automation - Zero-backlash nut for repeatable positioning and accuracy - Low friction design enables quiet, smooth, and fast operation - Customizable lengths and end machining to fit different machines
