2 Pole 500V 63 Amp DC Circuit Breaker Isolator For Solar PV System With Thermal Magnetic Trip And DIN Rail Mount Rock Solid Reliability Power Protector For Overload And Short Circuit Prevention In Industrial And Info Tech

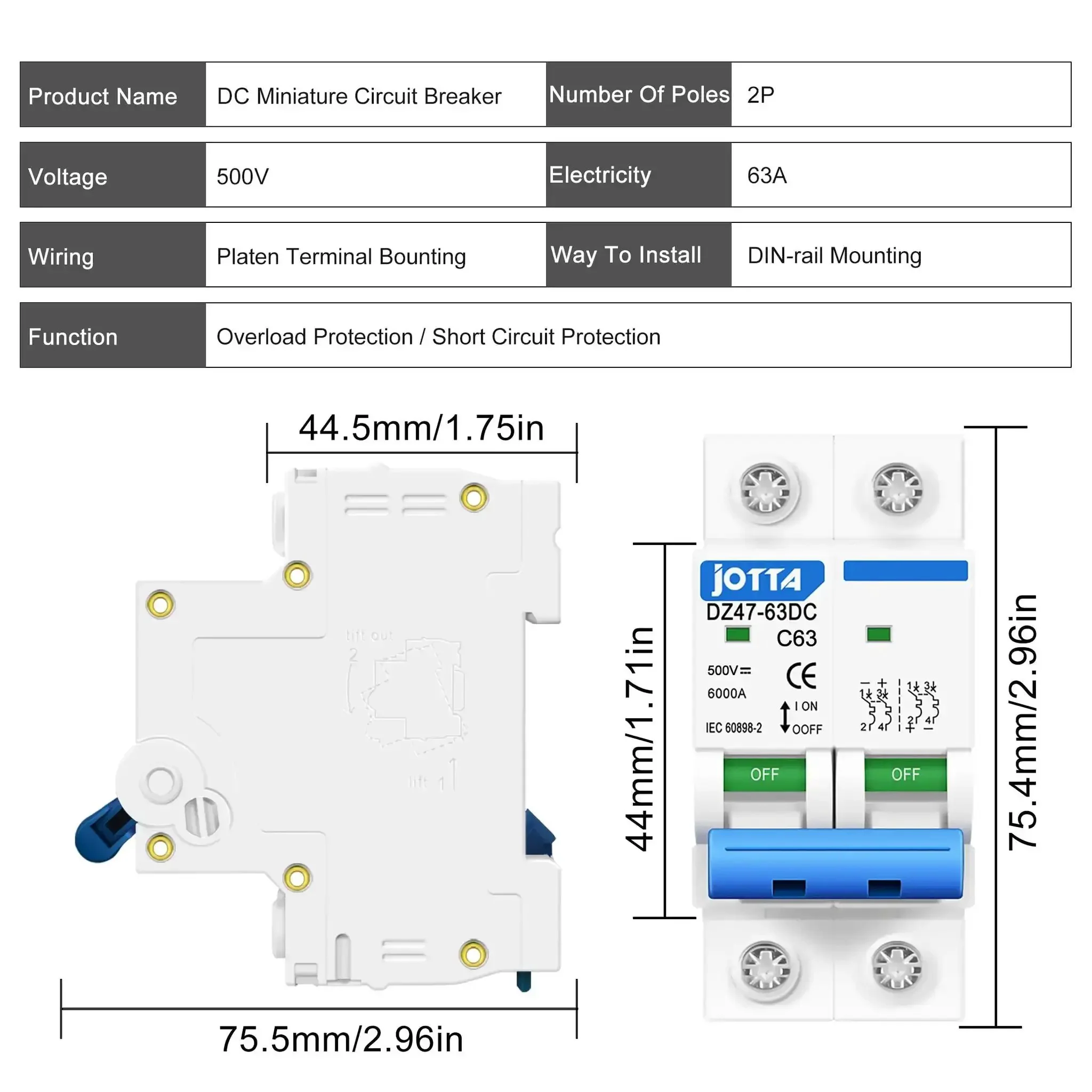

High-Current DC Breaker, 2-Pole, 63A, 500V, DIN Rail, single

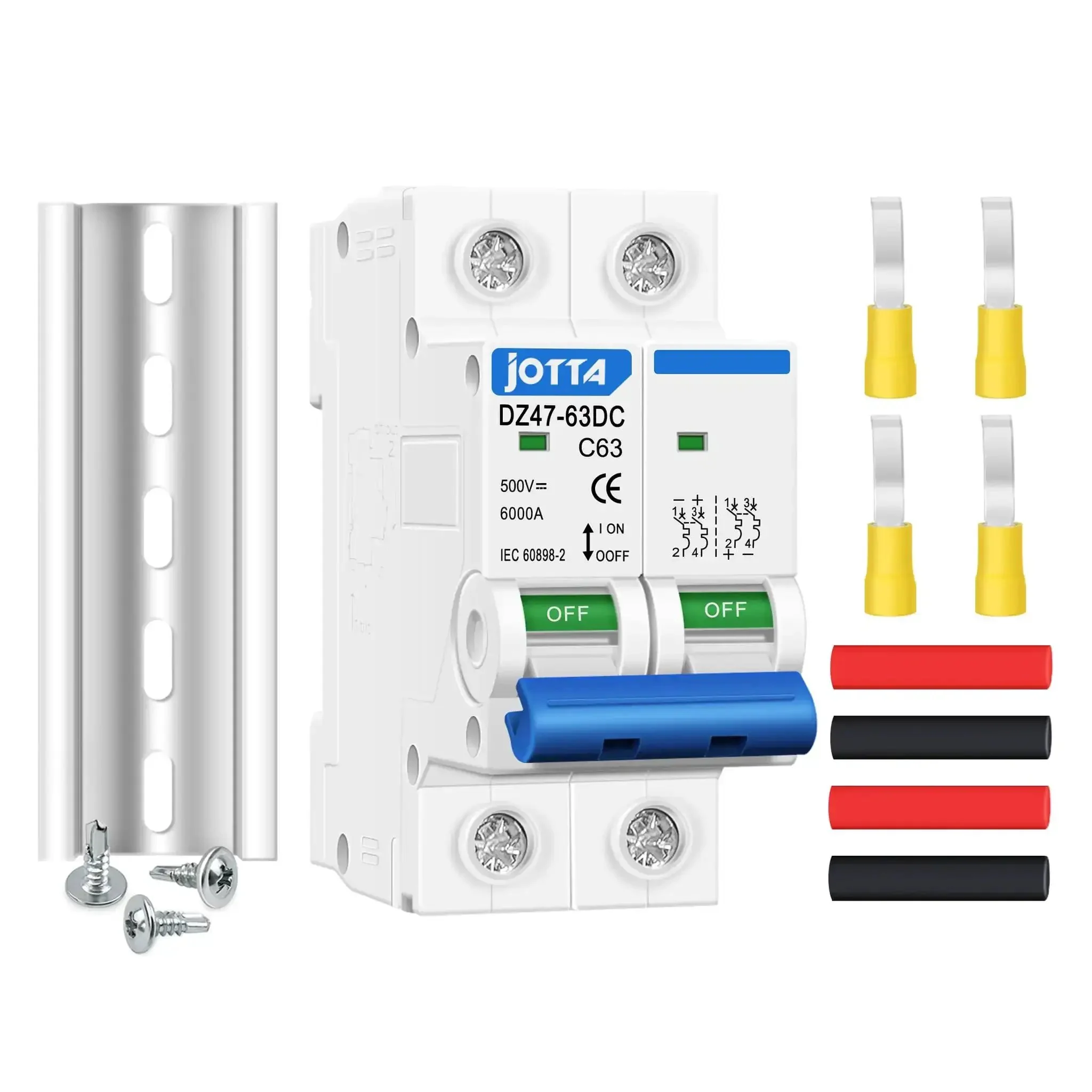

✔️ 2 Pole 500V 63A DC Breaker with 35mm DIN rail mount, single unit

Designed to protect DC power distribution in solar PV systems, UPS, EPS, rail systems, ships, and industrial controls. It combines current-limiting performance with an arc-extinguishing mechanism for fast fault clearance.

✅ Voltage rating: 500V DC
✅ Current rating: 63A
✅ 2-pole configuration with 35mm DIN rail mounting
✅ Thermal-magnetic trip with arc-extinguishing system
✅ Applications include solar PV, UPS, EPS, rail, and marine power systems

💡 What is a DC circuit breaker used for in solar and industrial power systems?
It's handy for protecting DC power rails from overloads and short circuits.
1) It protects DC rails in solar PV, UPS, EPS, and rail systems
2) It quickly interrupts fault currents with arc extinguishing and current-limiting action
3) It simplifies panel wiring with DIN rail mounting
