22mm Red Mushroom Emergency Stop Button Switch IP65 Waterproof SPDT With 1NO 1NC Contacts 10A 600V Push To Lock Turn To Release Self Locking Heavy Duty Outdoor Use Tough As Nails

IP65 22mm Red Mushroom Emergency Stop Switch, Pack 1
✔️ 22mm mushroom EM stop, IP65, SPDT 1NO1NC, 10A/600V push-lock

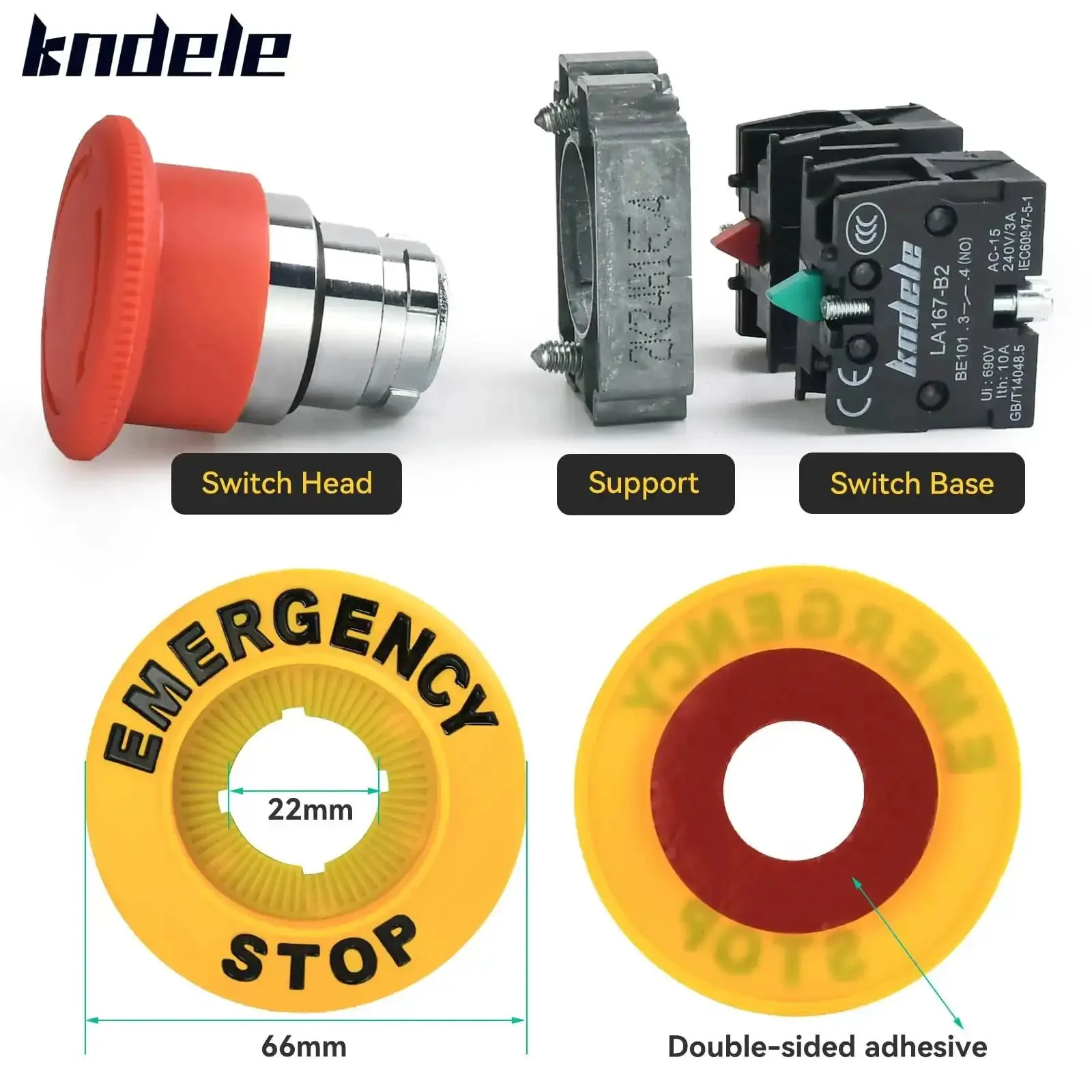

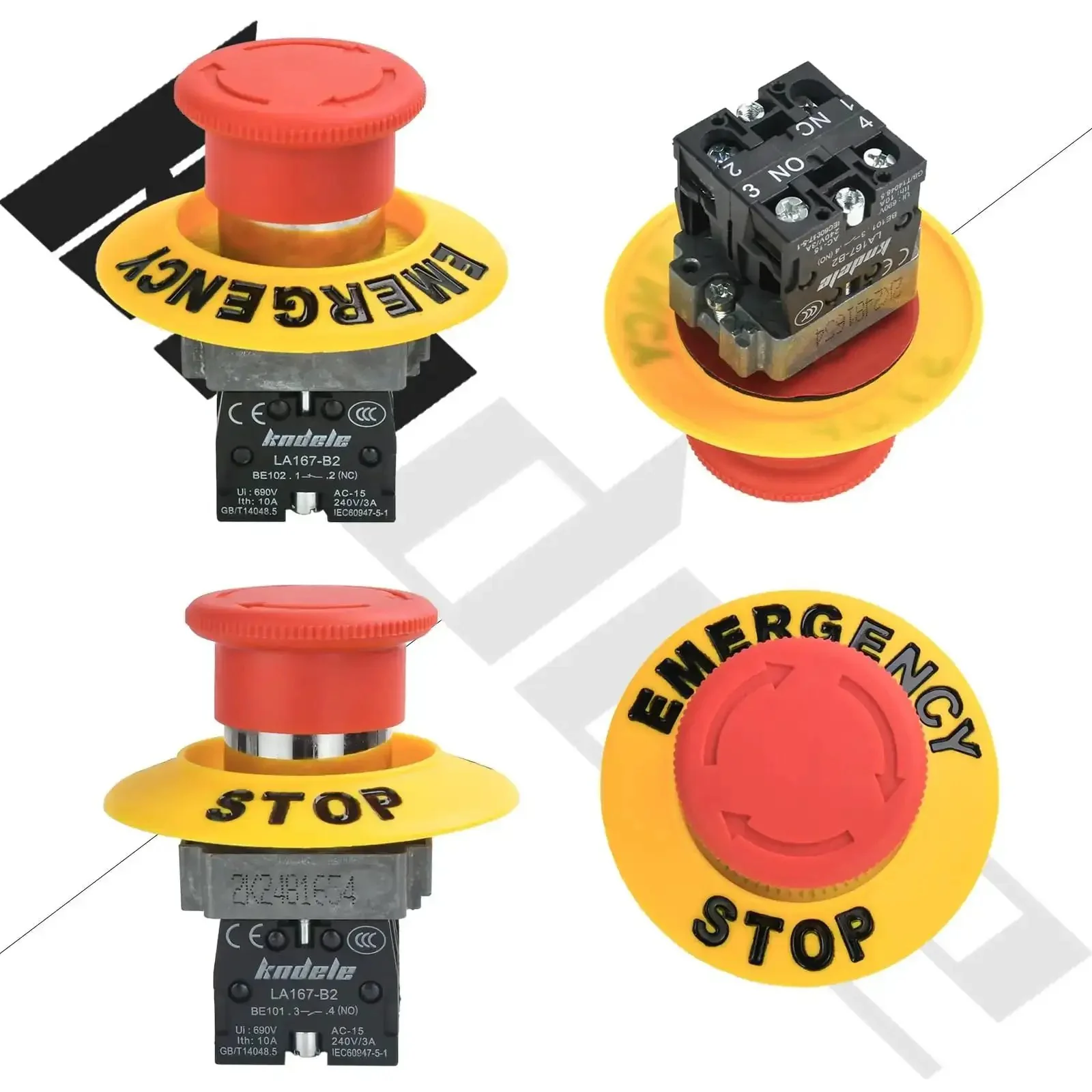

This rugged 22mm mushroom emergency stop push button is built for harsh environments and outdoor equipment. It uses SPDT contacts (1NO + 1NC) with a self-locking push-to-lock and turn-to-release mechanism for a reliable stop. The IP65 rating protects against dust and water, making it suitable for outdoor use and rough industrial sites. Pack includes 1 emergency stop push button switch and 1 yellow warning sign for clear safety indication.

✅ Mounting hole size 22 mm (0.87 in) and panel thickness up to 6 mm
✅ SPDT contact: 1NO + 1NC; 4 terminals total
✅ Rating: 10 A at 600 V
✅ Push-to-lock, turn-to-release self-locking mechanism
✅ Head diameter 29 mm; 40 mm button head (1.14 in / 1.57 in)
✅ IP65 waterproof for outdoor use
✅ Materials: plastic and metal; red switch with yellow warning sign

💡 What is an emergency stop switch used for in industrial equipment?

This handy safety device is designed to quickly halt machinery during emergencies.

- Provides a fast, clearly visible shut-off for power and motion control - SPDT contacts (1NO + 1NC) enable safe wiring options - IP65-rated for outdoor and dusty environments - Commonly used on conveyors, presses, and outdoor machinery
