30 Amp Two Pole Solar Disconnect Switch With DIN Rail Mount For 12V 24V 48V And 400V Systems AC DC Circuit Breaker RV Battery Isolator PV Array MCB Thermal Magnetic Trip Arc Squelching Magnet
30 Amp Two Pole Solar Disconnect Switch With DIN Rail Mount For 12V 24V 48V And 400V Systems AC DC Circuit Breaker RV Battery Isolator PV Array MCB Thermal Magnetic Trip Arc Squelching Magnet
The Story
✔️ 30A 2-pole DIN rail mount with arc quenching magnet
This 30 Amp two pole solar disconnect switch provides reliable protection and isolation for DC and AC circuits in solar power setups. It supports 48~500V DC or 90~480V AC and is commonly used with PV arrays, charge controllers, batteries, and inverters, as well as RV and home electrical systems. The unit ships with 1 x DIN rail, 2 x screws, and 4 x copper crimp terminals for quick wiring. The enclosure measures 54mm x 80mm x 75mm and fits 35mm DIN rails.
✅ 30A current rating, two-pole design for DC/AC protection
✅ 54mm x 80mm x 75mm enclosure fits 35mm DIN rail

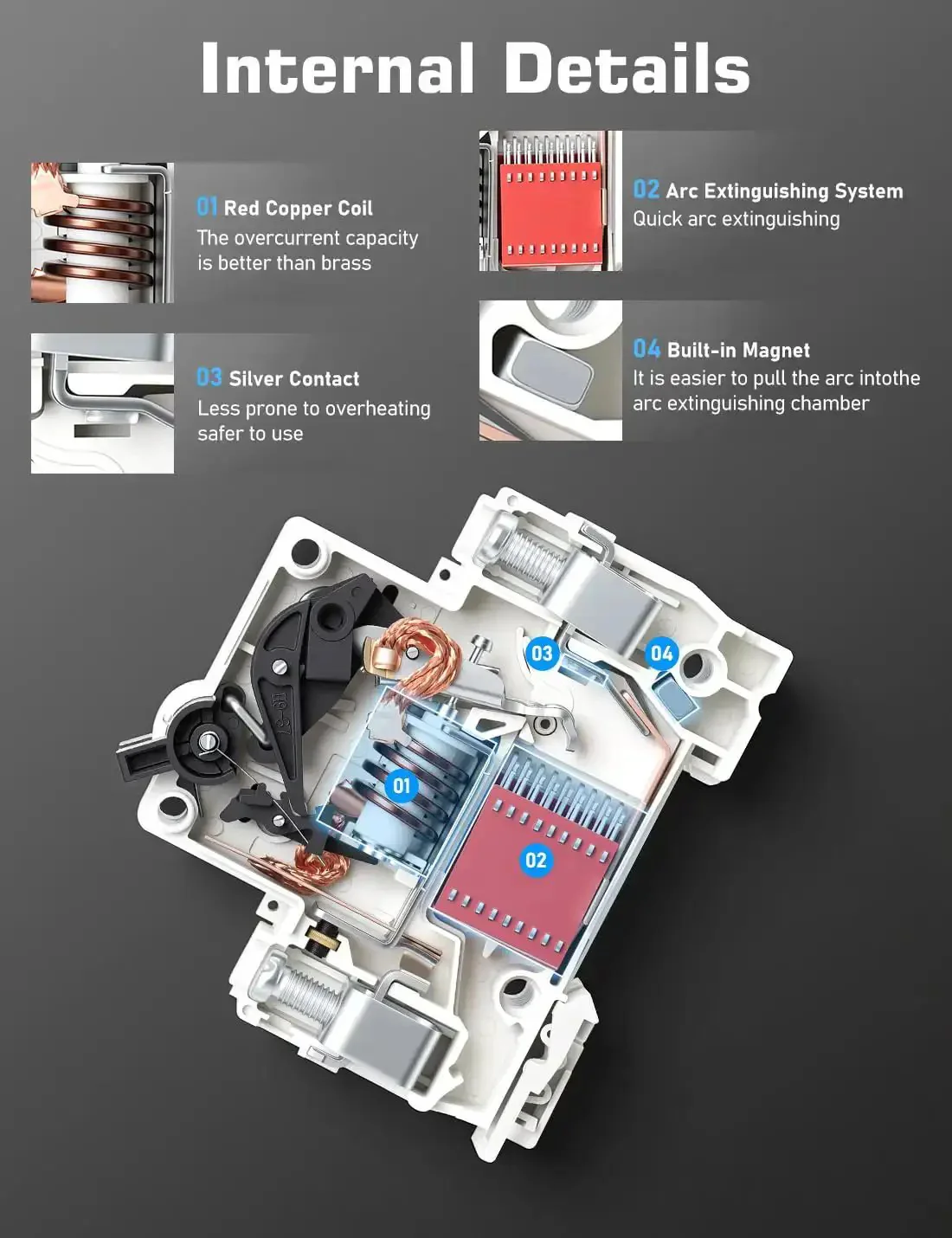

✅ built-in arc squelching magnet for fast arc extinction
✅ silver alloy contacts with pure copper coils for durability
✅ non-polarized wiring simplifies installation in any direction
✅ includes 1 DIN rail, 2 screws, 4 copper crimp terminals
💡 What is a solar disconnect switch used for in a PV system?
This handy device helps safely isolate solar arrays and protect wiring during maintenance and fault conditions.
- Provides overcurrent protection for DC and AC circuits- Enables safe shutdown and service by isolating sources
- Fast electromagnetic trip limits arc flash and equipment damage
- Non-polarized wiring makes wiring flexible and error-free
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
✔️ 30A 2-pole DIN rail mount with arc quenching magnet
This 30 Amp two pole solar disconnect switch provides reliable protection and isolation for DC and AC circuits in solar power setups. It supports 48~500V DC or 90~480V AC and is commonly used with PV arrays, charge controllers, batteries, and inverters, as well as RV and home electrical systems. The unit ships with 1 x DIN rail, 2 x screws, and 4 x copper crimp terminals for quick wiring. The enclosure measures 54mm x 80mm x 75mm and fits 35mm DIN rails.
✅ 30A current rating, two-pole design for DC/AC protection
✅ 54mm x 80mm x 75mm enclosure fits 35mm DIN rail
✅ built-in arc squelching magnet for fast arc extinction
✅ silver alloy contacts with pure copper coils for durability
✅ non-polarized wiring simplifies installation in any direction
✅ includes 1 DIN rail, 2 screws, 4 copper crimp terminals
💡 What is a solar disconnect switch used for in a PV system?
This handy device helps safely isolate solar arrays and protect wiring during maintenance and fault conditions.
- Provides overcurrent protection for DC and AC circuits- Enables safe shutdown and service by isolating sources
- Fast electromagnetic trip limits arc flash and equipment damage
- Non-polarized wiring makes wiring flexible and error-free
