4 Pack 90 Degree Gusseted Fitting For 1-5/8 Inch Strut Channel Electro-Galvanized Corner Brackets 7 Hole Pattern Seven Thirty-Second Inch Thick Low Carbon Steel Silver Finish Heavy-Duty Rock-Solid Easy Install For Industrial Framing

4-Pack 90° Gusset Fittings for 1-5/8 Inch Strut Channel
✔️ Heavy-duty electro-galvanized steel, 7-hole pattern, 9/16" bolt holes

These four corner brackets reinforce 90-degree joints in industrial frames using 1-5/8" strut channels. The electro-galvanized finish resists corrosion in harsh environments, making them ideal for warehouses, manufacturing floors, and shop setups. See the quick dimensions table below for planning and accuracy.

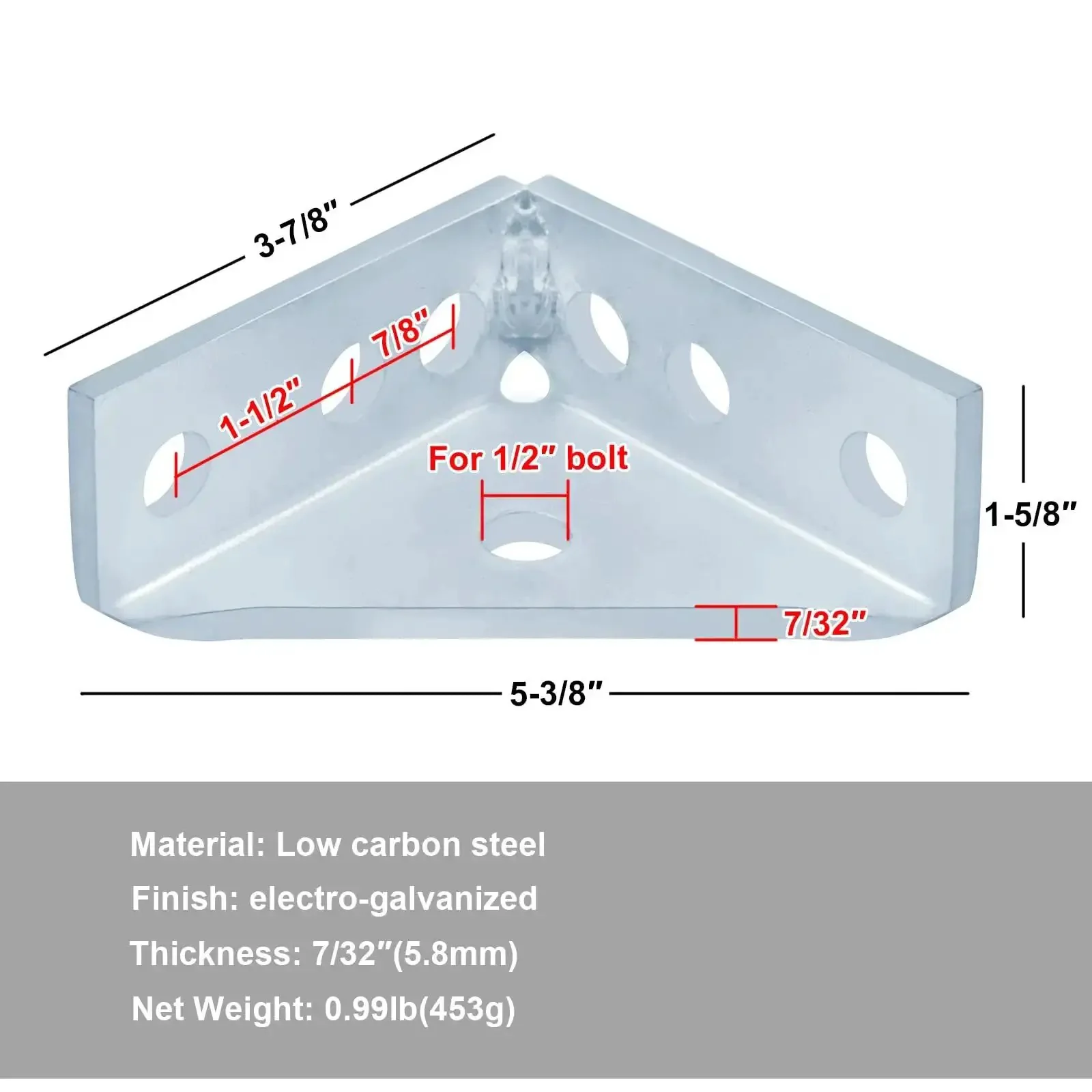

Dimension	Imperial	Metric
Channel width	1-5/8"	41.3 mm
Thickness	7/32"	5.56 mm
Hole diameter	9/16"	14.3 mm
Hole spacing (on center)	7/8" and 1-1/2"	22.2 mm and 38.1 mm

These 4 corner gusset brackets are designed to reinforce 90-degree joints in industrial framing that uses 1-5/8" strut channels. The electro-galvanized finish resists corrosion in demanding environments, making them a solid choice for heavy-duty racks, workbenches, and machine frames. Each pack includes four brackets for quick, uniform installation.

✅ 7-hole gusset angle bracket with 9/16" bolt holes
✅ Fits 1-5/8" channel width (41.3 mm)
✅ Thickness 7/32" (5.56 mm)
✅ Material: low carbon steel, electro-galvanized finish
✅ Pack: 4 pieces
✅ Silver finish for corrosion resistance

💡 What is a handy use for a 90-degree gusset bracket in metal framing?

Handy reinforcement for frame corners to keep joints square and strong. - Strengthens 90-degree connections - Supports multiple bolt layouts with the 7-hole pattern - Made from electro-galvanized low carbon steel for durability - Compatible with 1-5/8" strut channels
