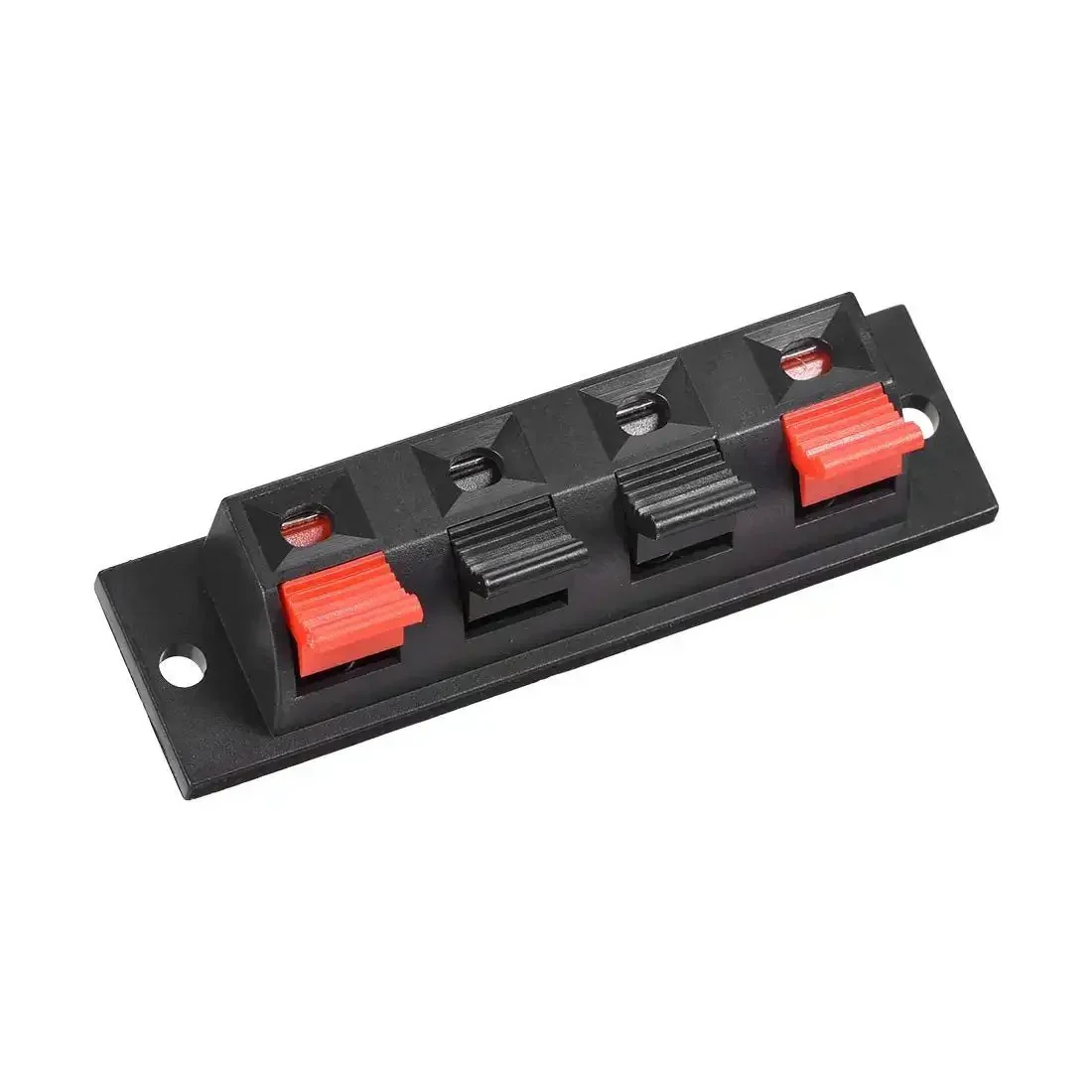

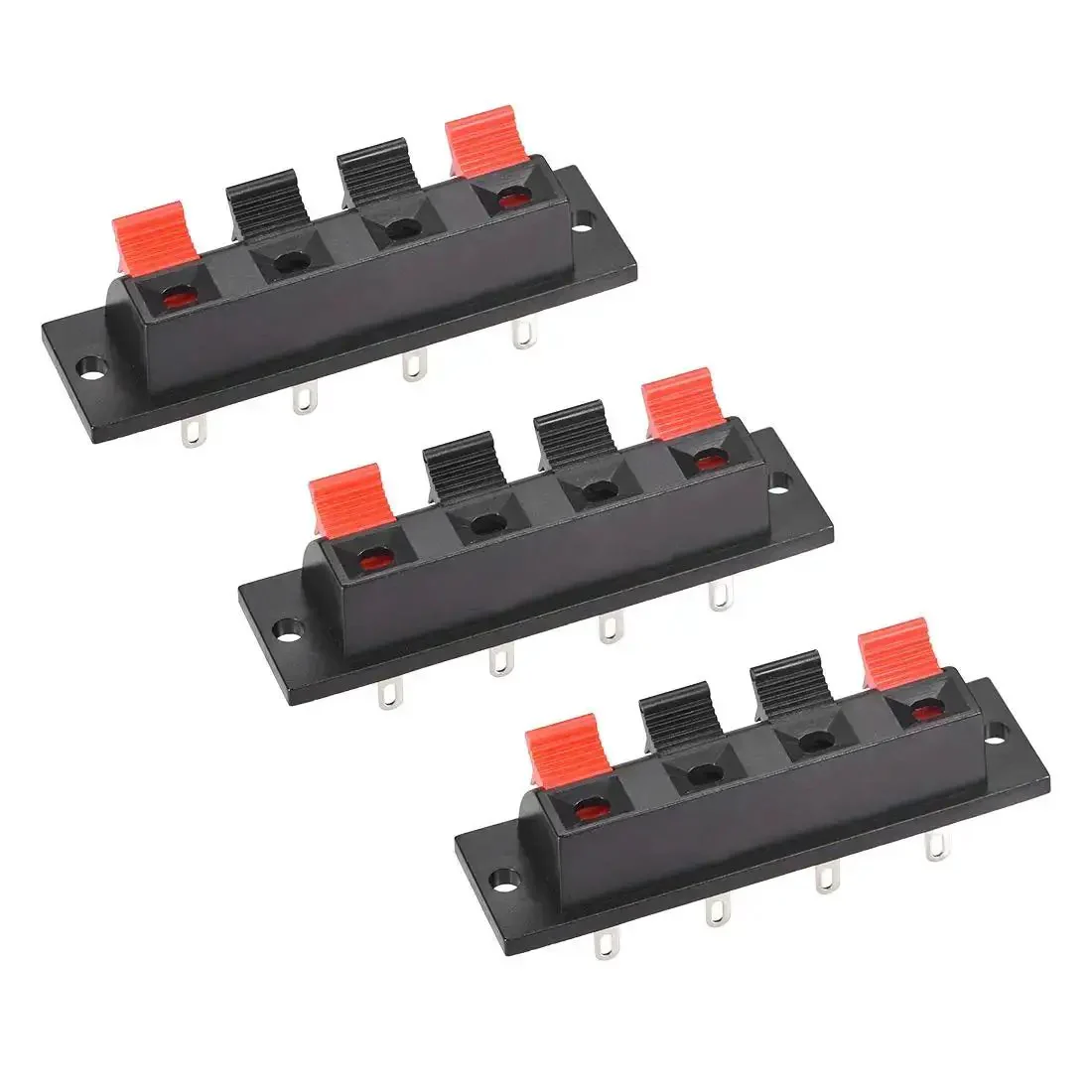

4 Way Spring Loaded Speaker Terminal Clips Push Release Connector Set 3 Pack Wire Terminal Strip Block WP4-7 With Four Pins And Four Positions, Easy Push In For Solid Speaker Hookups, Red Black Polarity Coding For Safe Connections
4 Way Spring Loaded Speaker Terminal Clips Push Release Connector Set 3 Pack Wire Terminal Strip Block WP4-7 With Four Pins And Four Positions, Easy Push In For Solid Speaker Hookups, Red Black Polarity Coding For Safe Connections
The Story
✔️ Four-pin, four-position spring-load design for solid wiring
These four-terminal spring-loaded blocks use a push-in mechanism to clamp speaker wires, delivering a fast, secure connection ideal for DIY audio projects, speaker upgrades, and car stereo installations.
✅ Rated Load: AC 50V / 3A✅ Contact Resistance: ≤ 0.03 Ohm
✅ Insulation Resistance: ≥ 100M Ohm
✅ Actuating Force: 1 Kgf
✅ Fit Cable: AWG24-16
✅ Color Polarity Coding: Red/Black
✅ Size: 64.5mm x 18mm x 26mm (2.54" x 0.71" x 1.02")
✅ Mounting Hole Distance: 58mm / 2.28"
✅ Pin Distance: 13mm / 0.51"
✅ Pin Width: 3mm
✅ Package Contents: 3Pcs x Speaker Terminals, Black
💡 What is a push-in spring-loaded speaker terminal used for in audio projects?
This handy connector lets you quickly lock in speaker wires without soldering, keeping setups tidy and reliable. - Quick, tool-free wiring for DIY installs - Secure connections with low contact resistance - Compatible with AWG24-16 speaker cables - Keeps wiring neat and polarity-coded leads correct
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
✔️ Four-pin, four-position spring-load design for solid wiring
These four-terminal spring-loaded blocks use a push-in mechanism to clamp speaker wires, delivering a fast, secure connection ideal for DIY audio projects, speaker upgrades, and car stereo installations.
✅ Rated Load: AC 50V / 3A✅ Contact Resistance: ≤ 0.03 Ohm
✅ Insulation Resistance: ≥ 100M Ohm
✅ Actuating Force: 1 Kgf
✅ Fit Cable: AWG24-16
✅ Color Polarity Coding: Red/Black
✅ Size: 64.5mm x 18mm x 26mm (2.54" x 0.71" x 1.02")
✅ Mounting Hole Distance: 58mm / 2.28"
✅ Pin Distance: 13mm / 0.51"
✅ Pin Width: 3mm
✅ Package Contents: 3Pcs x Speaker Terminals, Black
💡 What is a push-in spring-loaded speaker terminal used for in audio projects?
This handy connector lets you quickly lock in speaker wires without soldering, keeping setups tidy and reliable. - Quick, tool-free wiring for DIY installs - Secure connections with low contact resistance - Compatible with AWG24-16 speaker cables - Keeps wiring neat and polarity-coded leads correct
