AC Contactor CJX2-1810 3 Pole Normally Open 24V Coil 380V Ue 18A Ie 50/60Hz DIN Rail Mount Heavy Duty Industrial Relay For Control Panels, Motor Startups, Conveyor Systems And Equipment Upgrades

Three-pole AC Contactor with 24V Coil for 380V/18A
✔️ 24V coil, 380V Ue, 18A Ie, 50/60Hz, 35mm DIN rail, single unit

This heavy-duty AC contactor is designed for control panels, motor starters, conveyors, and equipment upgrades. It mounts on a 35 mm DIN rail for quick, secure installation and reliable switching at 380V with up to 18A rated load.

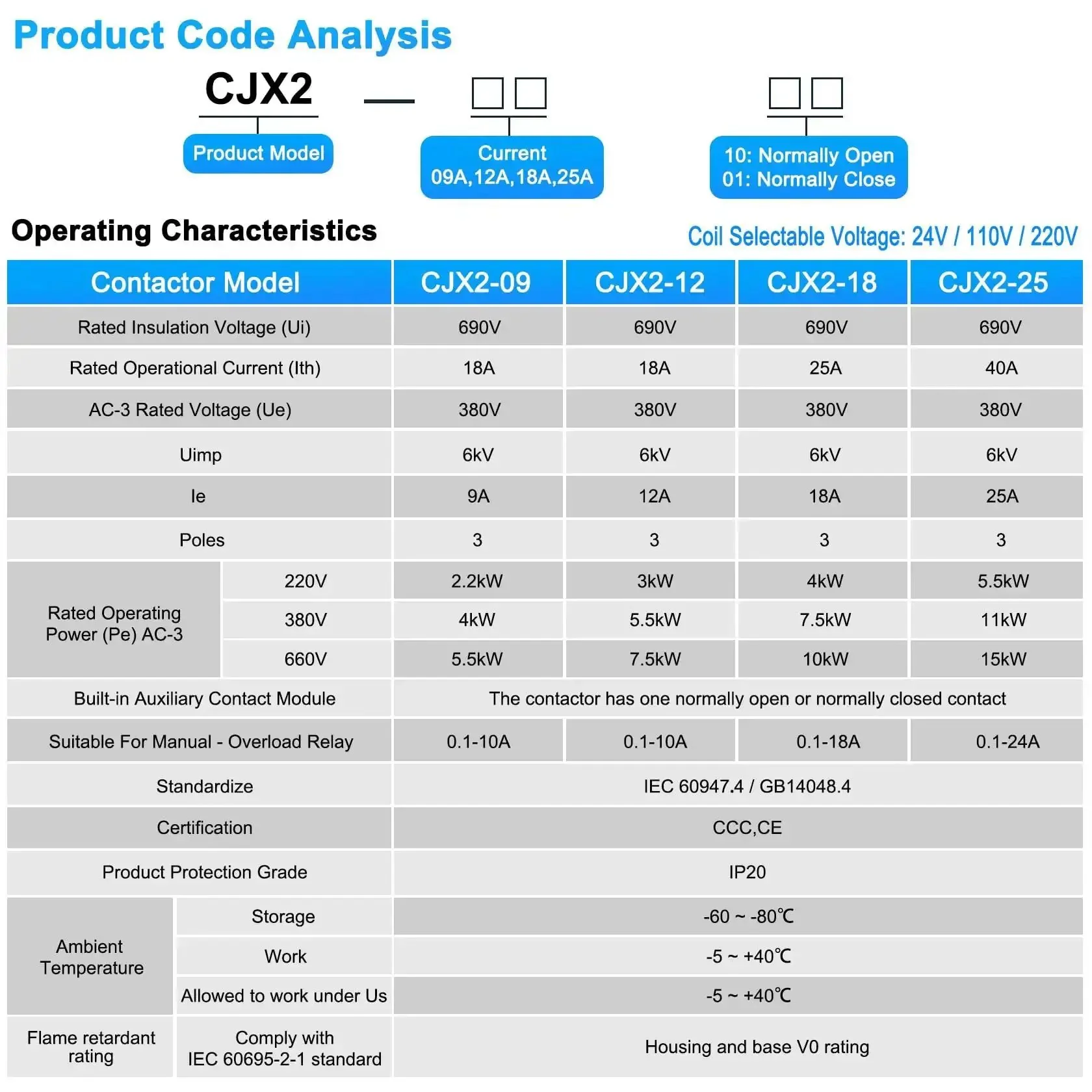

✅ Ue: 380V
✅ Ie: 18A
✅ Ui: 690V
✅ Ith: 25A
✅ Uimp: 6KV
✅ Rated Coil Voltage: AC 24V
✅ Frequency: 50/60Hz
✅ Rail Mounting: 35 mm DIN rail
✅ Total Size: 87 x 47 x 76 mm (L x W x H) / 3.4" x 1.8" x 3"
✅ Net Weight: 346 g
✅ Package Content: 1 x AC Contactor

Dimension	Metric	Imperial
Length (L)	87 mm	3.4 in
Width (W)	47 mm	1.8 in
Height (H)	76 mm	3.0 in

💡 What is an AC contactor used for in industrial equipment?

It’s a handy relay that switches high current loads from a low current control circuit. Handy for automating and protecting equipment in control panels.

• Start and stop motors, conveyors, and other heavy loads from automation controls
• Provide isolation between control circuits and power circuits for safety
• DIN rail mounting keeps panels neat and accessible
• Works reliably with 50/60 Hz electrical systems and 24V coil control
