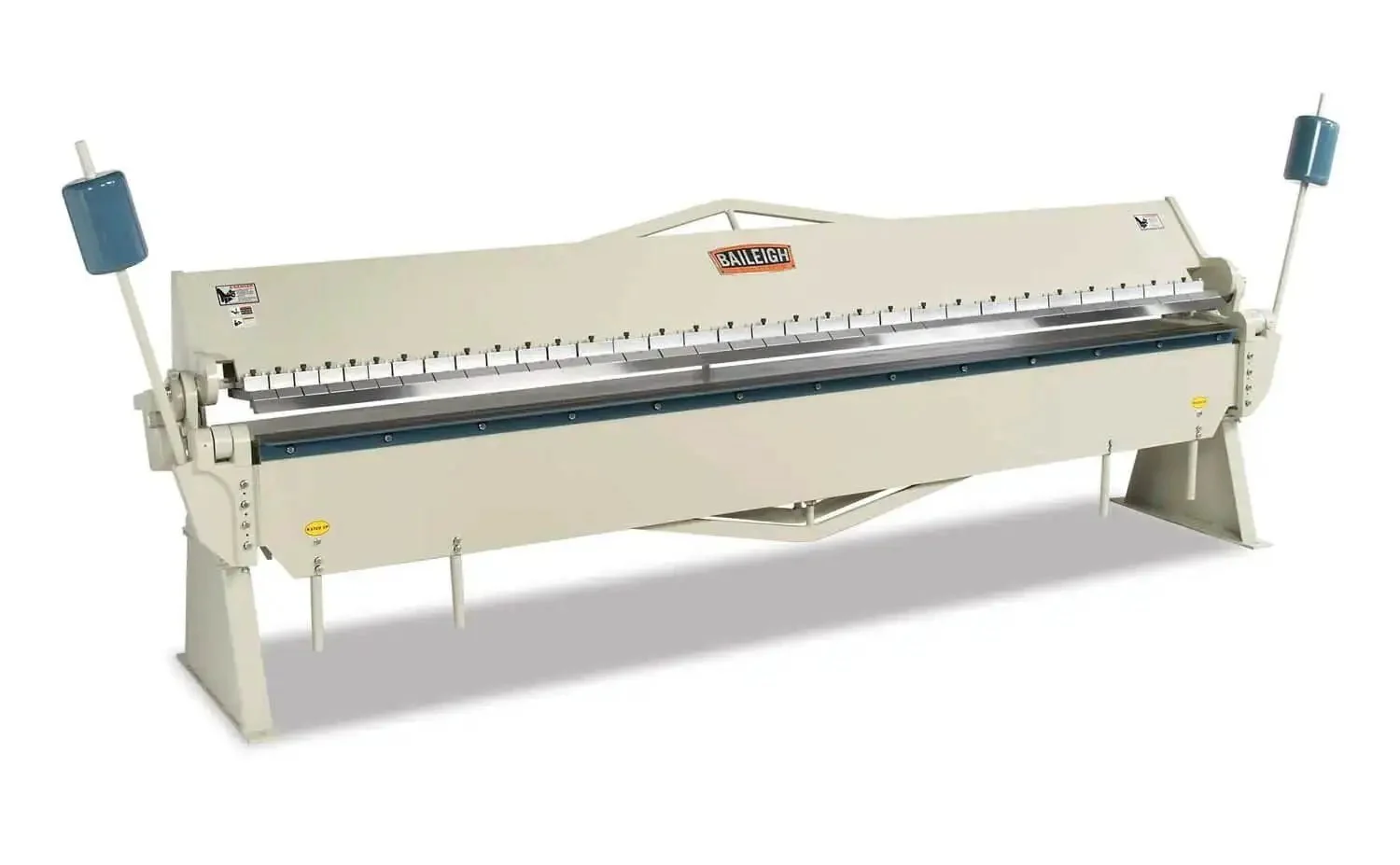

Beast Manual Heavy Duty Box And Pan Brake For HVAC Ductwork 0 To 135 Degree Bend 18 Gauge Mild Steel Capacity 12 Foot Bending Length 6 Inch Box Depth Hand Operated Sheet Metal Brake

Industrial Box & Pan Brake for HVAC Ductwork, 12 ft
✔️ 12 ft bending length; 18ga mild steel; 6 in box depth; 1 unit pack

This heavy-duty manual box and pan brake is designed for HVAC duct fabrication and metal enclosures. It delivers a long bending length (12 ft) and handles 18 gauge mild steel across the full length, with a 6-inch box depth for deeper profiles. A fully welded frame helps prevent twisting and misalignment, while 31 interchangeable fingers let you form many box and pan sizes up to 6 inches deep. Length is 144 inches (3658 mm); reverse bend starts at 0.625 inches (15.9 mm).

✅ 12 ft bending length (144 in / 3658 mm)
✅ 18 ga mild steel capacity (0.0478 in / 1.21 mm)
✅ 6 in box depth (152.4 mm)
✅ 0.625 in minimum reverse bend (15.9 mm)
✅ 0-135° bend range
✅ 31 interchangeable fingers included
✅ Manual operation; beam adjustment 1 in
✅ 22 ga stainless capability for select jobs
✅ Includes two counter bending weights for full-length bends

💡 What is a box and pan brake used for in metal fabrication?

A handy, multi-purpose tool for shaping sheet metal into ducts, boxes, and pans. It’s handy for achieving consistent bends over long lengths, especially in HVAC work.

- Long, straight bends and crisp box bottoms - Interchangeable fingers cover many sizes up to 6 in depth - Works with common sheet metal gauges up to the machine’s capacity - Provides repeatable profiles for duct and enclosure fabrication
