Beefy Enclosed General Purpose Fan Relay Replacement For Emerson 90-380 24V Coil Normally Open Or Closed Type 184 Heavy Duty Plug-And-Play Relay For HVAC Fans And Controls Essex Compatible PN 184-20114-401

Heavy-Duty enclosed 24V fan relay for HVAC controls 1 unit
✔️ 24 VAC coil; 1NO1NC; 14 FLA @125V; 84 LRA @125V; 25A @277V

This heavy-duty enclosed relay switches HVAC fans and control circuits, replacing Emerson 90-380 and Essex 184-20114-401 family parts. It offers plug‑and‑play installation, six mounting tabs, and a printed wiring diagram for quick setup.

✅ 24 VAC coil; 1NO1NC contact
✅ 14 FLA @125V; 84 LRA @125V
✅ 8 FLA @250V; 48 RLA @250V
✅ 25 A @277V

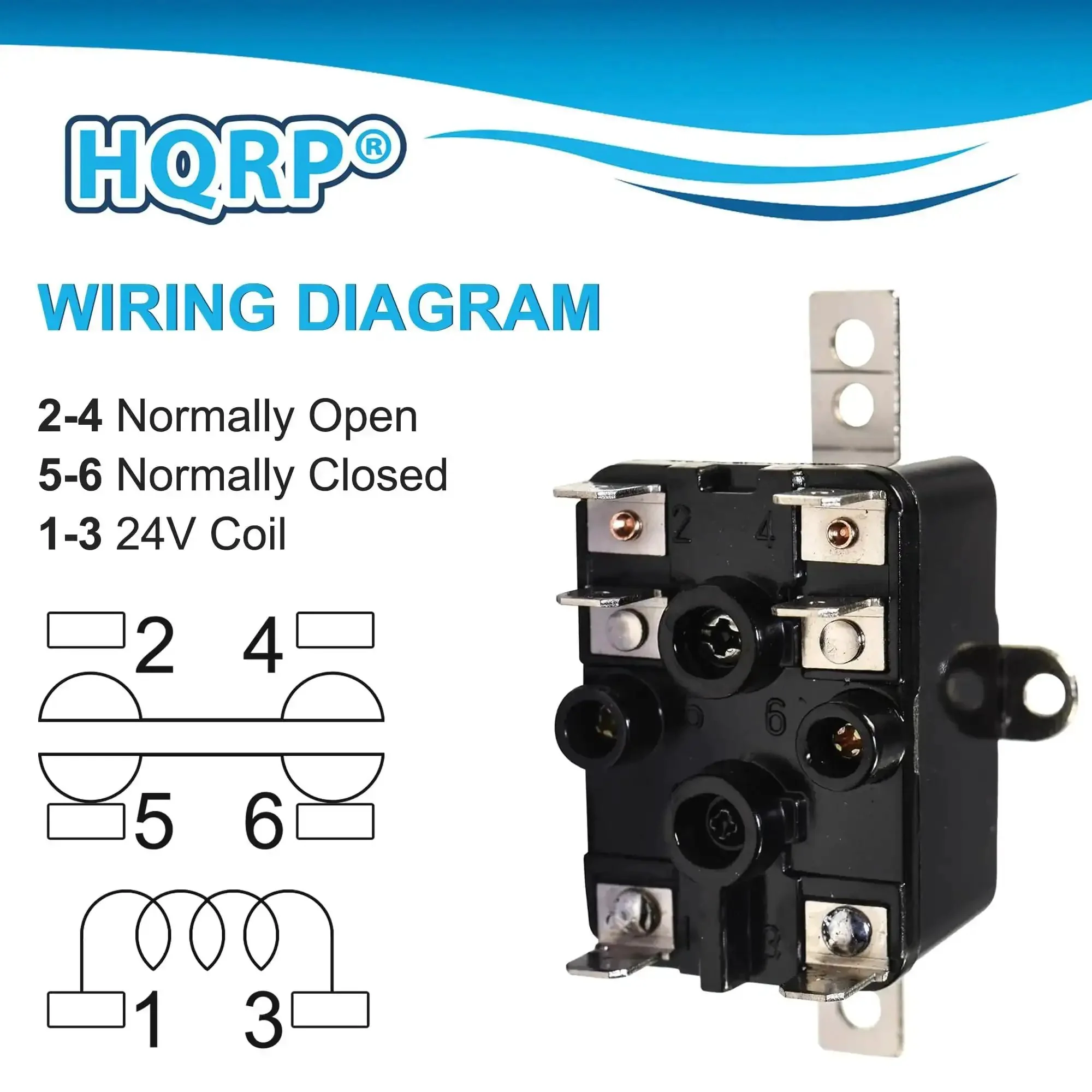

✅ 6 wire hookup terminals; printed wiring diagram
✅ Six mounting tabs for secure installation

💡 What is a general purpose fan relay used for in HVAC systems and why is a 24 VAC coil handy? This handy device switches fan motors and related controls in heating and cooling equipment. - It provides a simple, reliable way to control fan operation in furnaces and air handlers - The enclosed housing protects electronics from dust and moisture - It supports plug-and-play replacement for Emerson 90-380 and Essex 184-20114-401 family - Designed for typical residential/commercial HVAC loads with safe 24 VAC control
