Beefy General Purpose DPST Relay With 6 Pin Normally Open Contacts, 25A Rating At 277VAC 30VDC, 110V AC Coil, LED Indicator Light, Protective Cover, Handles 1.5HP At 120VAC And 3HP At 240VAC, UL CE TÜV RoHS Certified

Beefy General Purpose DPST Relay With 6 Pin Normally Open Contacts, 25A Rating At 277VAC 30VDC, 110V AC Coil, LED Indicator Light, Protective Cover, Handles 1.5HP At 120VAC And 3HP At 240VAC, UL CE TÜV RoHS Certified

Name: Beefy General Purpose DPST Relay With 6 Pin Normally Open Contacts, 25A Rating At 277VAC 30VDC, 110V AC Coil, LED Indicator Light, Protective Cover, Handles 1.5HP At 120VAC And 3HP At 240VAC, UL CE TÜV RoHS Certified
Brand: Bearings
SKU: beefy-general-purpose-dpst-relay-with-6-pin-normal
Availability: InStock

$10.93

Original: $31.22

-65%

$31.22

$10.93

Original: $31.22

-65%

$31.22

$10.93

The Story

Heavy-Duty DPST Relay - Single Unit for High-Current Loads
✔️ 25A @277VAC/30VDC; 1.5HP@120VAC, 3HP@240VAC; 110V coil

The rugged DPST relay is a high-current switch that controls two circuits from one coil. It's designed for industrial automation, HVAC, and power protection, where reliable switching and a clear status indicator matter.

✅ Coil Voltage: AC 110V; DPST (2 NO) contacts
✅ Rating: 25A at 277VAC / 30VDC

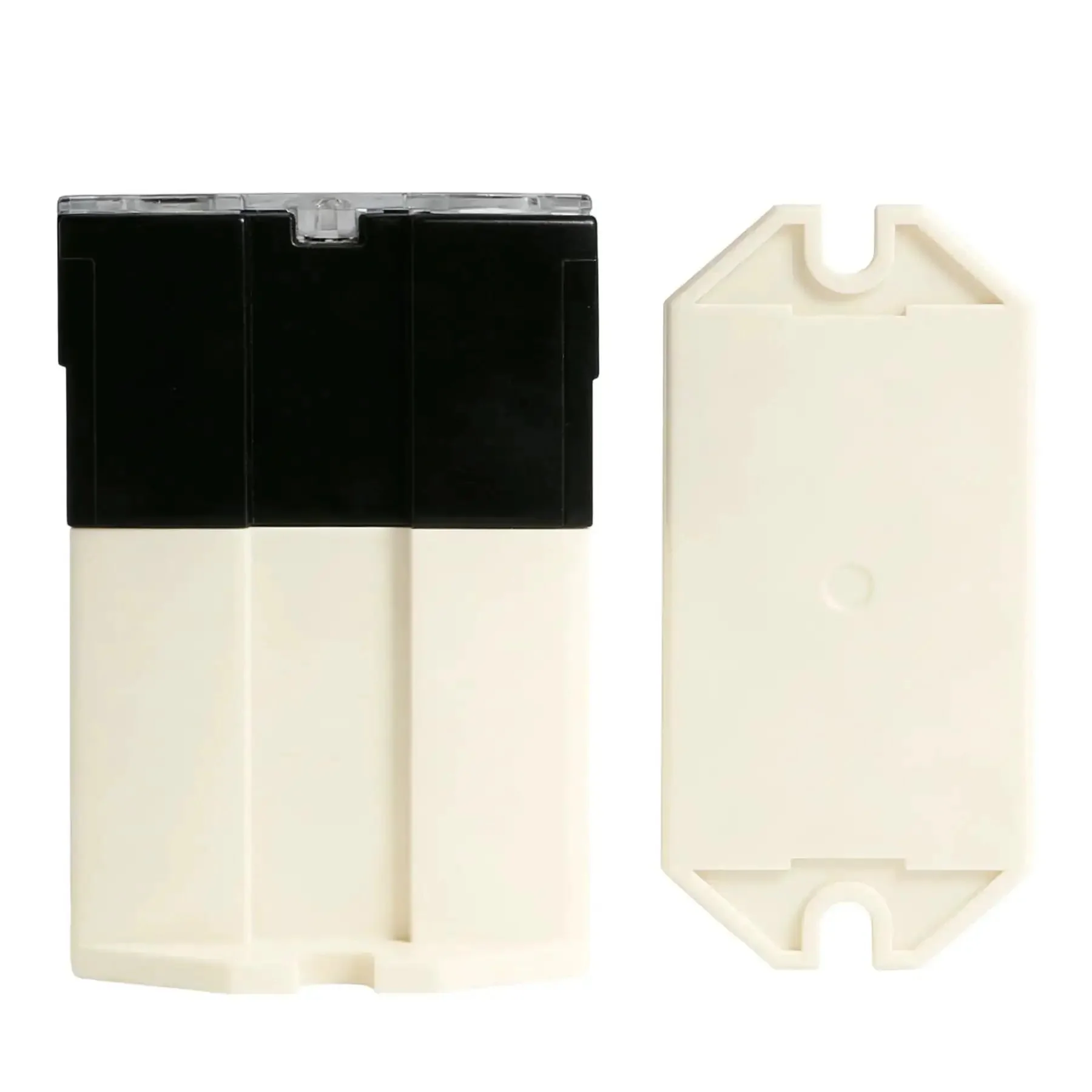

✅ Motor load: 1.5HP@120VAC, 3HP@240VAC; includes LED indicator and protective cover
✅ Flame-retardant housing, long life up to 50 million cycles

💡 What is a DPST relay used for in industrial automation? A handy device that switches two circuits from a single coil, simplifying control wiring and boosting reliability. - two independent NO contacts controlled by one coil - ideal for coordinating motor and heater loads - LED indicator helps with troubleshooting
