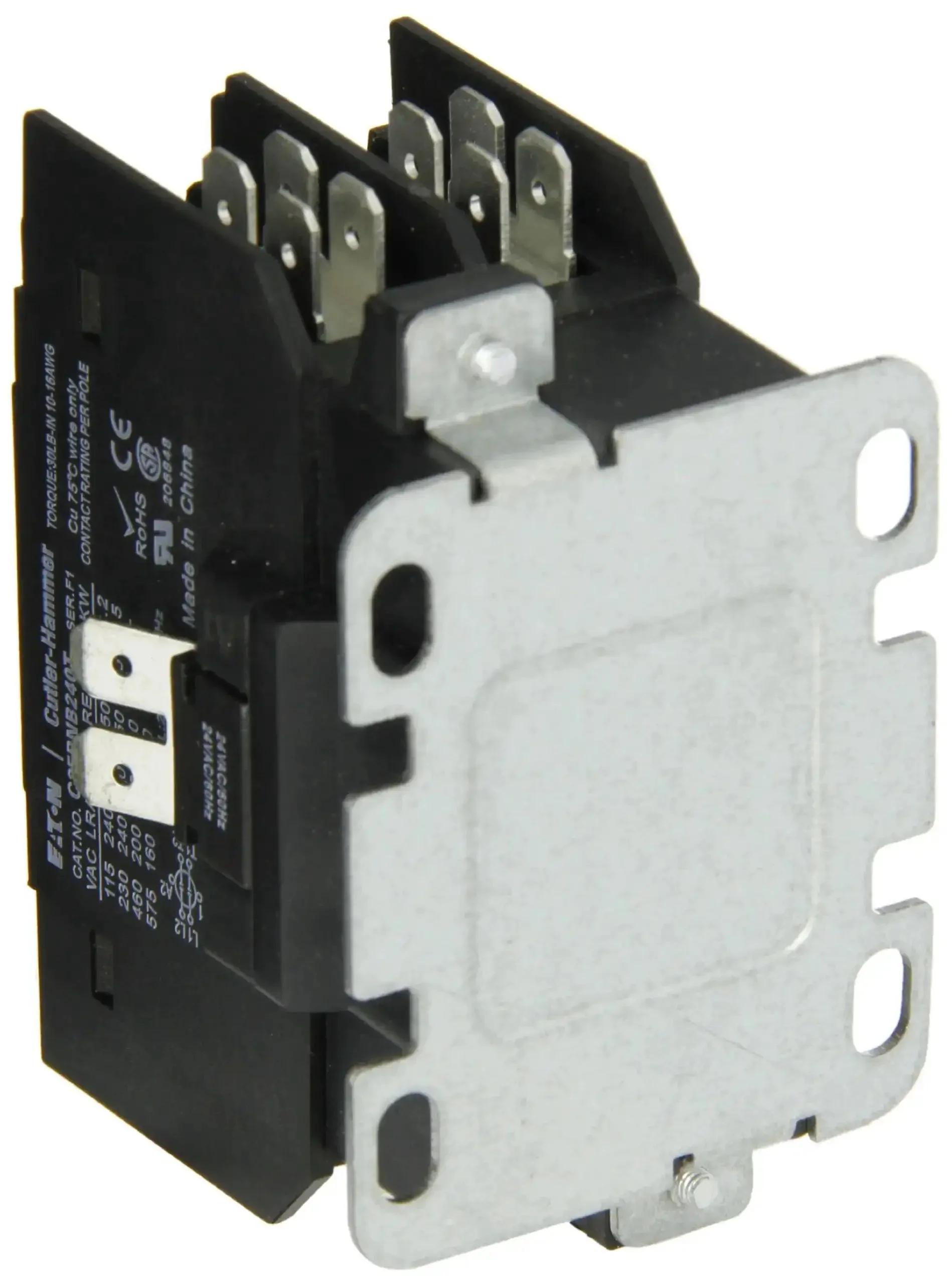

C25BNB240T Compact Definite Purpose Contactor With 40A Inductive Rating, 2 Poles, 24V AC Coil, 3 HP At 120V And 7.5 HP At 230V, Heavy Duty Industrial Controller For Motors, Fans, Compressors, Easy Install And Reliable Operation

Compact 2-Pole DP Contactor, 24V AC, 40A Inductive (1-Unit)
✔️ 2-pole, 24V coil, 40A inductive, 3 HP@120V, 7.5 HP@230V

This compact definite purpose contactor is designed to control motors, fans, and compressors in industrial equipment, HVAC panels, and automation cabinets. It provides reliable on/off control with a 2-pole configuration and a 24V AC coil for easy integration into low-voltage control circuits.

✅ Number of Poles: 2
✅ Full Load Amps (Resistive): 50
✅ Full Load Amps (Inductive): 40
✅ Coil Volts: 24V AC
✅ HP @ 1 Phase 120V: 3 HP
✅ HP @ 1 Phase 240V: 7.5 HP
✅ Enclosure: No Enclosure
✅ Hz: 50/60
✅ Reversing: No
✅ Series: Compact
✅ Includes Binding Head Screw with Quick Connect Terminals
✅ Mounting Plate: Metal
✅ Standards: CE, CSA, UL
✅ Dimensions: 81 mm high, 50 mm wide, 59 mm deep (3.19 in, 1.97 in, 2.32 in)
✅ Color: Black

💡 What is a definite purpose contactor used for in industrial motor control? It's handy for quick, reliable control of motors, fans, and compressors in simple control panels. - Handy for two-pole motor control in equipment - Handles inductive loads up to 40A with a 24V coil - Compact design with quick-connect terminals for easy wiring - Suitable for 50/60 Hz systems and standard protection schemes
