Compact Linear Stage Actuator With Slide Rail And Lead Screw For Precision Measuring Devices, 3D Printers And Robotics, Stepper Motor With Planetary Reducer, All Metal Build, Durable, Smooth Travel

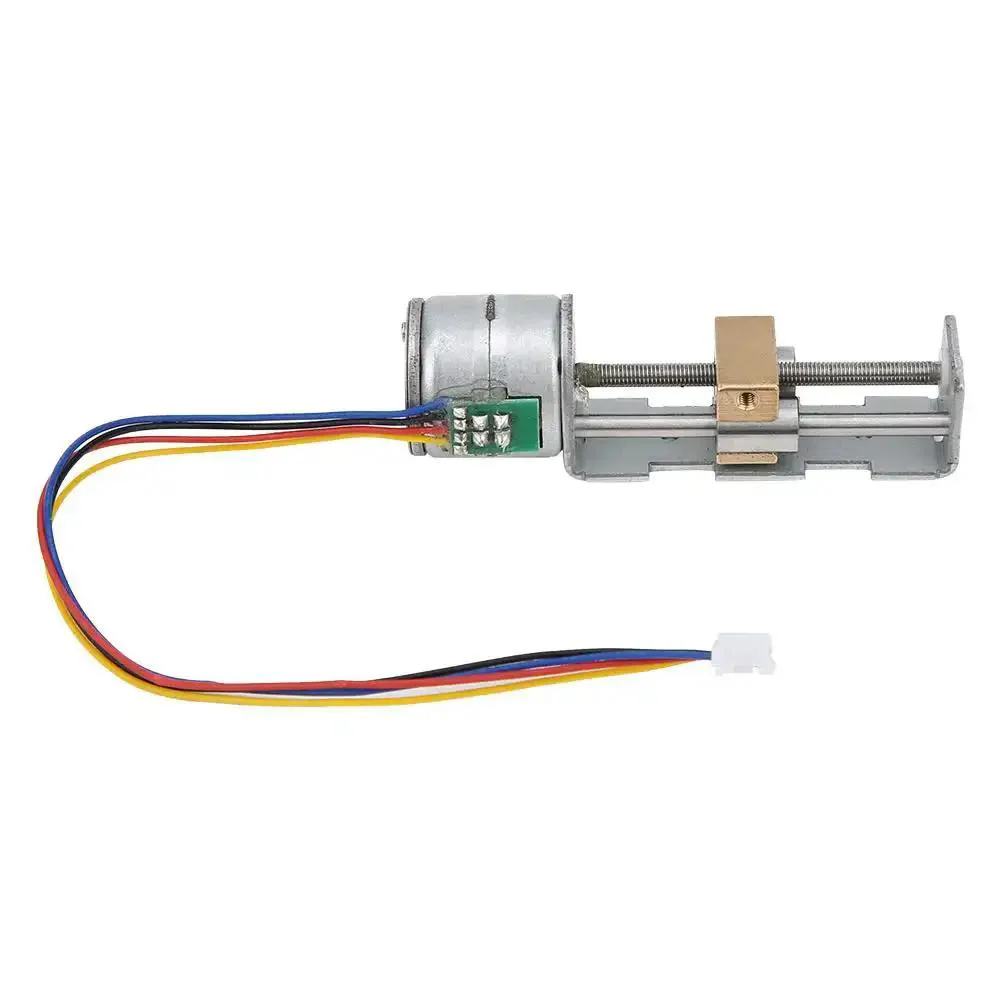

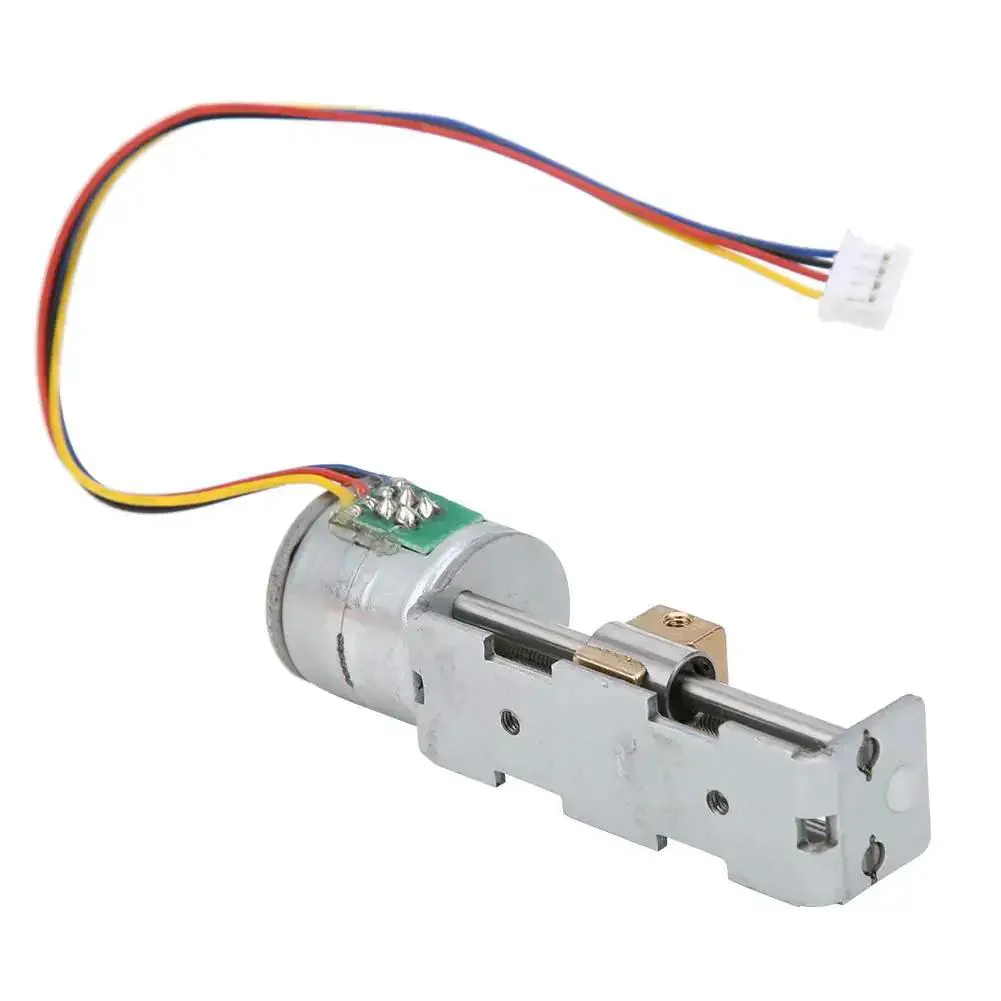

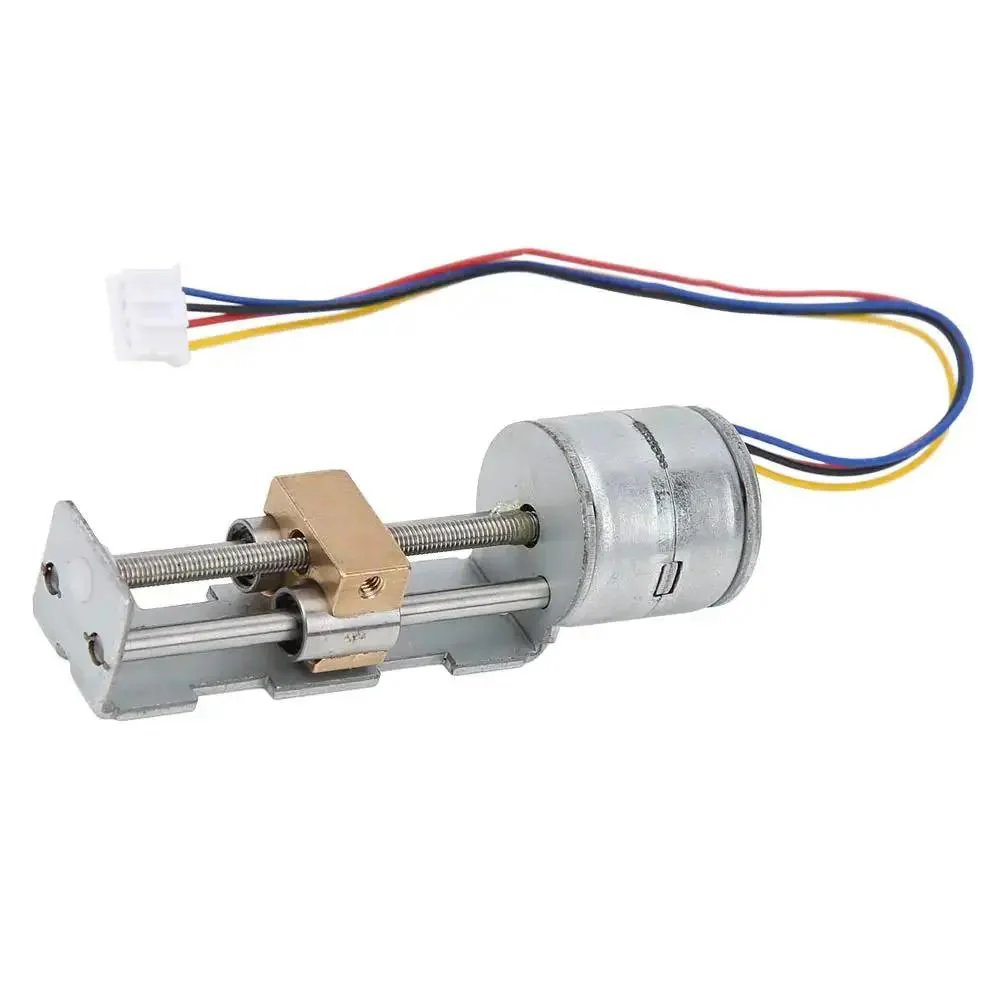

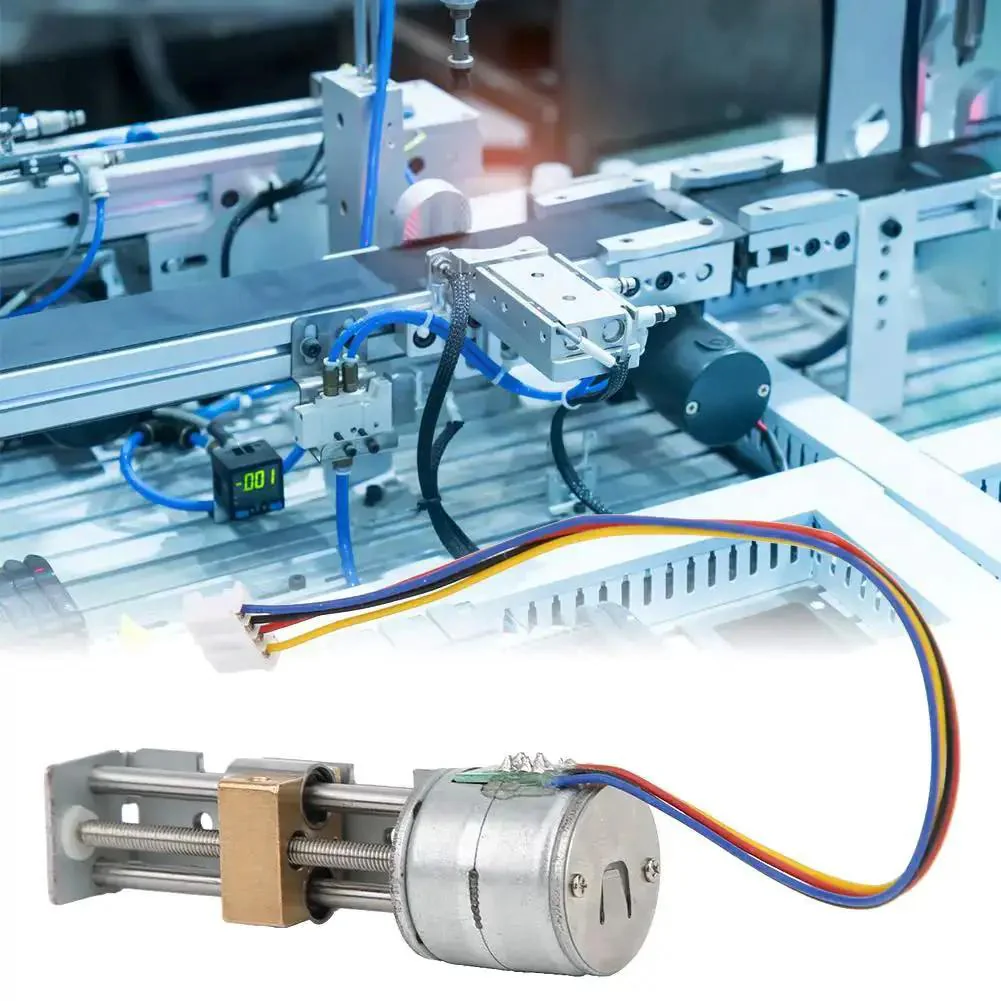

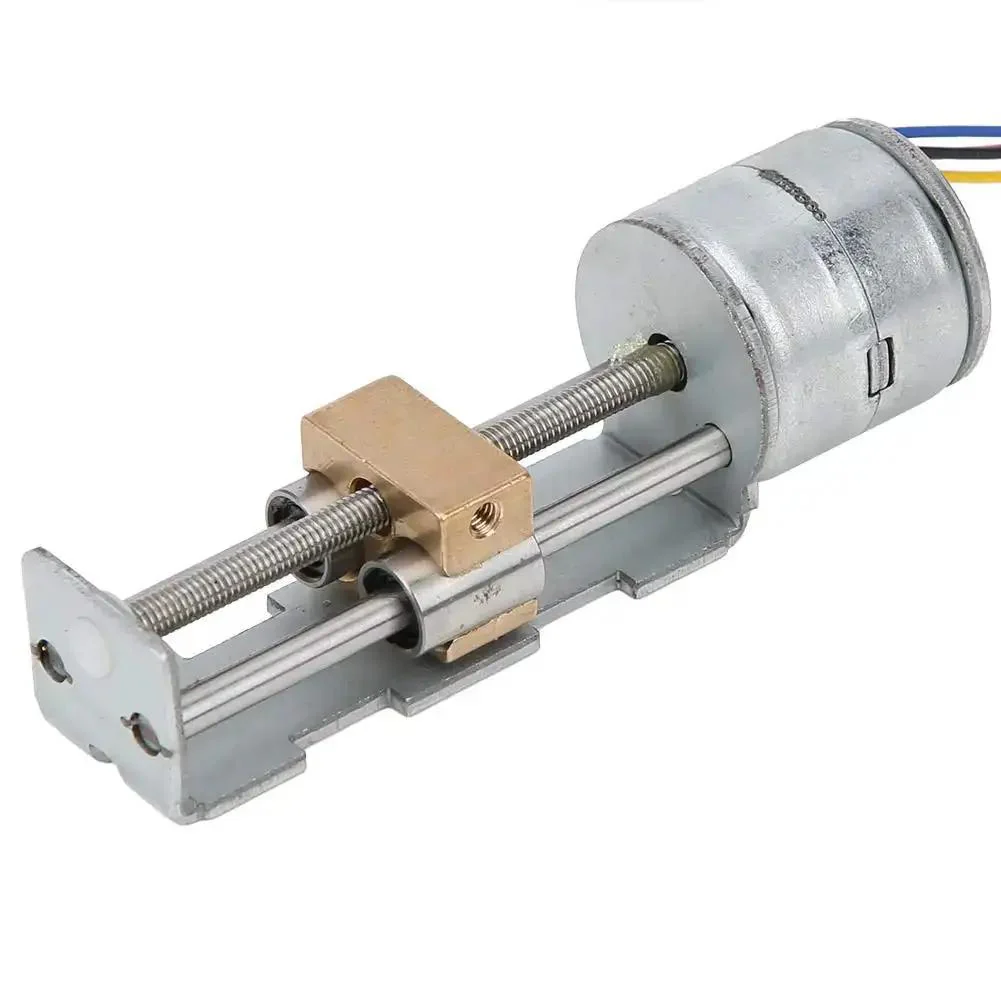

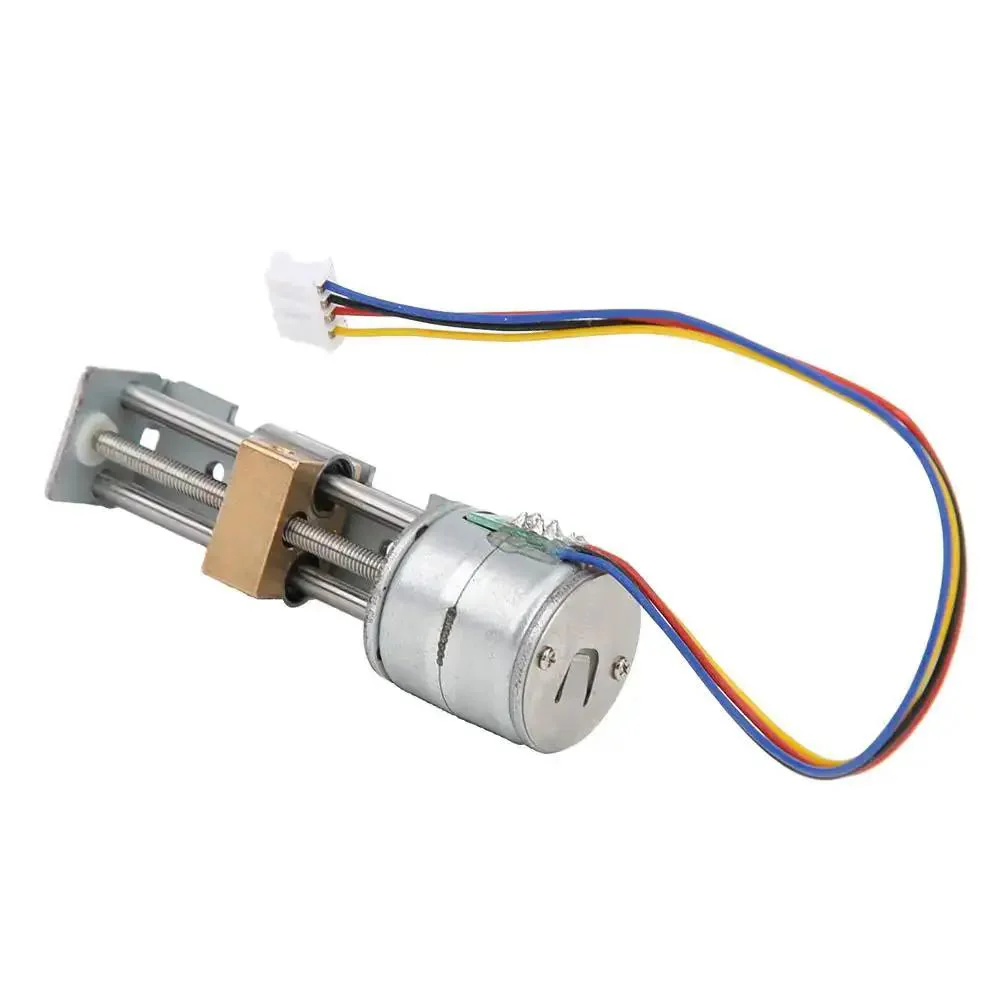

Compact Linear Stage Actuator with Slide Rail
✔️ All-metal single-unit stage: 34mm travel, 0.5mm pitch, 20mm dia

This compact linear stage actuator is a precision motion component designed for hobby CNC, 3D printers, and robotics projects. It features an all-metal frame with a lead screw and slide rail for smooth, repeatable movement. Ideal when paired with a compatible stepper motor and planetary reducer to maximize torque and accuracy.

✅ All-metal construction for durability and long service life

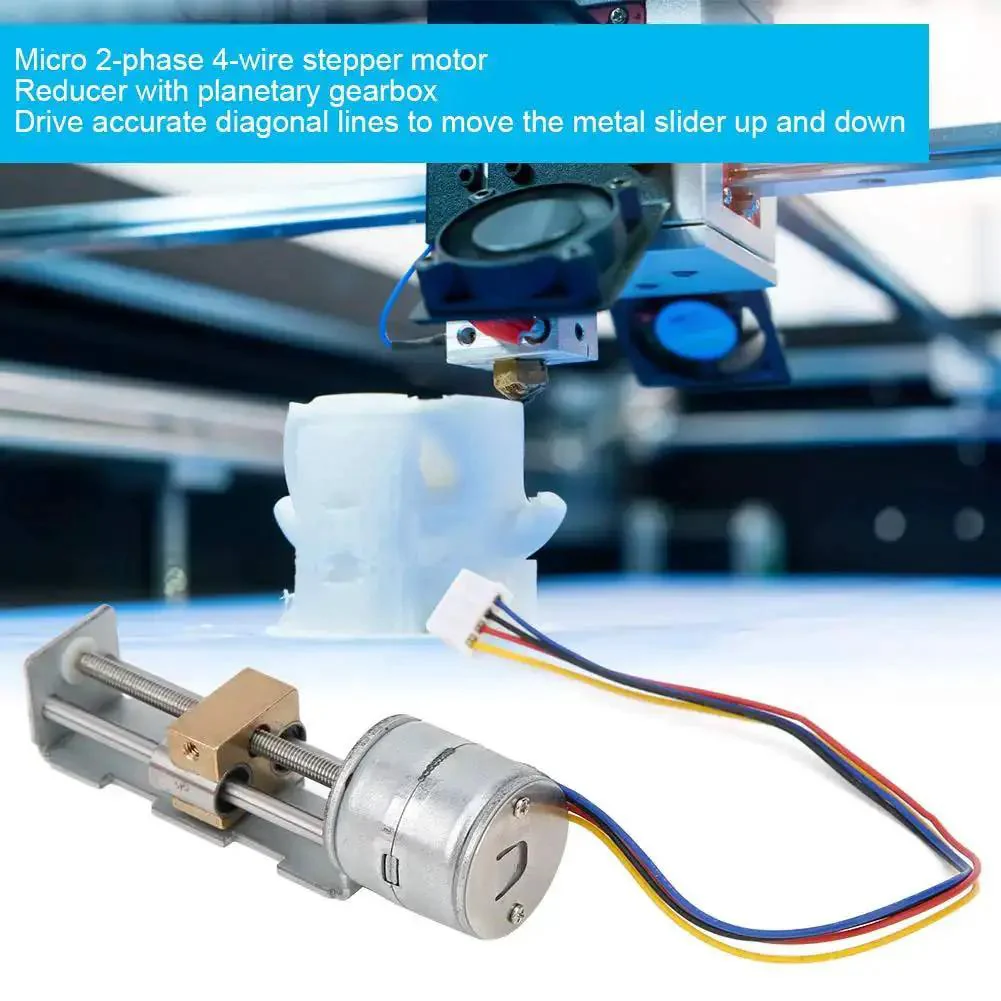

✅ Stepper motor with planetary reducer for strong torque and smooth motion
✅ Lead screw 0.5mm pitch with 34mm travel for precise positioning (34mm = 1.3in)
✅ Screw length 45mm (1.8in), motor diameter 20mm (0.8in), screw diameter 3mm (0.12in)
✅ Operating voltage 5-9V and 200-600mA current for common drivers
✅ Integrated slide rail for stable, straight-line travel in printers and measuring devices

💡 What is a linear stage actuator used for in precision motion systems? This handy device helps you achieve precise, repeatable movement for small automation tasks. - Used for fine positioning in 3D printers, CNC rigs, and lab benches. - Delivers straight-line travel with repeatable steps for measurement work. - Pairs with stepper motors and planetary reducers to boost torque and control.
