DC Circuit Breaker 12 To 110V DC 16A 1 Pole For Solar PV And Battery Power Systems DIN Rail Mount Disconnect Switch With Overload And Short Circuit Protection

1-Pole DC Breaker for Solar and Battery Systems
✔️ 16A, 12-110VDC, 1-pole DIN rail mount, overload protection

This single-unit DC miniature circuit breaker guards DC lines in solar PV and battery power setups. It installs easily on 35mm DIN rails or on surfaces inside control panels.

✅ Rated voltage: 12-110VDC
✅ Number of poles: 1
✅ Rated current: 16A

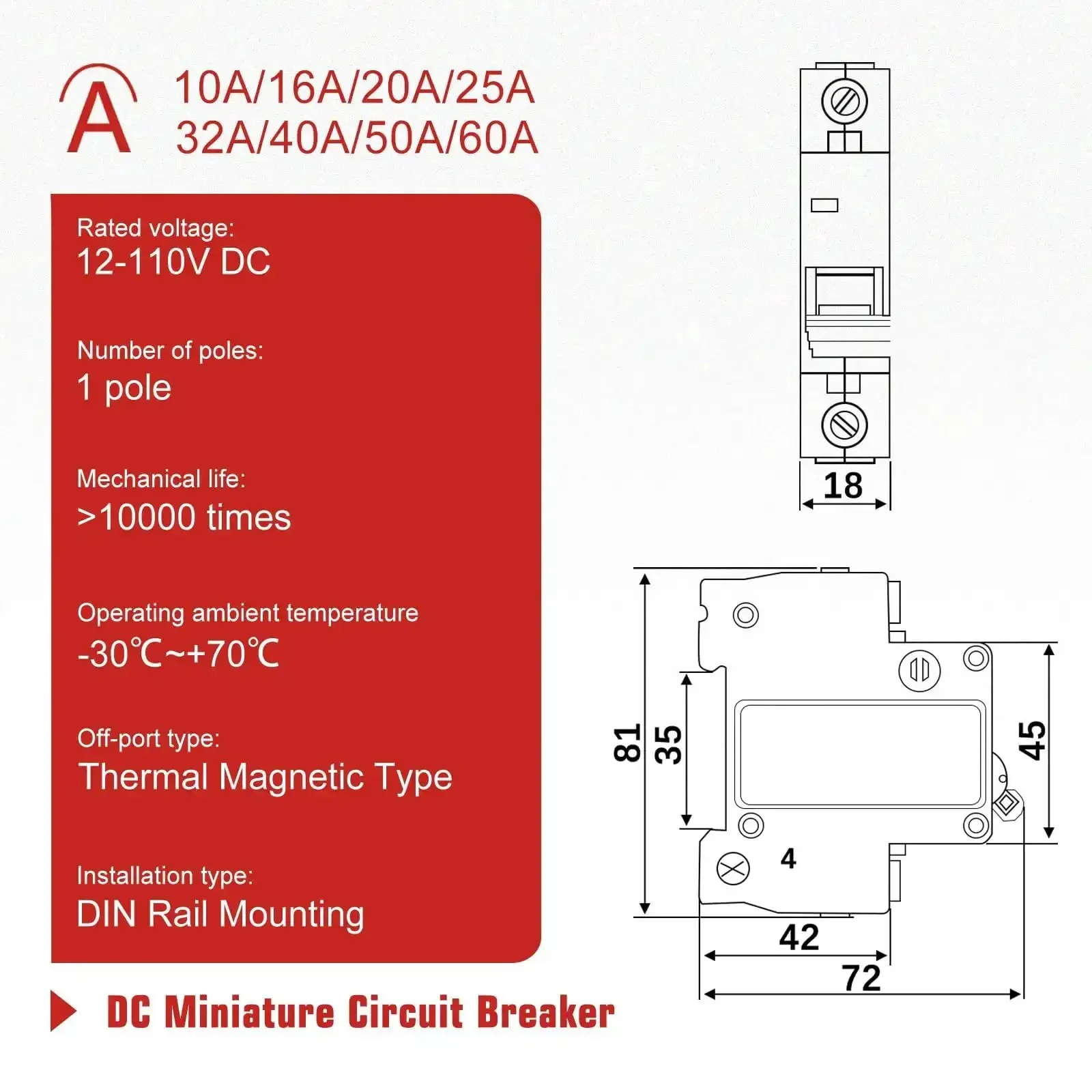

✅ Size: 81 mm × 17.5 mm × 66 mm (3.19" × 0.69" × 2.60")
✅ Mounting: 35 mm DIN rail or surface mount

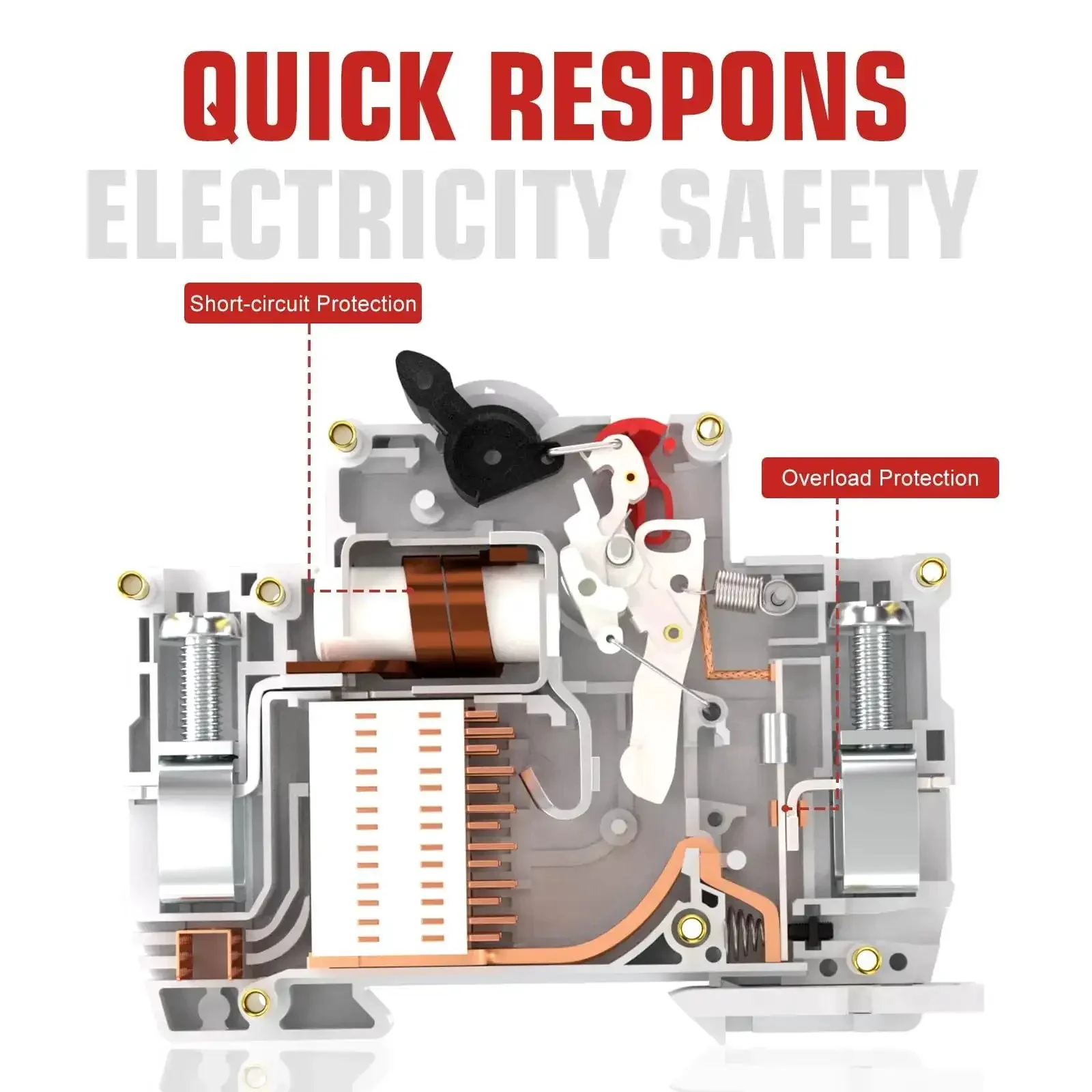

✅ Arc extinguishing: built-in magnetic arc suppression

💡 What is a DC circuit breaker used for in solar power and battery systems? This handy device helps protect safety by interrupting current during faults.
- Protects wiring from overload and short circuits in DC power
- Allows safe isolation for maintenance or fault finding
- Reduces fire risk in DC power setups
- Works with DIN-rail mounted panels and battery enclosures
