Dual H Bridge Motor Driver Module For DIY Robots, 1.5A Per Channel, DRV8833 Based, 3-10V DC Input, Powers Two Geared DC Motors, With Overcurrent, Short Circuit, Undervoltage Lockout And Overtemperature Protection, Sleep Mode

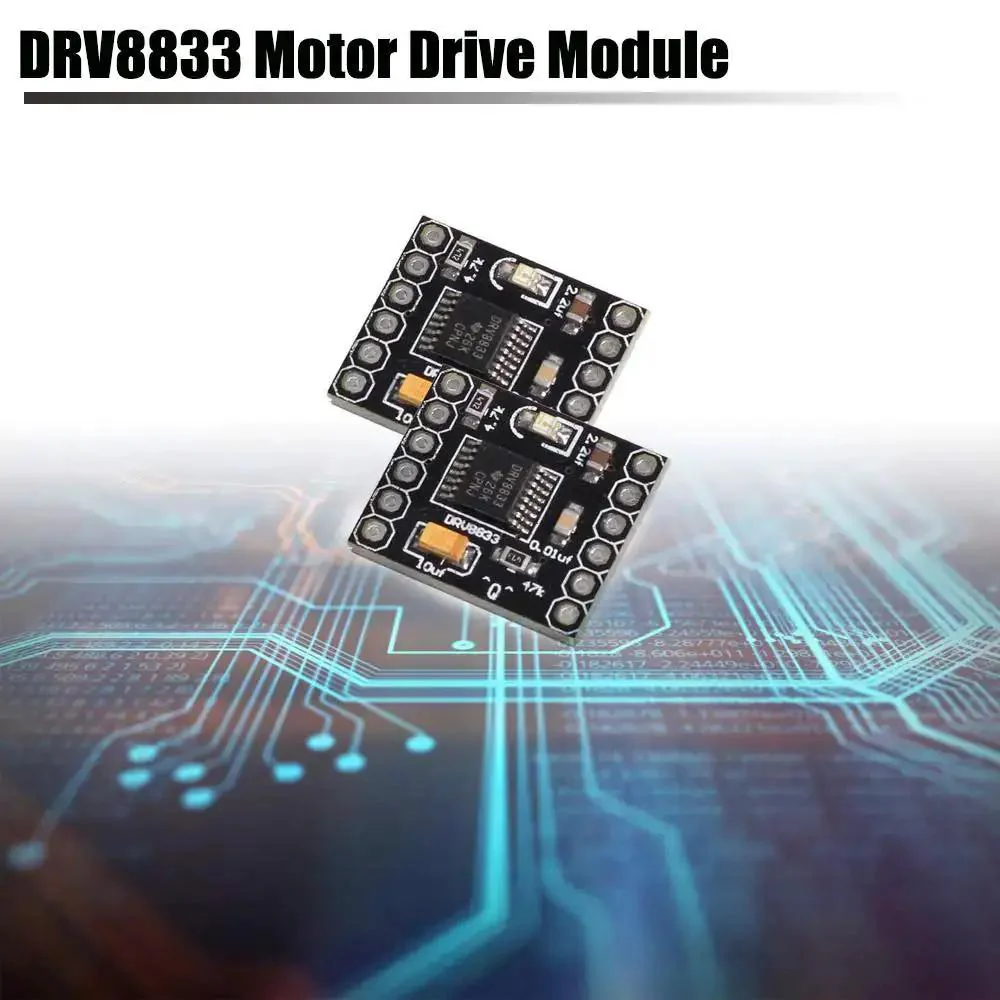

Dual DRV8833 H-Bridge Driver Module for DIY Robots (5-pack)
✔️ 1.5A per channel, drives 2 DC geared motors, 3-10V input

This compact dual H-bridge module is ideal for DIY robots and small smart cars. It measures 18.5×16 mm and accepts 3-10 V input to power two DC geared motors. It includes protections for overcurrent, short circuit, undervoltage lockout, and overtemperature, plus a low-power sleep mode. Pack includes 5 modules for multi-motor projects.

✅ Input voltage range: 3-10V DC
✅ Output current: up to 1.5A per channel
✅ Drives 2 DC geared motors (and 4-wire stepper motors)
✅ Built-in protections: overcurrent, short circuit, undervoltage lockout, overtemperature
✅ Sleep mode via ULT pin (low level) or disconnect J2
✅ Size: 18.5×16 mm; Pack of 5 modules

💡 What is a DRV8833-based dual H-bridge motor driver used for in DIY robotics?

- Handy for powering two motors in compact robot builds - Useful for hobbyists who want straightforward motor control - Provides built-in protections to reduce risk of damage - Works with 3-10V supplies and up to 1.5A per channel
