Dual Rail Linear Stage Table With Heavy Duty 12 Inch Stroke SFU1605 Ballscrew 300mm Travel 50x80mm Work Surface Electric Precision Slide 110 lb Load Capacity Fits NEMA17 42mm And NEMA23 57mm Steppers Ideal For CNC And Lab Applications

Single-Unit Dual Rail Linear Stage with 300mm Stroke

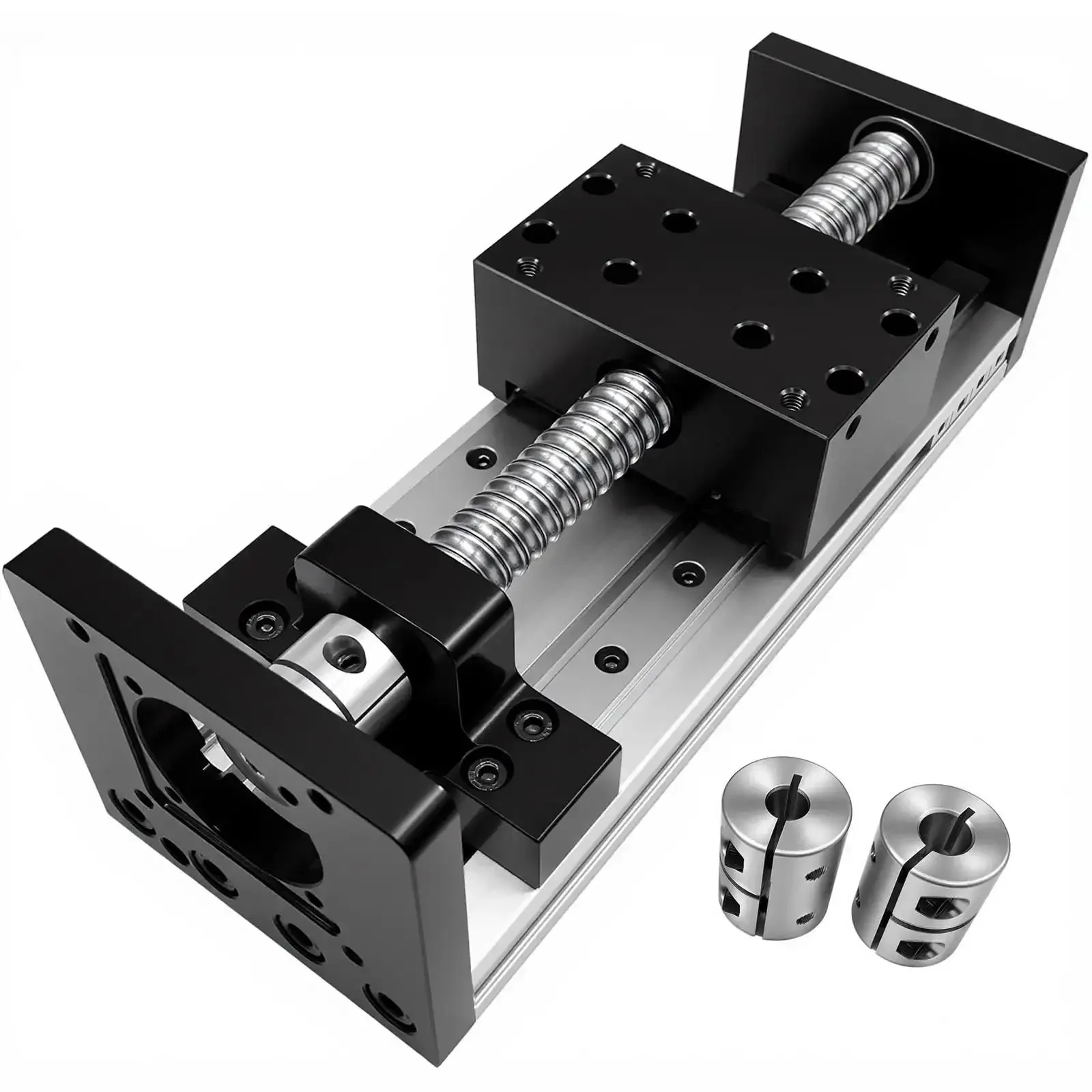

✔️ SFU1605 ball screw, 2x MGN12 rails, 300mm stroke

This heavy-duty, precision dual-rail stage is built for CNC, lab automation, and high-accuracy positioning tasks. It features a 50x80 mm work surface and quick motor-change capability for flexible automation setups.

Stroke	300 mm (12 in)
Total length	410 mm (16.14 in)
Work surface	50 x 80 mm (2.0 x 3.15 in)

✅ Stroke 300 mm (12") travel on a 410 mm (16.14") platform
✅ Work surface 50x80 mm (2.0 x 3.15 in) on top
✅ Dual MGN12R rails with 2x MGN12H sliders for tight rigidity
✅ Horizontal load up to 110 lb (50 kg), vertical up to 66 lb (30 kg)
✅ Max speed 500 mm/s (19.68 in/s) and repeatability 0.03-0.1 mm (C7)

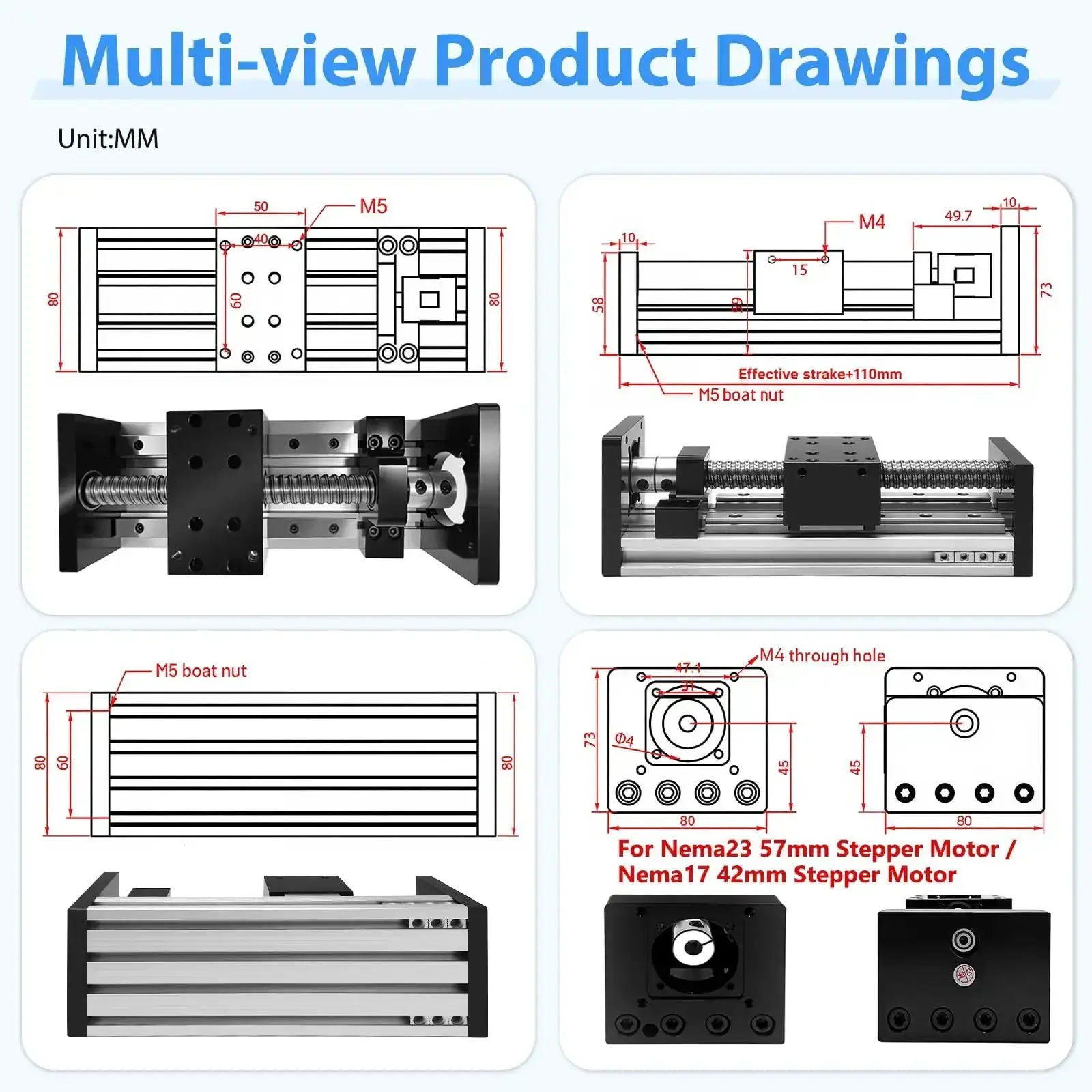

✅ Motor compatibility: supports NEMA17 (42 mm) and NEMA23 (57 mm) with 5/6.35/8 mm shafts

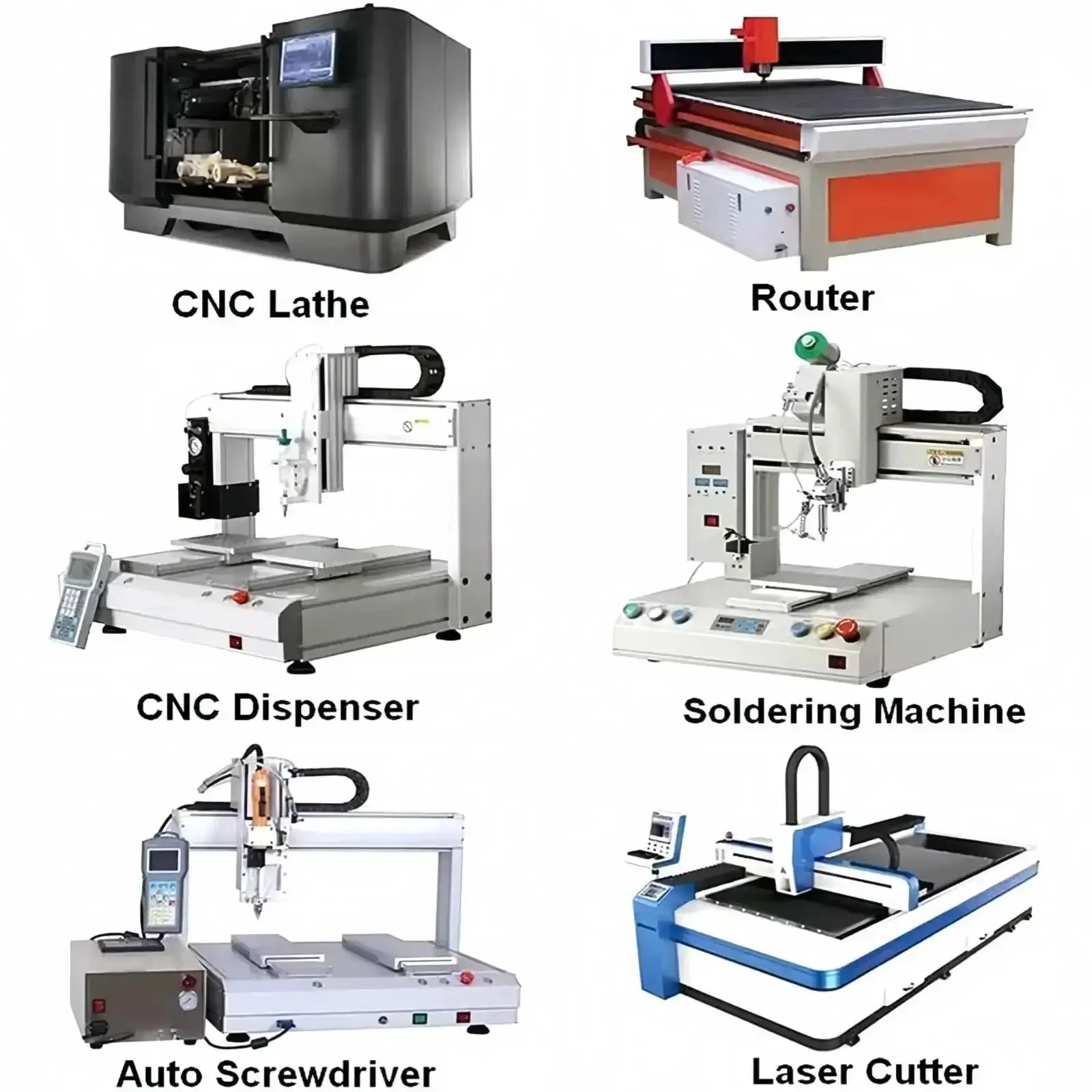

💡 What is a handy tool for precise motion control in automation? A quick intro sentence: This platform provides controlled movement for industrial apps. - Provides precise, repeatable motion for CNC, laser, and lab tasks.
- Handy for fast setup, alignment, and inspection in workshops.
- Improves rigidity and reduces deflection with dual-rail guides and ball screw drive.
