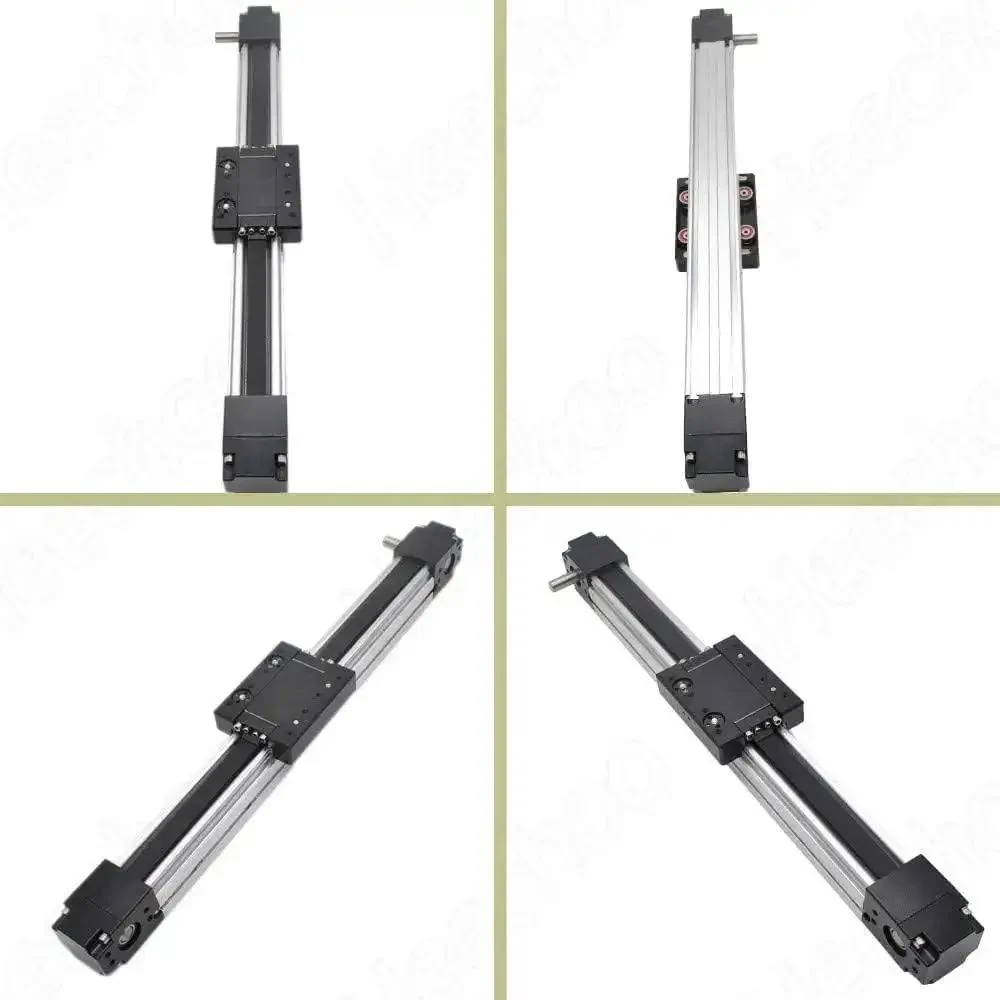

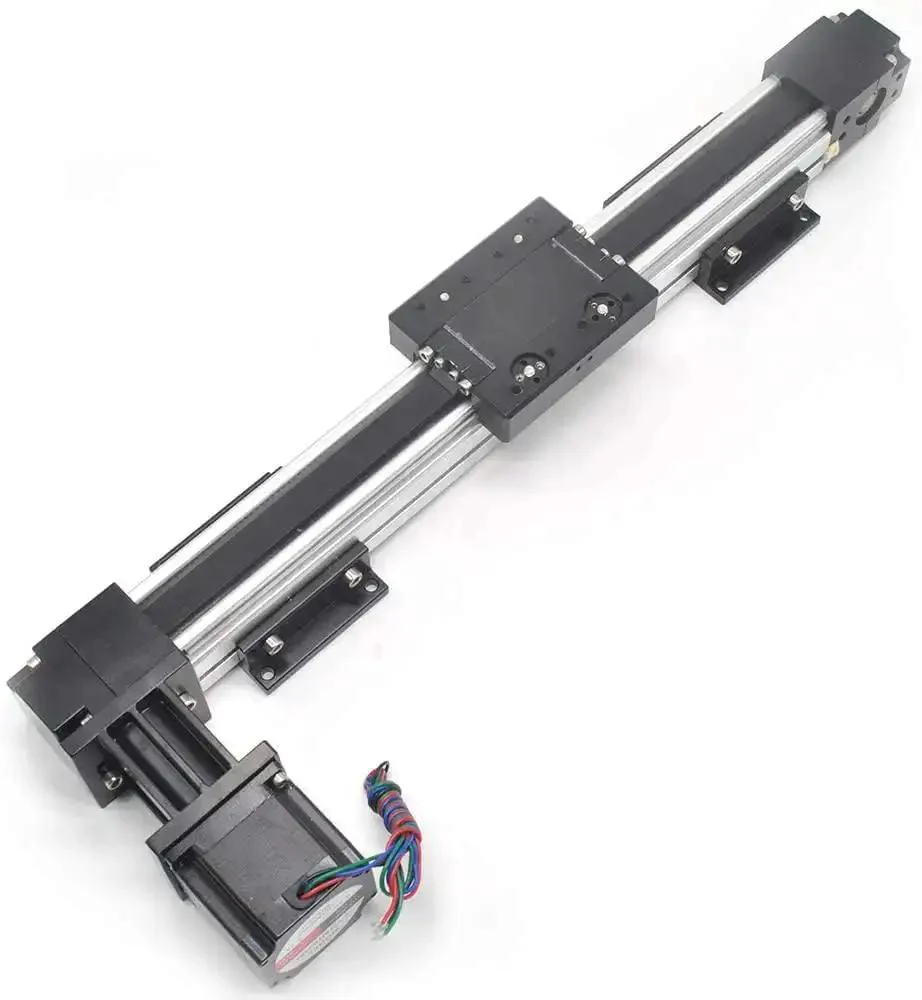

Fast 400mm Belt Driven Linear Actuator With 16 Inch Stroke For CNC Positioning, Nema 17 Motor, Precision Guide Rail System, 600mm Travel, Low Noise, High Speed Up To 500 Millimeters Per Second, 0.1mm Repeatability

Belt-driven CNC actuator, 400mm travel, single unit
✔️ NEMA 17 motor, 600mm travel, 500mm/s max, 0.1mm repeatability

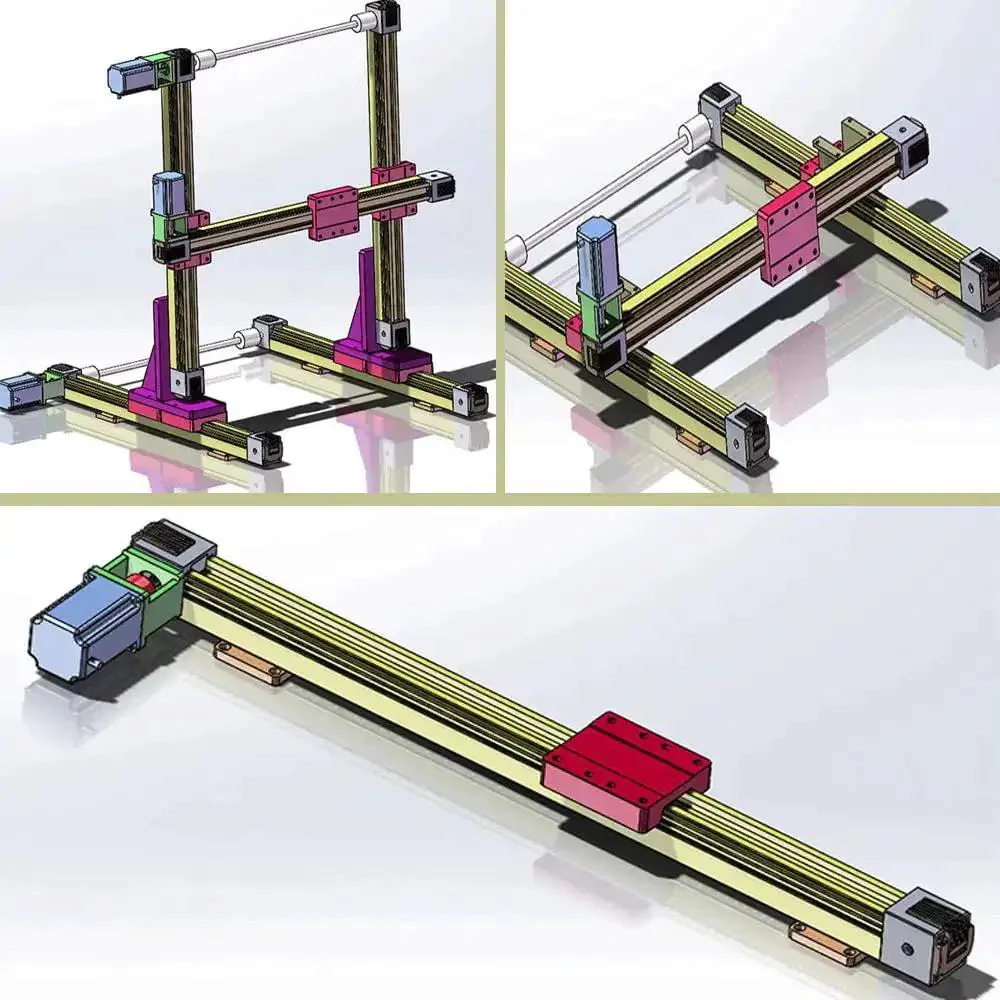

The high-precision belt-driven linear actuator delivers smooth, quiet motion for CNC positioning and automation. It's ideal for cross slides, gantry tables, and multi-axis configurations in milling, routing, engraving, or laser systems.

✅ Stroke: 16 in (406 mm)
✅ Travel: 600 mm (23.6 in)
✅ Max speed: 500 mm/s (19.7 in/s)
✅ Repeatability: ±0.1 mm (±0.004 in)
✅ Motor: NEMA 17, 1.0 N·m torque
✅ Material/finish: aluminum alloy profile, sandblasted rustproof

💡 What is a belt-driven linear actuator used for in CNC work?

- Handy for precise, repeatable linear motion in routing, milling, engraving - Great for cross slides, gantry tables, and multi-axis setups - Provides smooth operation with low noise for long production runs
