Four Channel Toggle Switch Power Distribution Module For DIN Rail Mount With LED On Off Indicators And DC Input Range Three To Thirty Two Volts Up To Thirty Amps Total Five Amps Per Channel Ideal For Industrial Control Panels

Four-Channel DIN Rail Power Distribution Module with LEDs
✔️ 4-channel DIN rail power module, DC 3-32V, 30A total

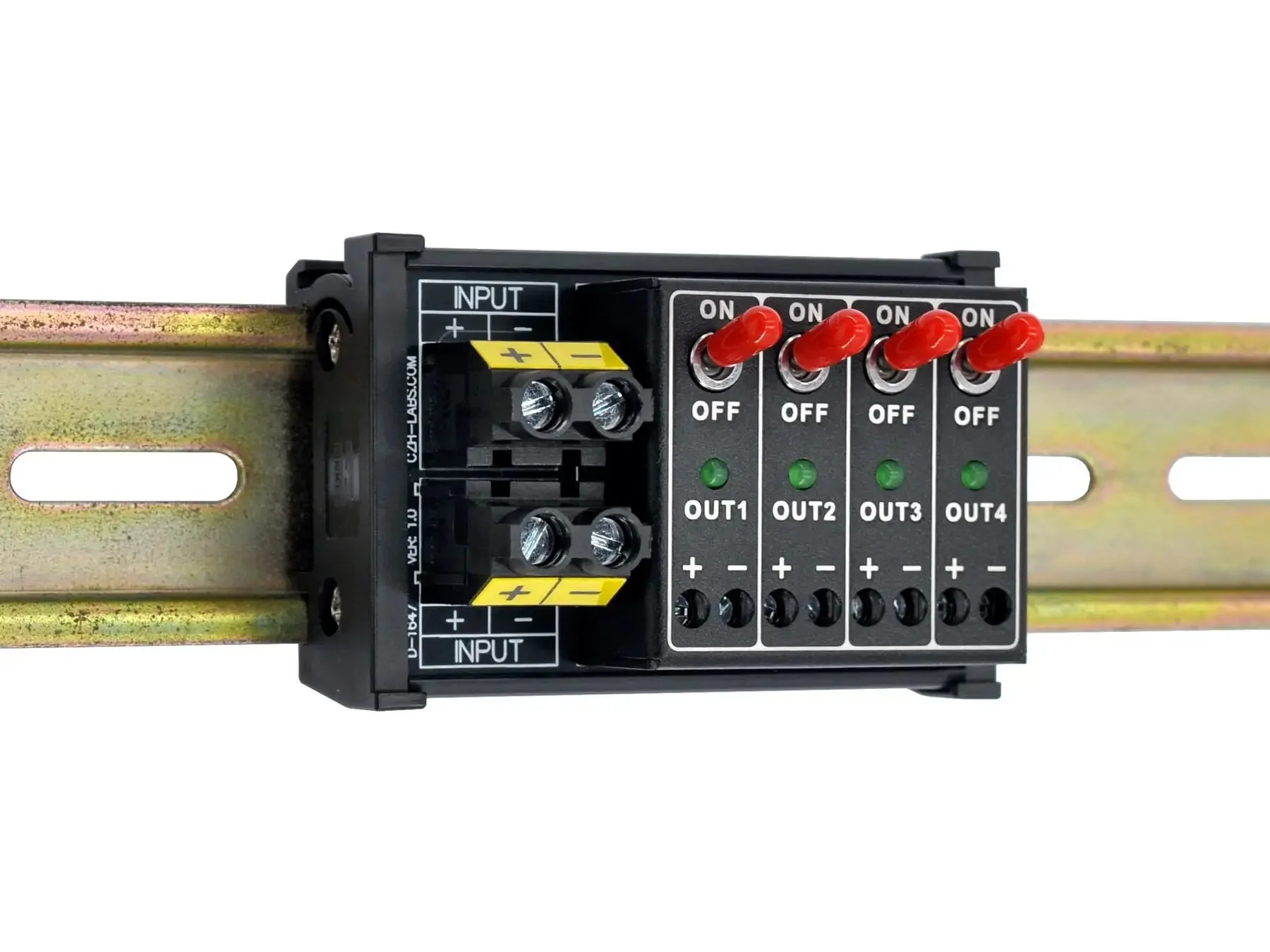

This four-channel DIN rail power distribution module is designed for industrial control panels and automation cabinets. It mounts on standard 35 mm DIN rails and provides four independently switched outputs with LED on/off indicators. This single module is ideal for distributing a single DC supply to multiple devices in control panels and machine automation setups.

✅ 4 channels, max 5 A per channel, up to 30 A total
✅ Input voltage range DC 3-32 V
✅ Input terminals: pitch 7.62 mm (0.3 in); wire size 26-10 AWG; M3 screws
✅ Output terminals: pitch 5.0 mm (0.197 in); wire size 26-12 AWG; M3 screws

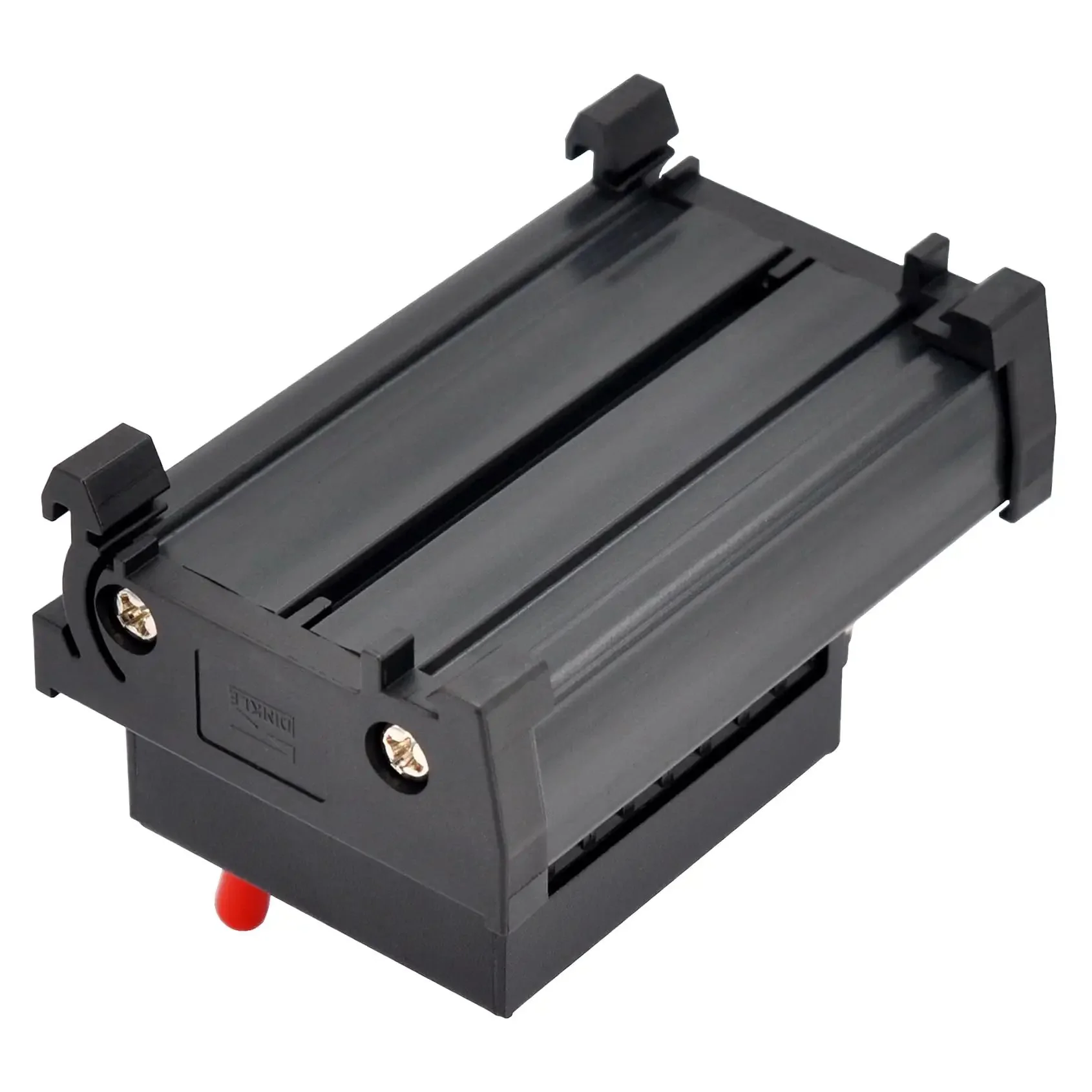

✅ DIN rail carrier: fireproof nylon, 35 mm rail compatible; aluminum top cover
✅ Certifications: UL/CE/CQC certified terminal blocks; UL 94-V0 FR-4 PCB
✅ Operating temp: -20 to 60 °C

💡 What is a DIN rail power distribution module used for? This handy device helps manage power distribution in control panels.

- Distributes DC power from a single supply to multiple outputs on a DIN rail - Provides independent ON/OFF control per channel with LED indicators - Supports expansion by daisy-chaining with other modules in the same system
