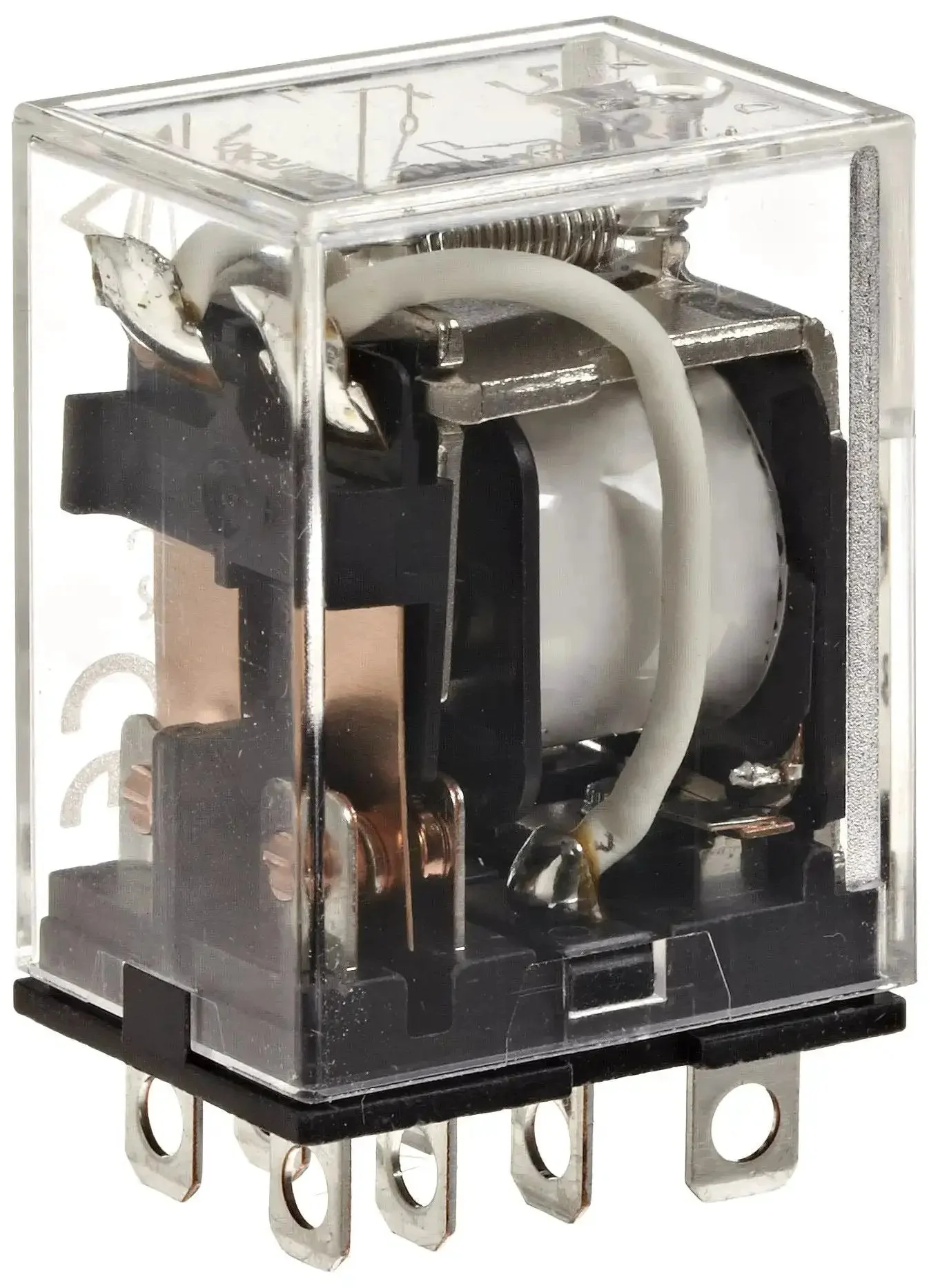

General Purpose 24 VDC DPDT Relay With Plug In Solder Terminals For Easy Socket Or Solder Mounting No Fuss Standard Bracket Mount UL Listed And CSA Certified 36.9 Milliamp Load Current For Low Power Signal Switching

Single-unit 24V DPDT relay with plug-in/solder terminals
✔️ DPDT, NO/NC, 24 VDC, 36.9 mA, 8-pin, bracket mount

This general-purpose DPDT relay is built for low-current signal control in compact spaces. It features plug-in or solder terminals, supports bracket mounting on standard racks, and provides UL Listed and CSA Certified safety, making it ideal for control panels and small automation projects.

✅ Coil voltage: 24 VDC
✅ Coil current: 36.9 mA
✅ Load rating: 10 A at 24 VDC
✅ Contact form: DPDT, NO/NC
✅ Terminals: 8-pin for socket or direct solder
✅ Mounting: standard bracket on equipment racks
✅ Operating temp: -40 to +70 C
✅ Enclosure dimensions: 28 x 21.5 x 36 mm (1.10 x 0.85 x 1.41 in)
✅ Safety: UL Listed, CSA Certified

💡 What is a general purpose relay used for in low-power control circuits?

Relays let you switch higher-current devices with a small control signal, keeping control logic isolated from the load. They’re handy for panel wiring and compact automation.

- handy way to switch low-power signals from a control circuit - provides electrical isolation between control and load circuits - great for compact panels, automation cabinets, and small equipment
