Heavy Duty 50 Ton Hydraulic Press Brake Bender For Metal Fabrication 220V Three Phase Two Cylinder 51 And A Quarter Inch Blade 0.25 Inch Max Thickness Micro Adjustment And Synchronous Device Shop Ready Machine

Heavy-Duty 50 Ton Hydraulic Press Brake for Metalworking
✔️ 50 ton hydraulic brake, 51-1/4" blade, 0.25" max, 220V 3-Phase

This shop-ready heavy-duty hydraulic press brake is built for metal fabrication tasks requiring straight, precise bends. With two cylinders, 220V three-phase power, a 51-1/4 inch blade length, and 1/4 inch (6 mm) max material thickness, it's ideal for workshops, fabrication shops, and service centers needing reliable bending with precise micro-adjustment and a synchronous device. Pack size: 1 unit.

✅ Capacity: 50 Ton (500 kN) hydraulic press brake
✅ Maximum blade length: 51-1/4 inches (1300 mm)
✅ Maximum material thickness: 1/4 inch (6 mm)
✅ Power: 220V, 3-phase, 4 HP hydraulic motor (3 kW)
✅ Worktable: 54" x 13-1/2" x 1-3/8" (1372 x 343 x 35 mm)
✅ V-block: 51-1/4" x 2-3/8" x 2-3/8"
✅ Piston travel: 9.84" (250 mm) + 15.94" (405 mm)
✅ Weight: G.W. 2024 lb / N.W. 1804 lb (approx 918 kg / 818 kg)
✅ Dimensions: Unit 72" x 24" x 81" (crate 84" x 29" x 88")

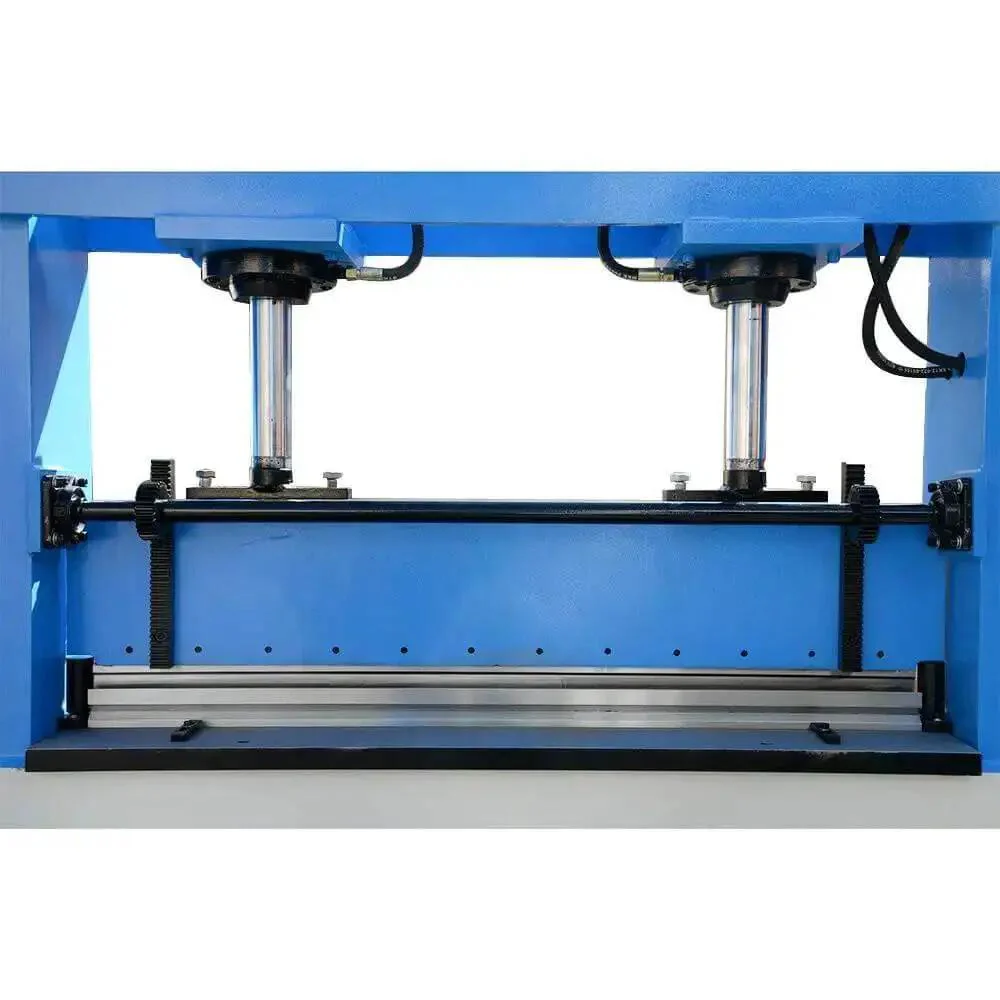

✅ Equipped with Angle Micro-Adjustment and Synchronous Device

Dimensions and specs help you plan a fit for your workshop. The unit is designed to handle thick sheet metal with consistent bends and repeatable results, making it a solid choice for fabricators who need predictable performance in a shop-ready package.

💡 What is a heavy-duty hydraulic press brake used for in metal fabrication? It’s handy for forming precise bends in sheet metal for fabrication shops and repair work. - Bend steel and aluminum to tight tolerances - Use micro-adjustment and synchronous device to boost repeatability - Supports parts up to 0.25 in thick for sturdy bends
