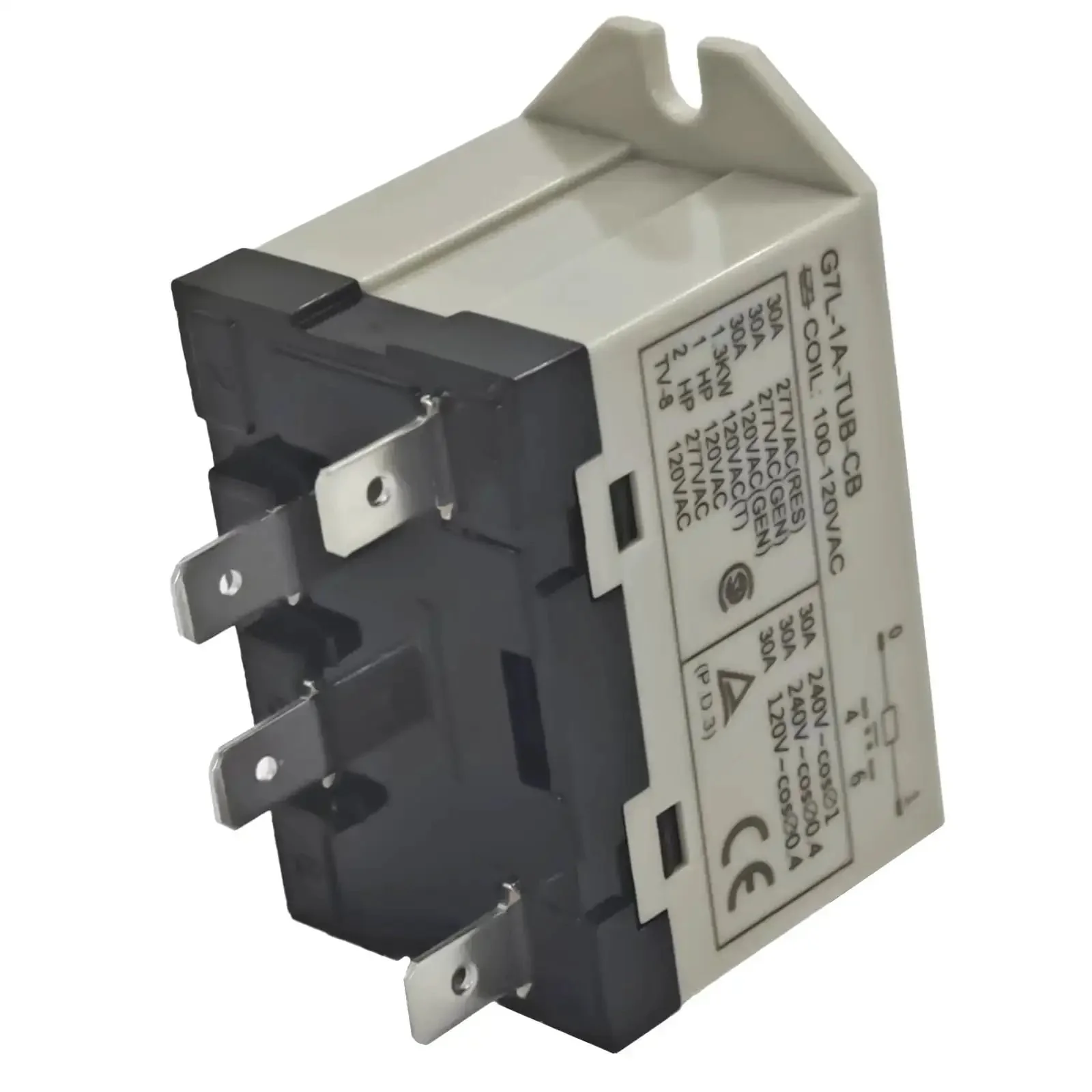

Heavy Duty General Purpose Relay 30A 250V SPST NO With Quick Connect Six Point Three Millimeter Blade Terminals UL Class B Insulation For Industrial Control And HVAC Gear Systems

Single Relay: Industrial 30A 250V SPST-NO with Quick Connect
✔️ 30A @250V AC SPST-NO; coil 100/120V; 6.3mm quick-connect blades.

Heavy-duty general-purpose relay designed for high-current control in industrial panels, HVAC gear, and motor start circuits. It uses SPST-NO contacts and upper-bracket/DIN rail mounting for easy integration in control enclosures.

✅ Contact rating: 30A @ 250V AC resistive; 25A @ 240V AC inductive
✅ Coil voltage: AC 100/120V ±10% at 50/60 Hz
✅ Operate/Release time: ≤ 30 ms
✅ Electrical endurance: 100,000 cycles under rated load
✅ Mounting: Upper bracket with DIN rail adapter (68.5×33.5×47 mm)
✅ Temperature range: -25°C to +60°C
✅ Dimensions: 68.5×33.5×47 mm (2.70×1.32×1.85 in)

💡 What is a high-current SPST-NO relay used for in industrial control panels?

It's a handy solution for reliable on/off control of motors, pumps, and HVAC gear in harsh environments. - Handy for motor starters, pumps, HVAC compressors in industrial setups - Supports high inrush loads common in power distribution and safety circuits - Features quick-connect terminals to speed wiring and maintenance - UL Class B insulation raises safety in heat-prone environments
