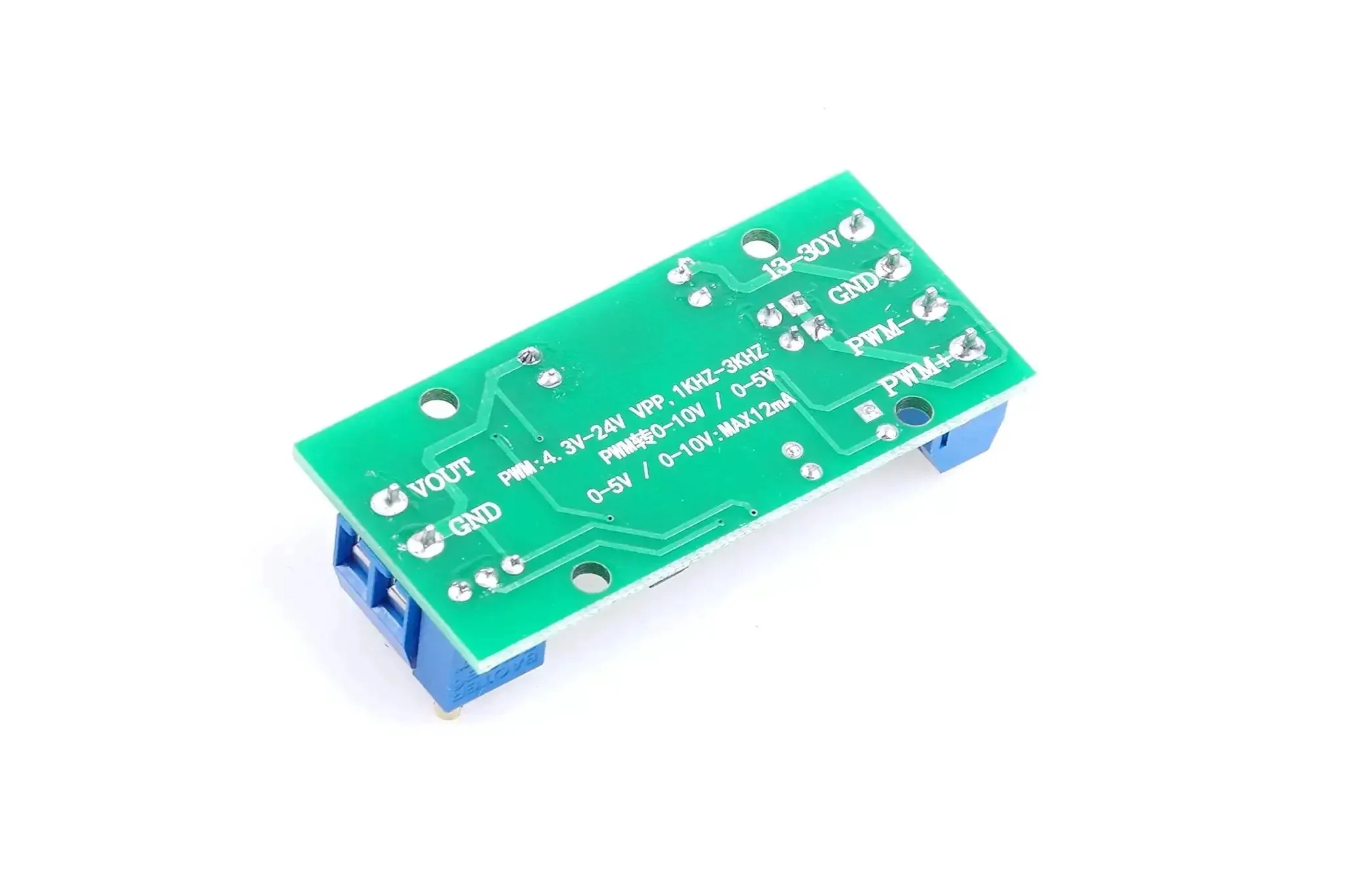

Industrial PWM To Analog Converter Module Convert 0 To 100 Percent PWM Into 0 To 10V Or 0 To 5V Analog Output Works With 3.3V 5V Or 24V Signals Perfect For PLCs And Industrial Control Panels No Fuss Setup For A Smooth Signal Interface

Industrial PWM to Analog Converter for PLCs, single unit
✔️ Converts 0-100% PWM into 0-10V/0-5V analog output from 12-30V input

This module converts a PWM signal into a stable analog voltage for PLCs and industrial control panels, creating a clean interface between digital controllers and analog instrumentation.

✅ Input voltage: DC12-30V (power >100mA)
✅ Output voltage: 0-10V
✅ PWM signal reception frequency: 100Hz-3kHz (1kHz-3kHz recommended)
✅ 4.5-10V peak-peak level, 5V jumper for 5V CPU interfaces
✅ 10-24V peak-peak level, 24V jumper for PLC interfaces
✅ 12V level requires >15V DC supply; optional 12V DC power converter
✅ Conversion range: 0-100% PWM to 0-10V
✅ Size: 56 x 26 x 12 mm
✅ Interface: PWM+, PWM-, VCC, GND, GND, OUT

💡 What is a PWM to analog converter used for in industrial control systems? Handy method to translate PWM into stable analog voltages for PLC inputs and motor controllers.
- Converts PWM duty cycle to 0-10V or 0-5V analog signals
- Handles 3.3V, 5V, or 24V PWM inputs for wide compatibility
- Includes calibration steps to map duty cycles to voltages with accuracy
- Ideal for PLCs, SCADA, and industrial control panels
