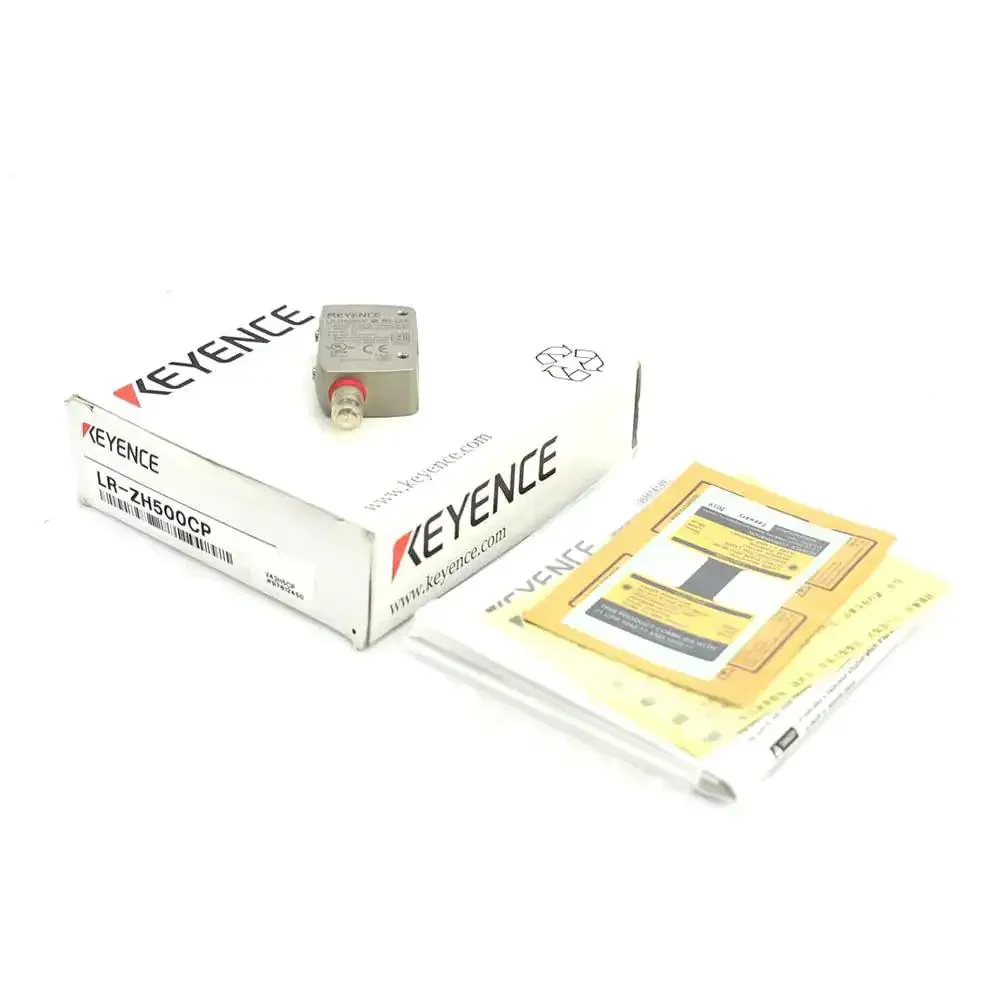

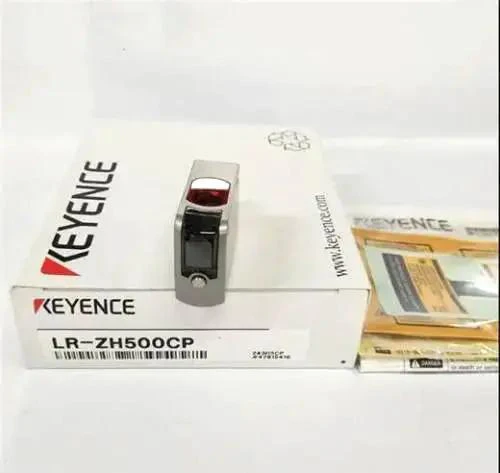

LR ZH500CP Laser Sensor UCD Distance Based With PNP Output M8 4 Pin Cable Industrial Grade New In Box For Precision Automation And Process Control Ready

LR-ZH500CP laser sensor, 1 unit pack, PNP output
✔️ PNP output, M8 4-pin cable, 35-500 mm sensing range, IP68 rated

Compact, rugged laser sensor (9.00 x 6.00 x 3.00 in / 228.6 x 152.4 x 76.2 mm) designed for precision automation and process control. This UCD distance-based device uses an M8 4-pin connector to deliver a PNP signal, and its IP68/IP69K enclosure stands up to harsh factory environments. Ideal for inline measurements on conveyors and packaging lines. Weight: 1.0 lb (0.45 kg).

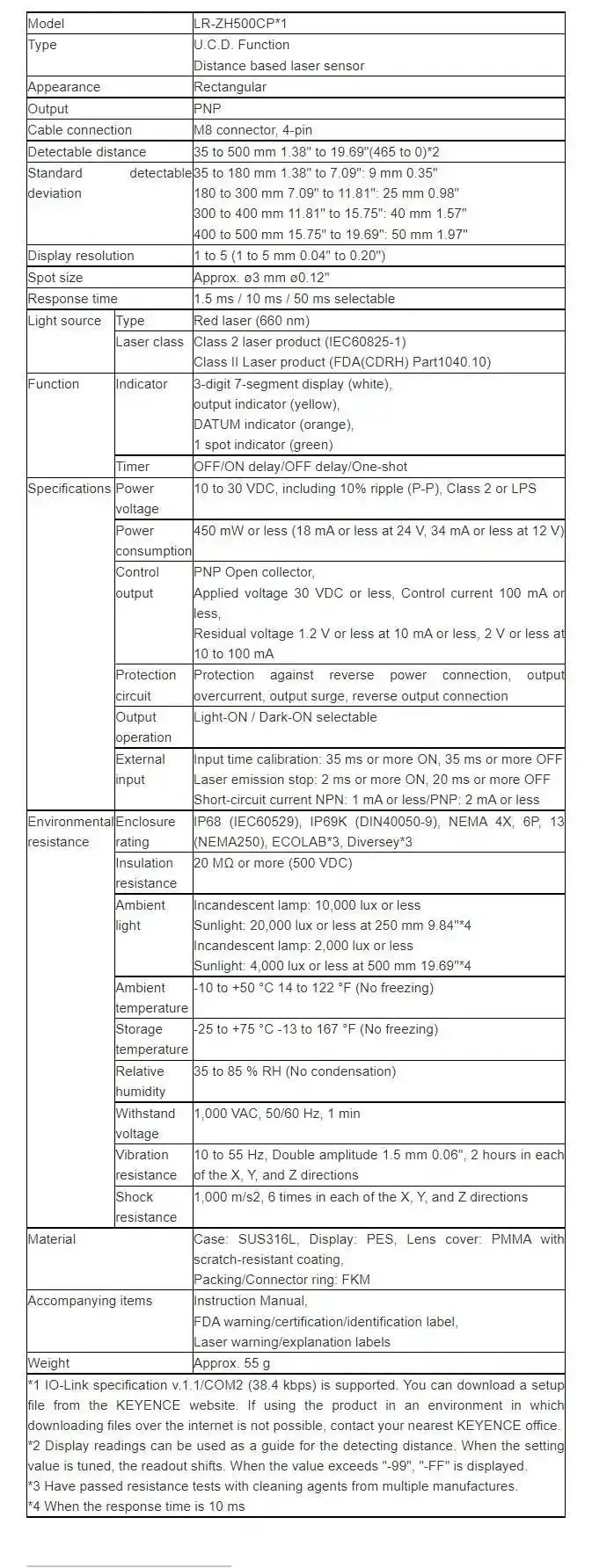

✅ Model: LR-ZH500CP
✅ Type: U.C.D. distance-based laser sensor
✅ Output: PNP open-collector (≤30 VDC, ≤100 mA)
✅ Cable: M8 4-pin
✅ Detectable distance: 35-500 mm (1.38-19.69 in)
✅ Display resolution: 1-5 mm (0.04-0.20 in)
✅ Spot size: Ø3 mm (0.12 in)
✅ Response time: 1.5 ms / 10 ms / 50 ms selectable
✅ Enclosure: IP68 / IP69K / NEMA 4X, 6P, 13

💡 What is a distance-based laser sensor useful for in automation and process control? This handy tool helps monitor position and trigger control signals without contact.
- Non-contact detection on conveyors and packaging lines
- PNP open-collector output compatible with PLC inputs
- Rugged IP68/IP69K housing for harsh environments
- Fast response times for high-speed production
