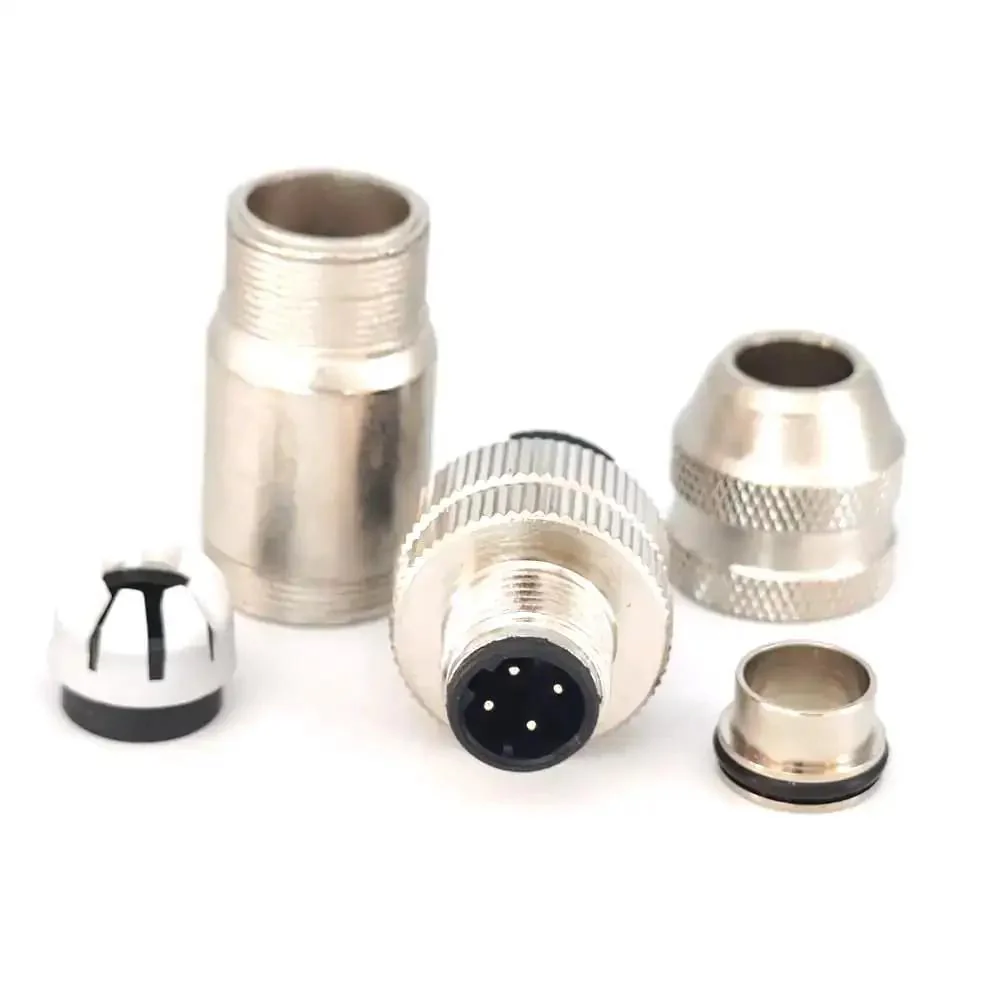

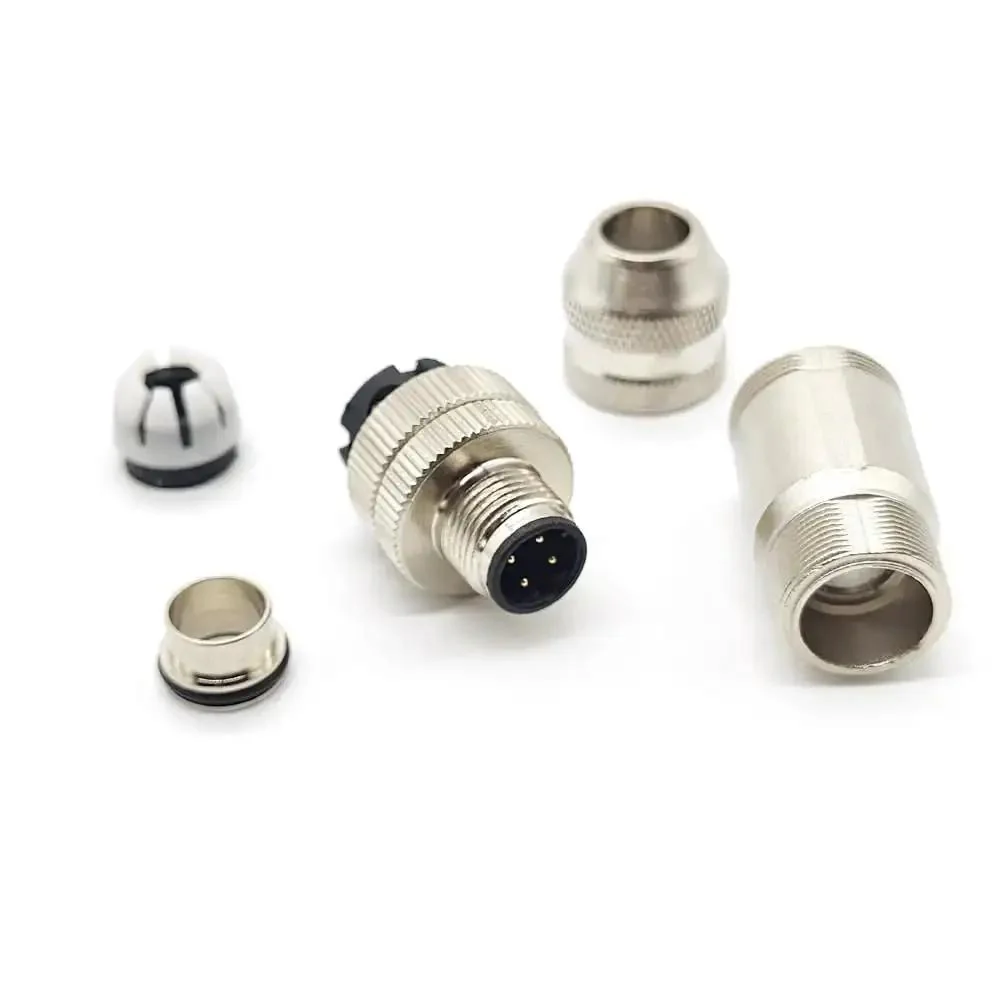

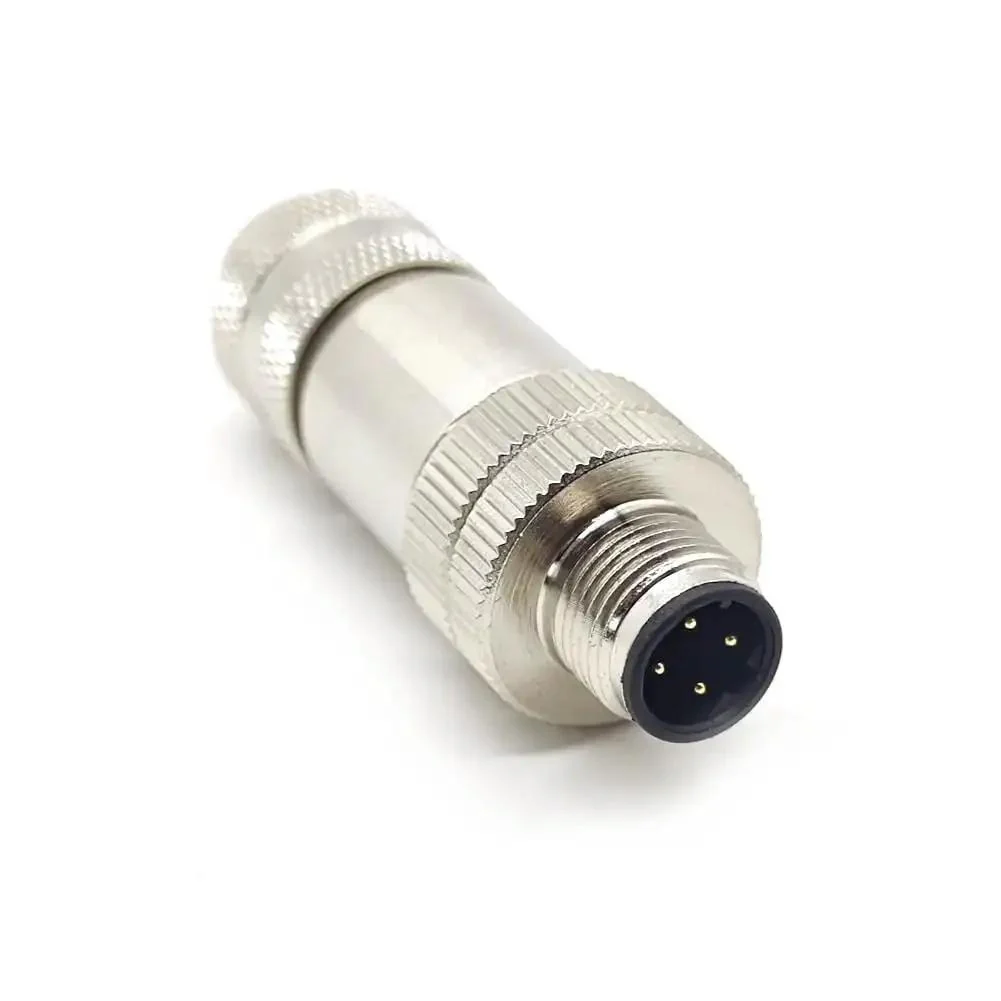

M12 D Code 4 Pin Male Connector With Rugged Shielded Metal Shell Circular Field Assembly IP67 Straight Adapter 250V 4A AC DC Connector For PG7 PG9 Compatible

M12 D Coding 4-Pin Shielded Male Connector IP67 250V 1pc
✔️ Shielded metal shell, IP67, 4A at 250V, 4-pin D coding

The M12 4-pin D-code field-wireable connector is a rugged interface used to link sensors, actuators, cameras, and other field devices in industrial automation. Its shielded metal shell protects signals in harsh environments.

✅ Series: M12 4 Pin Connector
✅ Shield: shielded
✅ Connection Type: Field Wireable
✅ Coding: D Coding
✅ Termination Style: Screw-Joint
✅ Rated voltage: 250V
✅ Rated current: 4A
✅ Temperature range: -25°C to 85°C
✅ Protection Class: IP67
✅ Locking type: Screw terminals fix
✅ Connector contacts: Brass with gold plated
✅ Housing material: Metal Shell

💡 What is an M12 D coding connector used for in industrial automation? It's a handy way to reliably connect field devices in rugged setups. - handy for sensors, actuators, and cameras in automation - supports 250V and 4A with IP67 protection - quick field wiring via screw-terminal design - compatible with standard M12 field wiring configurations
