Micro Linear Servo Actuator With Built-In Force Sensor For Robotics And Automation, Stroke 16 Millimeters, 11 Lbs Force, Top Speed 38 mm Per Second, Coreless DC Motor, Pro-Grade All-In-One Precision Position And Force Feedback For Medical Equipment

Single-unit Micro Linear Servo Actuator with Force Sensor
✔️ Stroke 16 mm, 11 Lbs max force, 38 mm/s top speed, force sensor

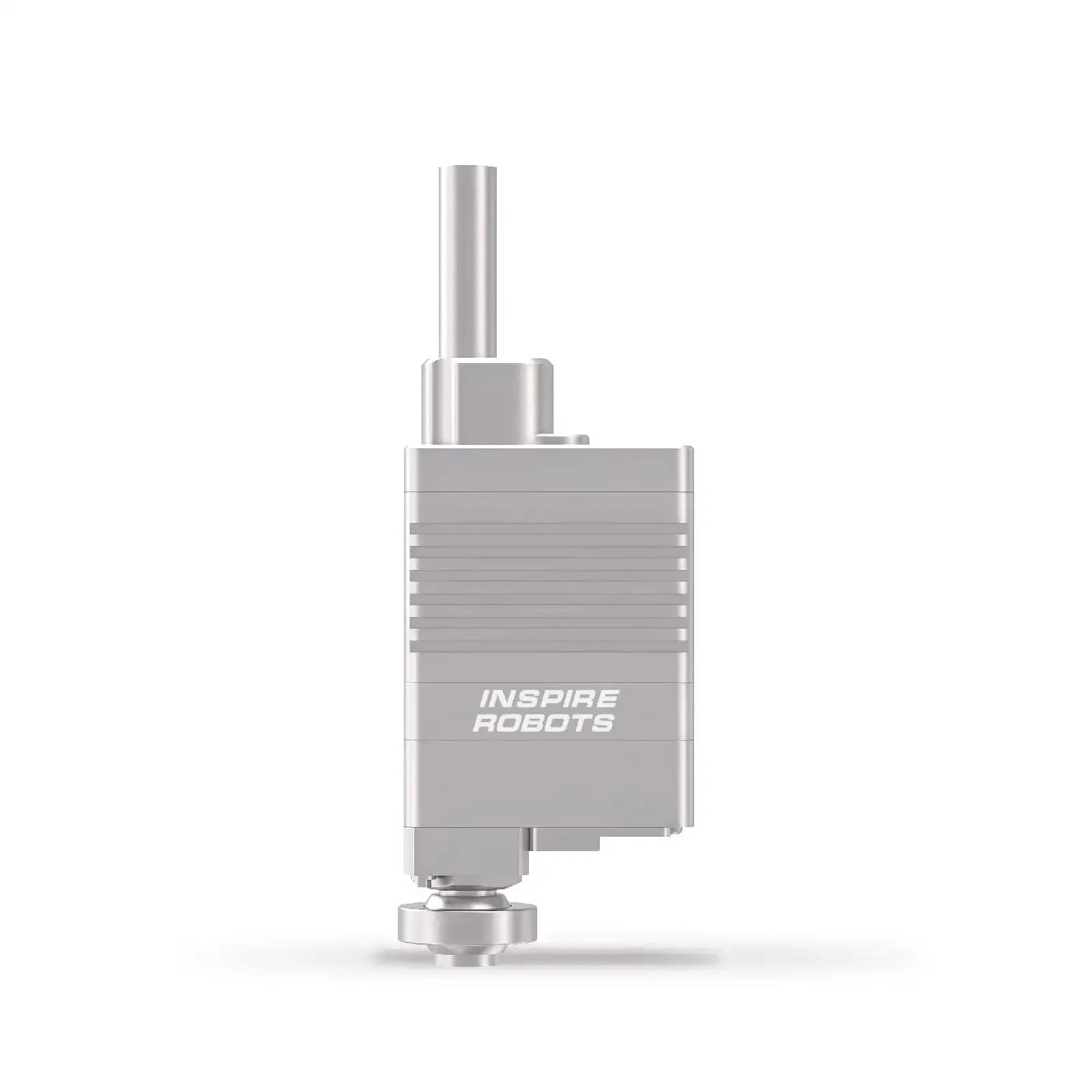

The LAF16 micro linear servo actuator is a compact, all-in-one motion unit that merges precision position sensing with real-time force feedback. It’s ideal for tight spaces in robotics, automation, medical equipment, and lab devices where accurate control matters.

✅ Stroke: 16 mm
✅ Max force: 11 lbs (49 N)
✅ Top speed: 38 mm/s
✅ No-load speed: 38 mm/s
✅ Repeat position accuracy: 0.03 mm
✅ Size: 40.5 x 24.8 mm; weight 27 g
✅ Load capacity: 105 N; self-locking: 150 N after power loss

💡 What is a micro linear actuator used for in automation and robotics? Handy compact motion unit that delivers precise position and force feedback in tight spaces.
- Enables precise push/pull control in medical devices and micro-assembly lines
- Provides real-time position data and force sensing for closed-loop control
- Fits space-constrained applications with small footprint and low weight
- Compatible with common control interfaces and sensor-ready designs
