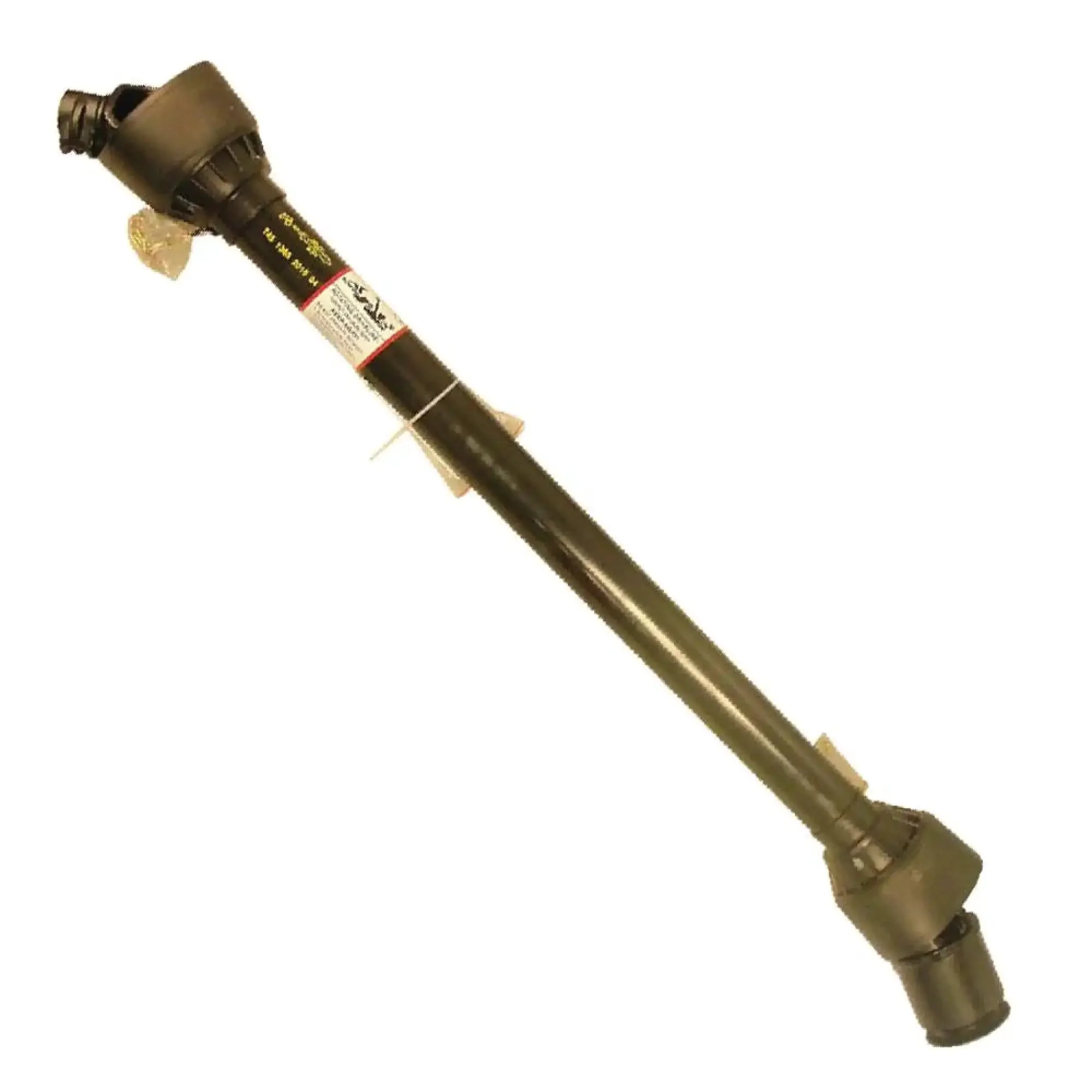

PTO Driveline Series Four Tri Tube Torque Limiter Heavy Duty 540 Rpm For Rotary Cutters And Implements, 53 Three Quarters Inch Collapsed Length, One And Three Eighths Inch Six Spline Push Lock Ring Ball Lock Coupler, Thirty Five HP Fits Bush Hog 2610

Torque-Limiter PTO Driveline: Tri-Tube, 540 RPM, 35HP
✔️ Tri-Tube PTO driveline, 53-3/4 in collapsed length, 35 HP rating, single unit

This Series 4 Tri-Tube PTO driveline with an integrated torque limiter is designed for 540 RPM tractors and heavy-duty rotary cutters and implements. It uses a 1-3/8" 6-spline push lock on the tractor end and a 1-3/8" 6-spline ball lock on the implement end, delivering dependable power transfer with built-in protection.

✅ Collapsed length: 53-3/4 in (1365 mm)
✅ Tractor end: 1-3/8 in 6-spline push lock coupler (34.9 mm)
✅ Implement end: 1-3/8 in 6-spline ring & ball lock with torque limiter (34.9 mm)
✅ RPM: 540; PTO HP rating: 35 HP
✅ Torque: 460 Nm at 540 RPM
✅ Tube type: Tri-Tube (triangular)
✅ Torque limiter: Integrated on implement end
✅ Universal joint material: 20Crmnti Carburized Steel

💡 What is a PTO driveline used for in farm equipment? This handy drive line connects a tractor to implements, enabling power transfer for cutting tasks. - Handy for powering rotary cutters and finish mowers - Protects drivetrain with torque limiter - Works with common 1-3/8" 6-spline connections
