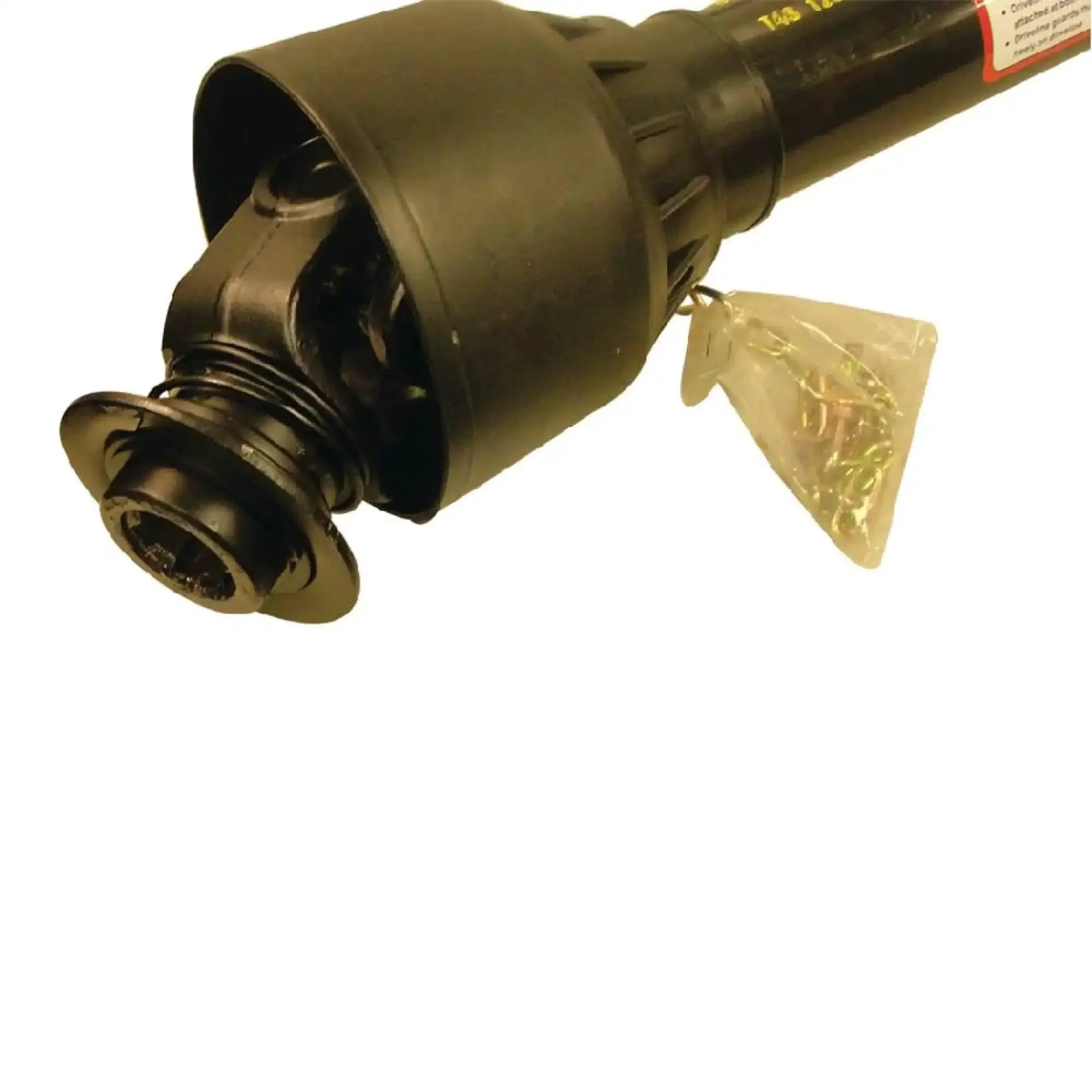

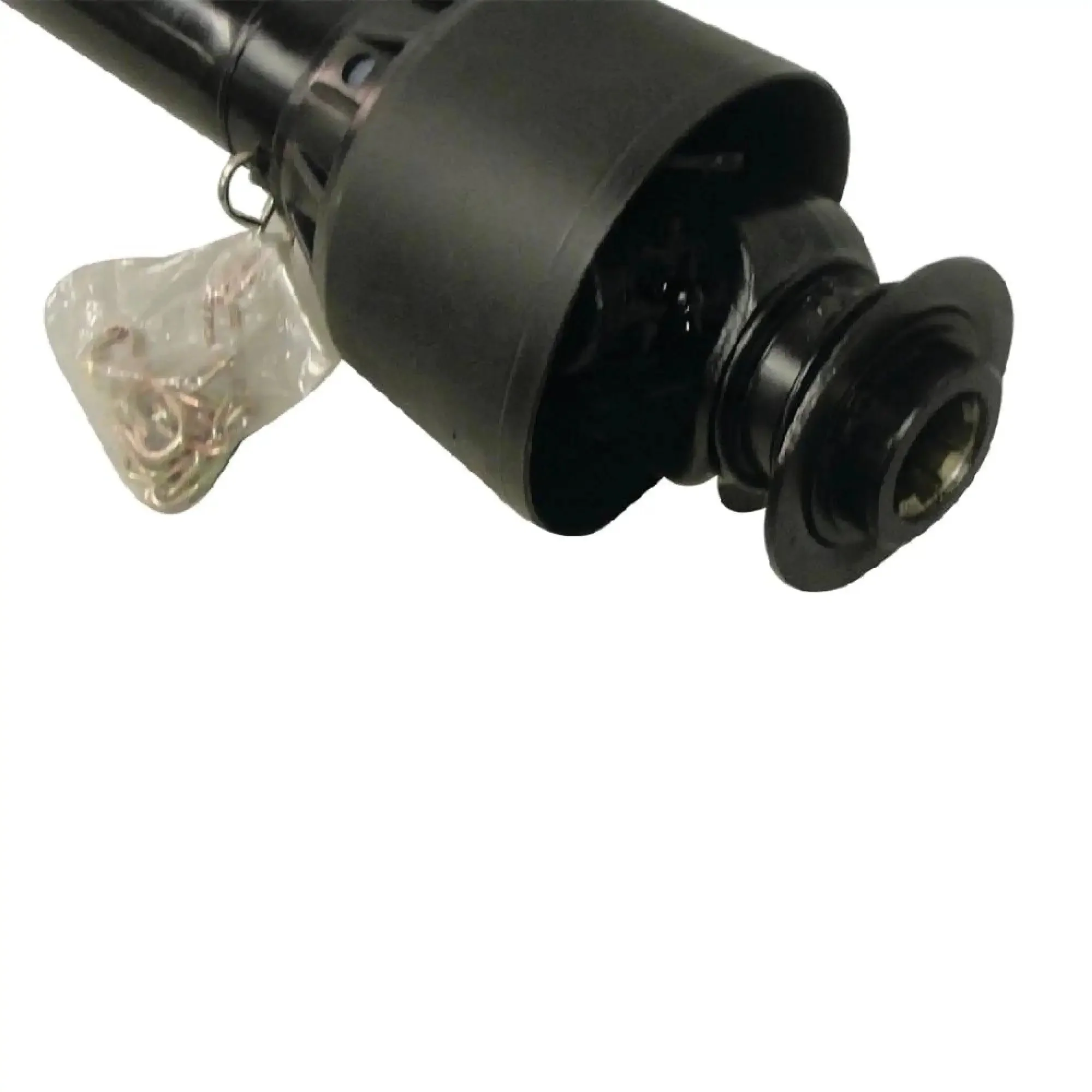

Pto Driveline Shaft Series 4 Tri-Tube 35 Hp 540 Rpm Compatible With Rhino Se5 Se7 County Line Rotary Cutter Finish Mower 48-7/16 Inches Long 1-3/8 Inches Spline With Ring And Ball Lock Both Ends 664316

PTO Driveline Series 4 Tri-Tube Shaft for 35 HP
✔️ Coll length 48-7/16 in; single shaft; 1-3/8 in 6-spline; 540 RPM

This PTO driveline shaft is a Series 4 Tri-Tube driveshaft rated for 35 HP at 540 RPM. It uses ring and ball lock fittings on both ends and fits 1-3/8" 6-spline inputs. It's a solid replacement for worn PTO shafts on Bush Hog, Land Pride, and Woods 540 RPM cutters and finish mowers.

✅ Type: PTO Driveline Shaft, Series 4 Tri-Tube
✅ Collapsed Length: 48-7/16 in (1,231 mm)
✅ Tractor End: 1-3/8 in 6-spline Ring & Ball Lock
✅ Implement End: 1-3/8 in 6-spline Ring & Ball Lock
✅ RPM: 540
✅ Pto Rated HP: 35 HP; Torque: 460 Nm @ 540 RPM
✅ Tube Type: Tri-Tube (Triangular)
✅ Connection Type: Ring And Ball Lock Both Ends
✅ Material: 20CrMnTi carburized steel

💡 What is a PTO driveline shaft used for in farm equipment?

This handy component transfers power from the tractor PTO to attached implements. - Handy for powering mowers, cutters, and finish mowers at standard 540 RPM. - Uses ring and ball lock ends for quick, secure connections. - Supports 35 HP and 460 Nm torque for reliable operation.
