PWM DC Brushed Motor Speed Controller 6V-90V, 8A Continuous Current (15A Peak), 0-100 Speed Control With 16kHz PWM, 0-5V Analog PLC Control, Reverse Polarity Protection, Perfect For DIY Robotics And Industrial Automation

Single-Unit PWM DC Speed Controller for 6-90V Motors
✔️ 6-90V input, 8A continuous (15A peak), 0-100% PWM control

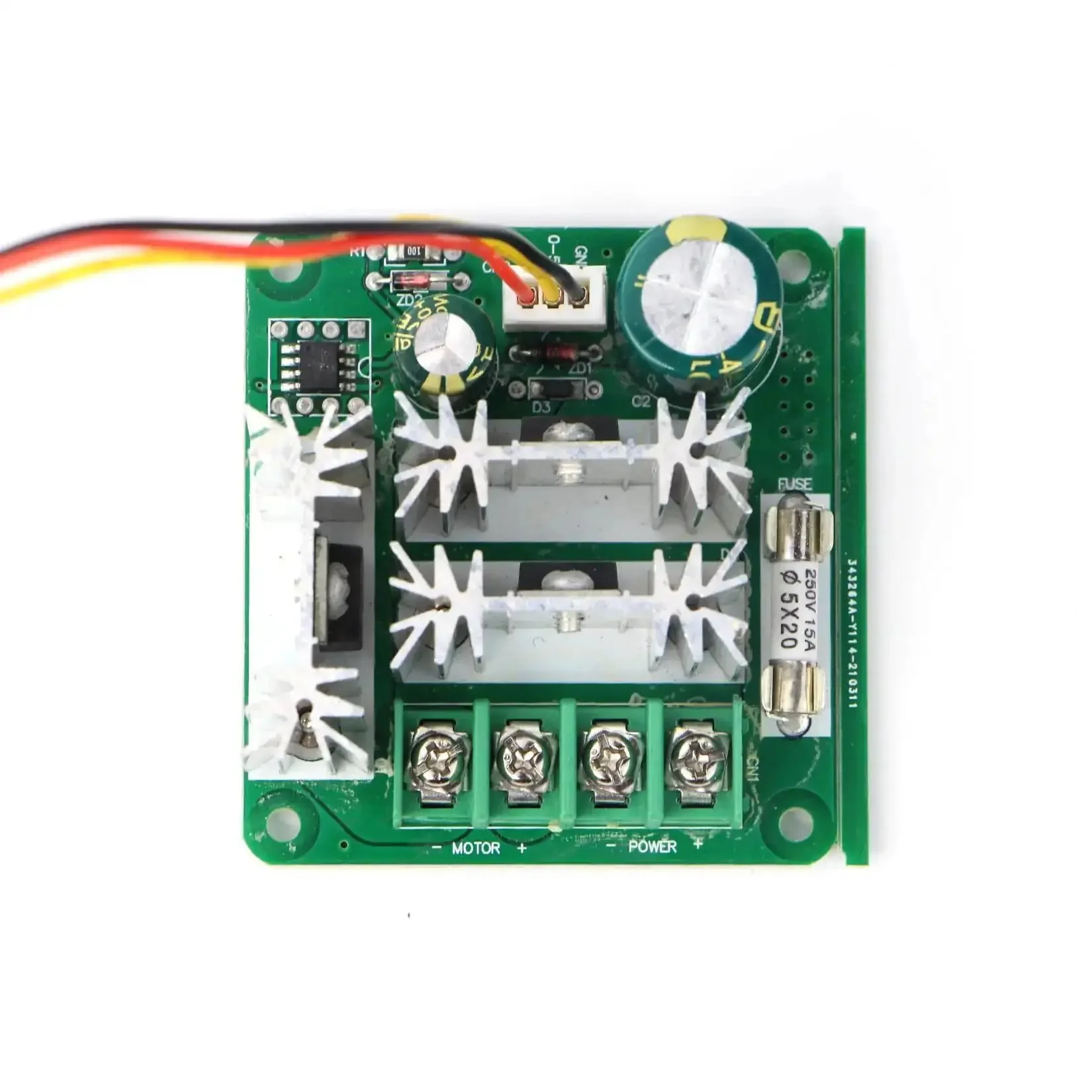

This compact PWM speed controller handles 6-90V DC brushed motors with 16 kHz PWM for precise, smooth speed control. It's ideal for DIY robotics, model vehicles, and light industrial automation.

✅ Wide voltage and current: 6-90V input, 8A continuous (15A peak), up to 720W
✅ 16 kHz PWM: 0-100% speed range for smooth torque

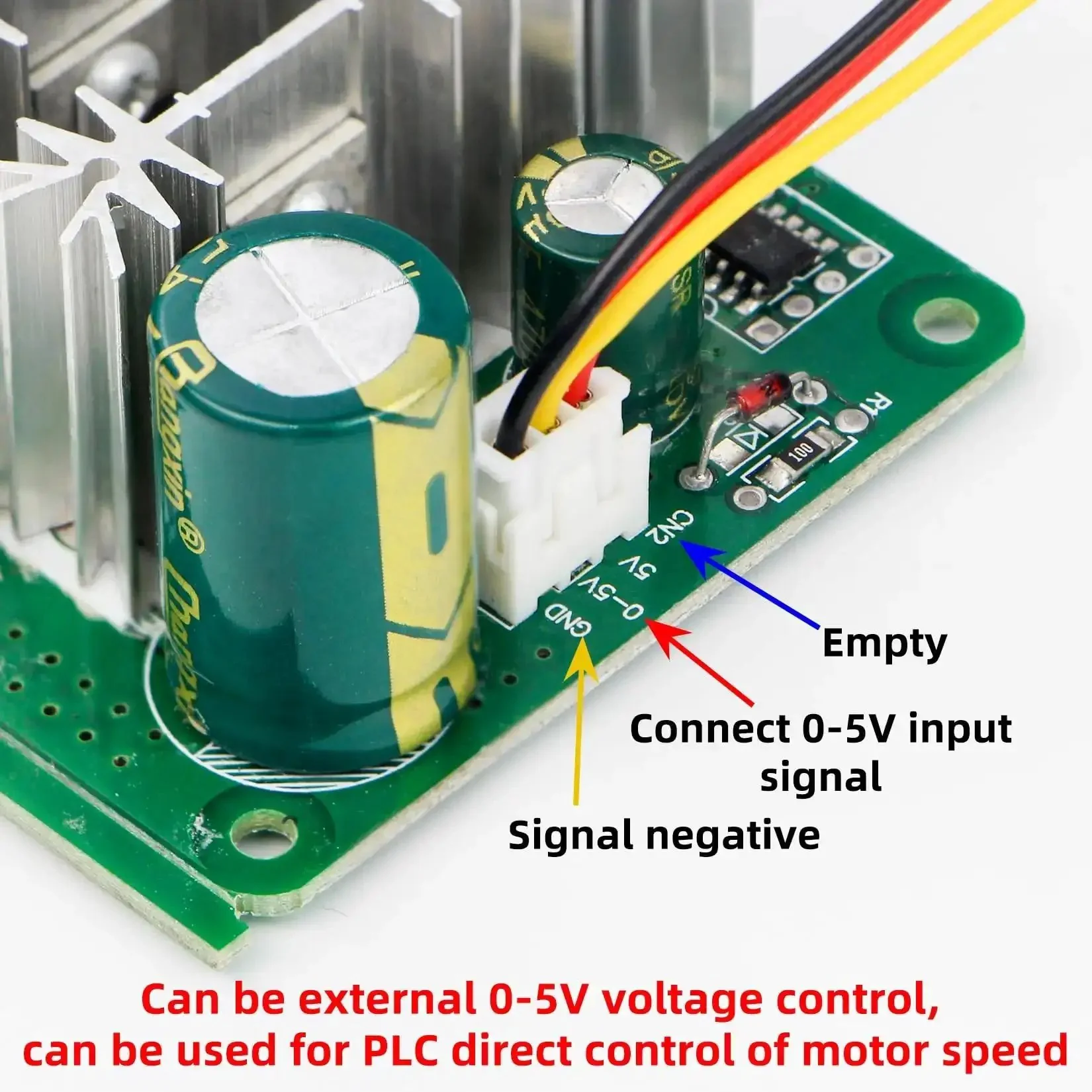

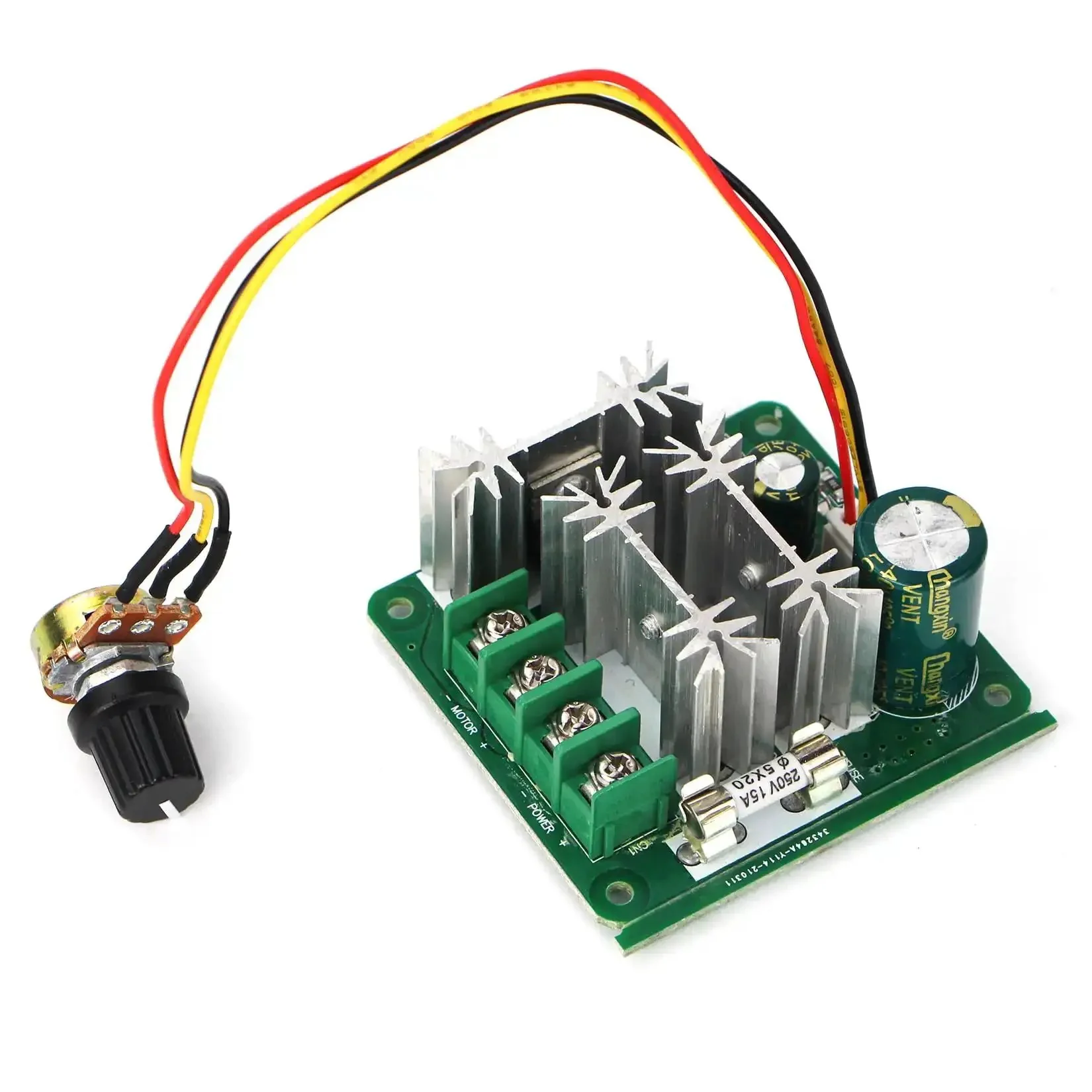

✅ Dual control modes: manual via B10K pot or 0-5V analog input for PLCs

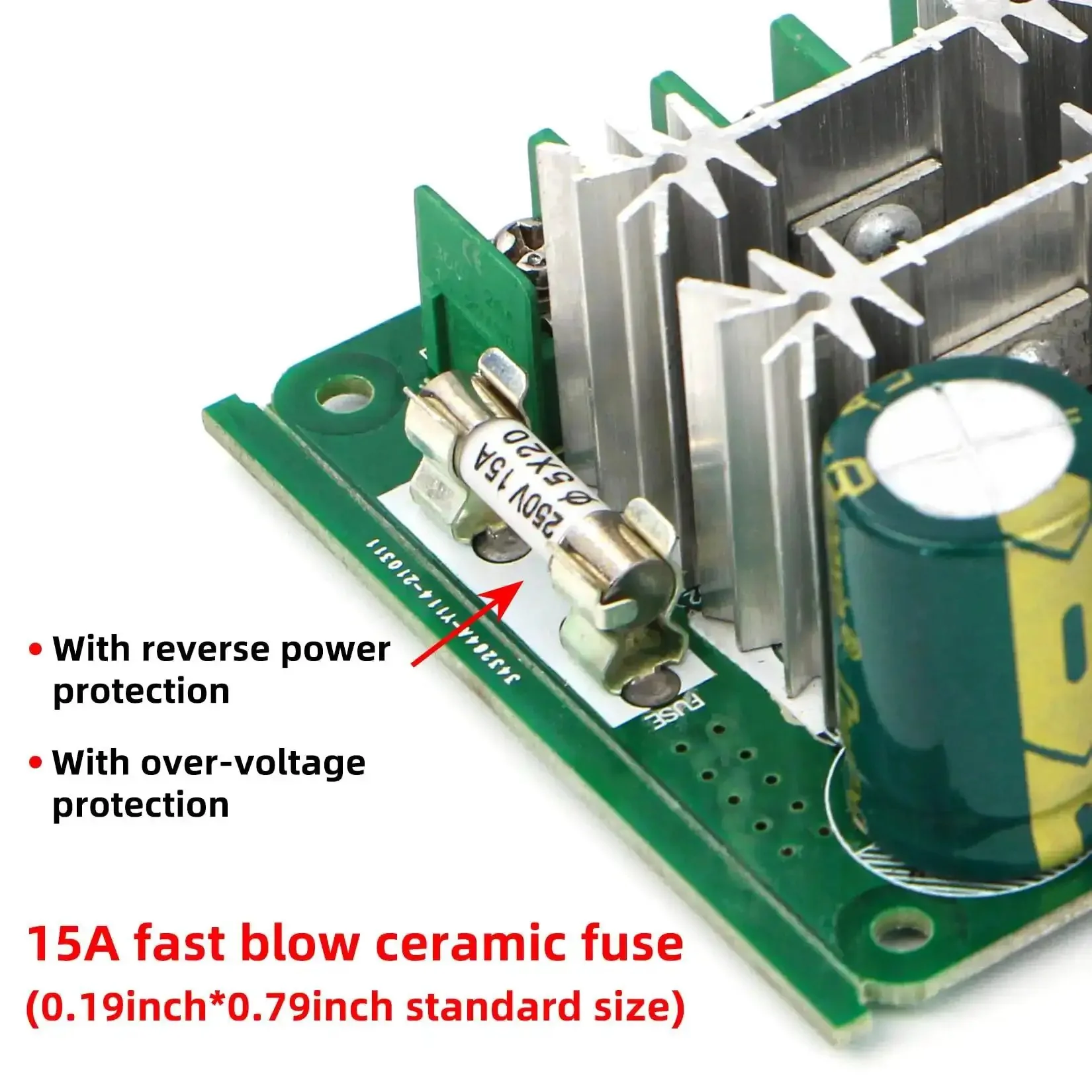

✅ Safety protections: reverse polarity, over-voltage, 15A fuse

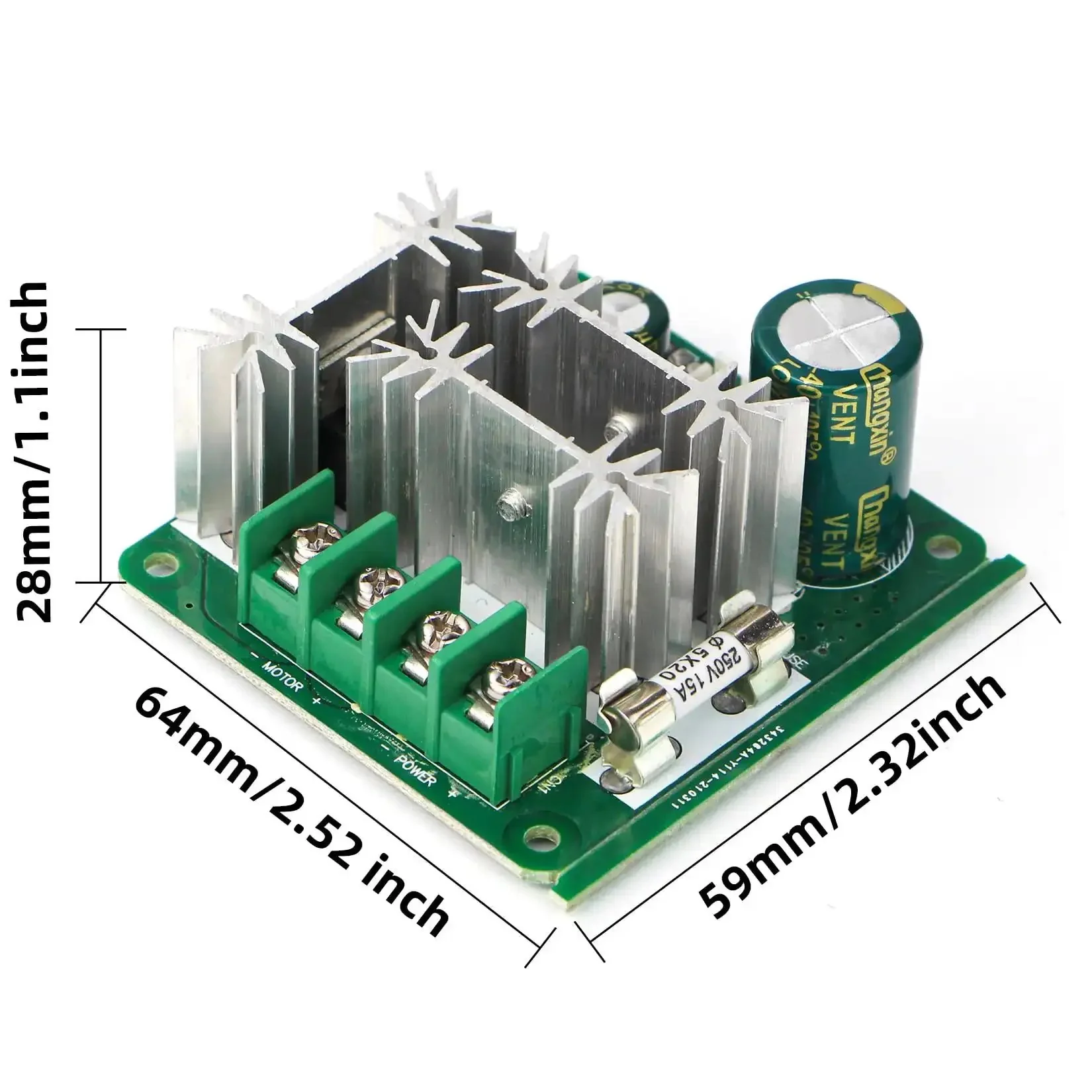

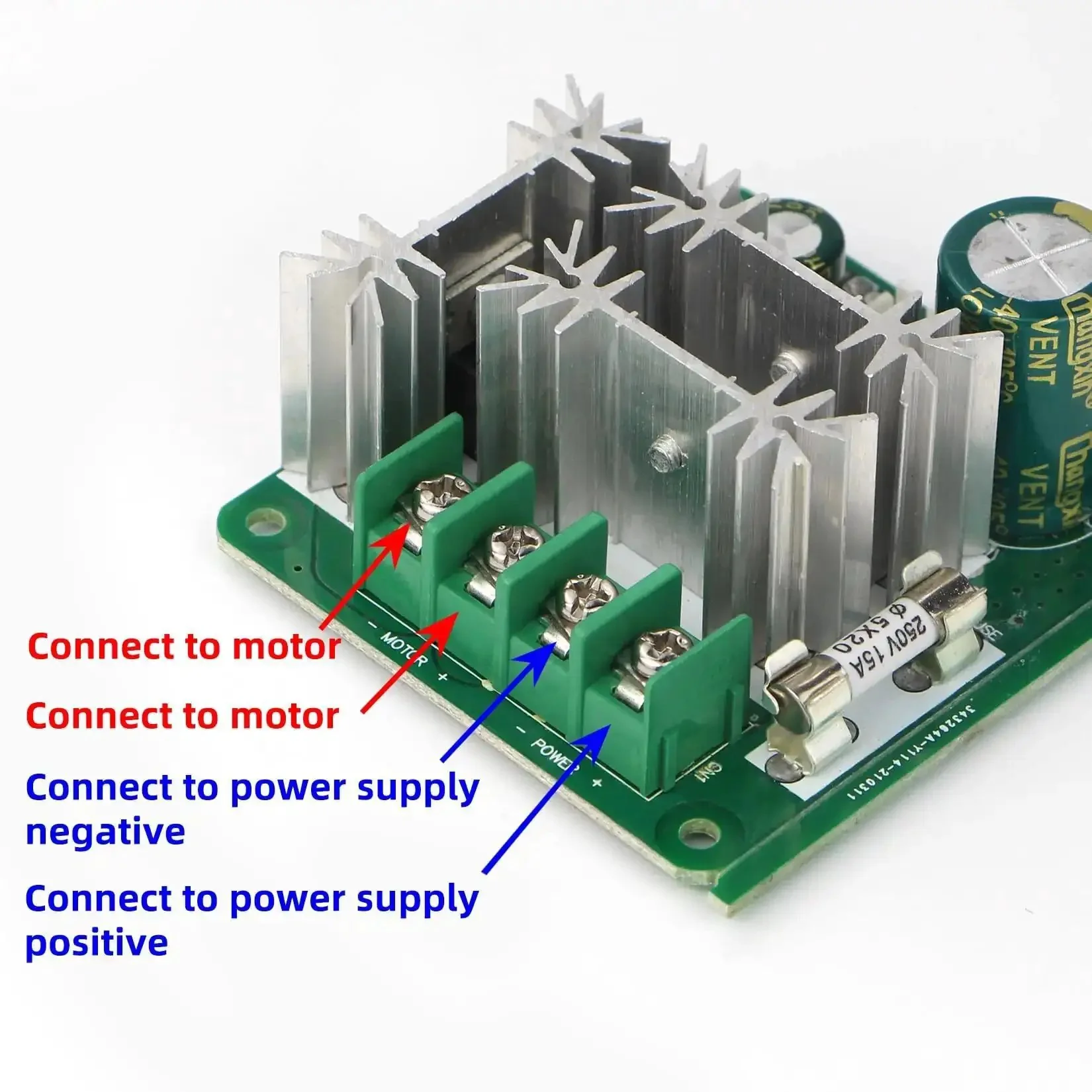

✅ Compact, lightweight design: 64 x 59 x 28 mm, 75 g; terminal block wiring
✅ Optional forward/reverse switch and low idle current for handy integration

💡 What is a PWM motor speed controller used for in hobby robotics and automation?

A handy device to adjust motor speed precisely and safely.

- 6-90V motor compatibility for DIY robotics
- 0-100% PWM speed control and 0-5V analog input
- Reverse polarity protection and fuse for safety
- Compact size for tight spaces and easy integration
