PWM To 0 To 10 Volt Converter Module For PLCs And Industrial Control Panels Digital To Analog Interface Converts 0 To 100 Percent PWM At 1 KHz To 3 KHz Into Stable 0 To 10 Volt Analog Output With Four Point Five To Ten Volt Input

PWM to 0-10V Converter Module for PLCs and Panels
✔️ Single unit PWM to 0-10V output, 12-30V supply, 1-3kHz input

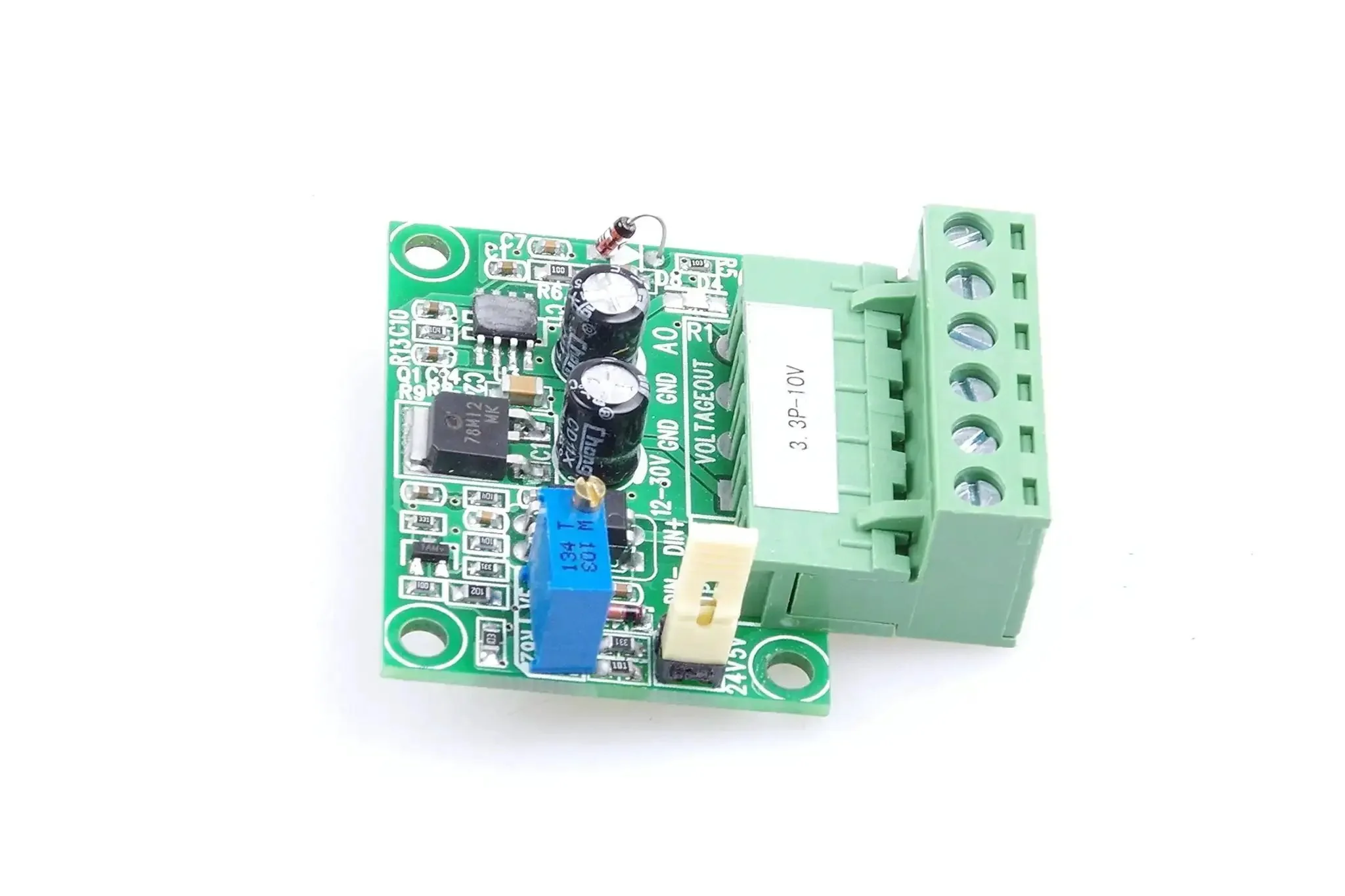

This compact module converts a PWM signal into a stable 0-10V analog output, ideal for PLC inputs and industrial control panels that require a clean, reliable signal. Used in automation and process control, it bridges digital PWM sources with analog controllers.

This PWM to 0-10V conversion module takes a PWM signal and produces a stable analog 0-10V output, suitable for PLC interfaces and industrial control panels where a digital control drives an analog input.

- ✅ PWM signal reception frequency: 1 kHz-3 kHz
- ✅ PWM input level: 4.5-10 V input; 5V or 24V jumper options
- ✅ Analog output range: 0-10 V, proportional to PWM duty cycle
- ✅ Power input: 12-30 V DC; mounting via 4 x M3 holes
- ✅ Power indicator LED and anti-power-supply protection for reliability

💡 What is a PWM to 0-10V converter used for in control systems?

- Handy for interfacing PWM sources with PLCs and analog controllers - Great for upgrading legacy equipment to modern control signals - Works with PWM at 1-3 kHz and accepts 4.5-10V or 12-24V logic levels
