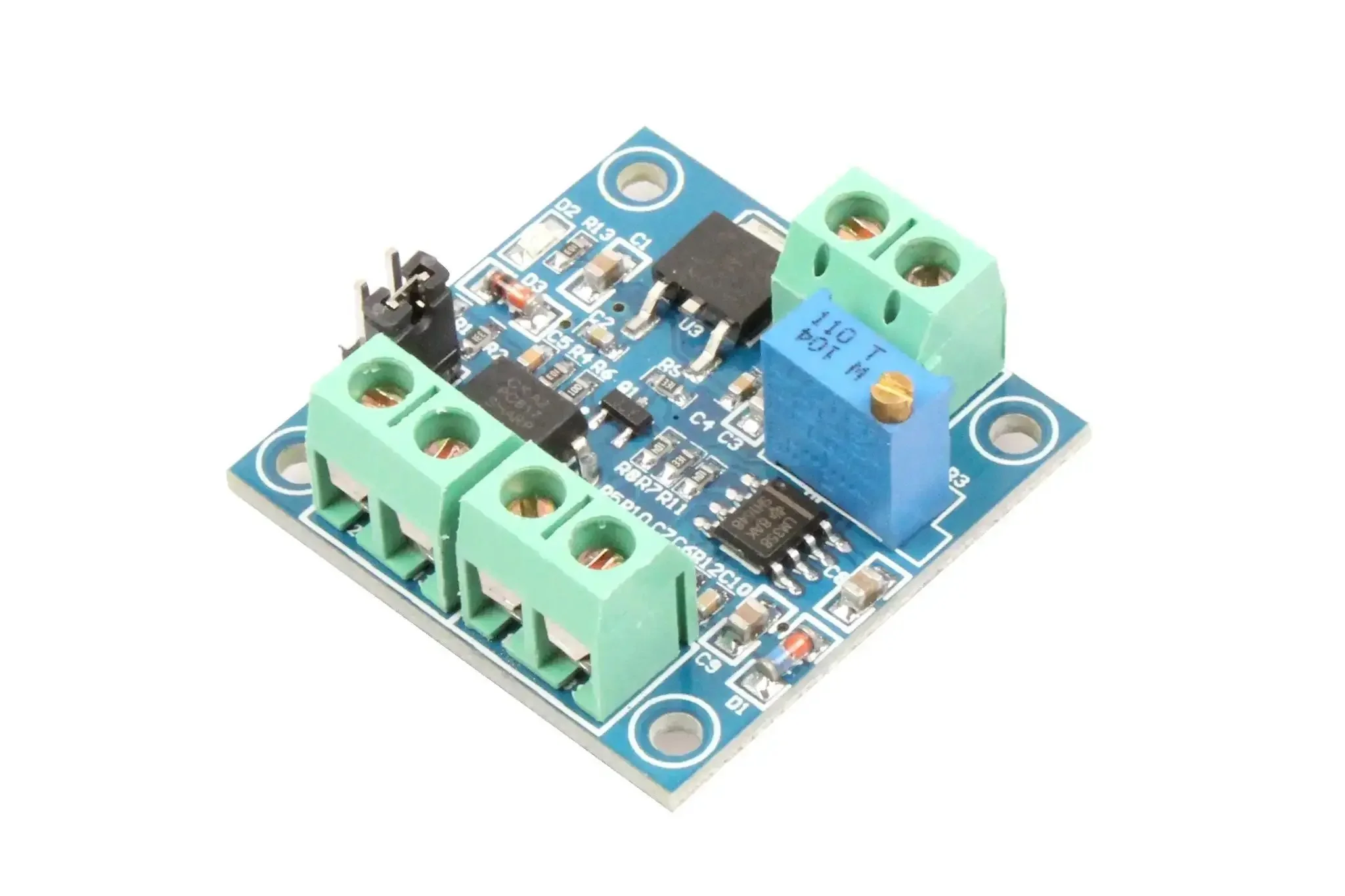

PWM To 0 To 10V Analog Converter Module For PLCs And Industrial Control Boards Converts PWM Signals Into 0 To 10 Volt Analog Output 0 To 100 Percent Duty Cycle Easy Signal Interface Switching Compact And Reliable

PWM to 0-10V analog output converter for PLCs, 1pc
✔️ 12-30V DC input, 0-10V output, 1-3kHz PWM range

This compact PWM to voltage module converts PWM digital signals into a 0-10V analog output, making it suitable for PLCs and industrial control boards that require an analog control input. It’s compact, easy to mount, and designed to interface with common 12-30V DC supplies.

Key specs: ✅ Module working voltage: DC 12-30V; current over 100mA
✅ PWM signal receiving frequency: 1 kHz-3 kHz
✅ PWM input level ranges: 4.5-10V peak-to-peak with 5V jumper; 12-24V with 24V jumper
✅ Conversion range: 0-100% PWM to 0-10V output
✅ Accuracy: 5%
✅ Calibration note: first power-on, use 50% duty cycle to set 5.00V with potentiometer
✅ Package: 1 piece PWM to Voltage Module, blue

💡 What is a PWM to 0-10V converter used for in industrial control? Handy device explained: - Translates PWM duty cycle into a stable 0-10V control signal for PLC analog inputs - Helps connect digital controllers to analog input cards without using a DAC - Works with standard 12-30V supply and 1-3 kHz PWM for steady output - Calibrates easily on first power-up for accurate voltage reference
