PWM To Voltage Converter Module For PLCs And Microcontrollers, Converts 0 To 100 Percent PWM Into 0-10V Or 0-5V Analog Output From 3.3V, 5V, Or 24V Signals, Easy Plug In Industrial Control Panel Interface For Smooth Automation

PWM to Analog Output Converter for PLCs - 0-10V/0-5V, Pack 1
✔️ Converts 0-100% PWM to 0-10V or 0-5V output; supports 12-30V input.

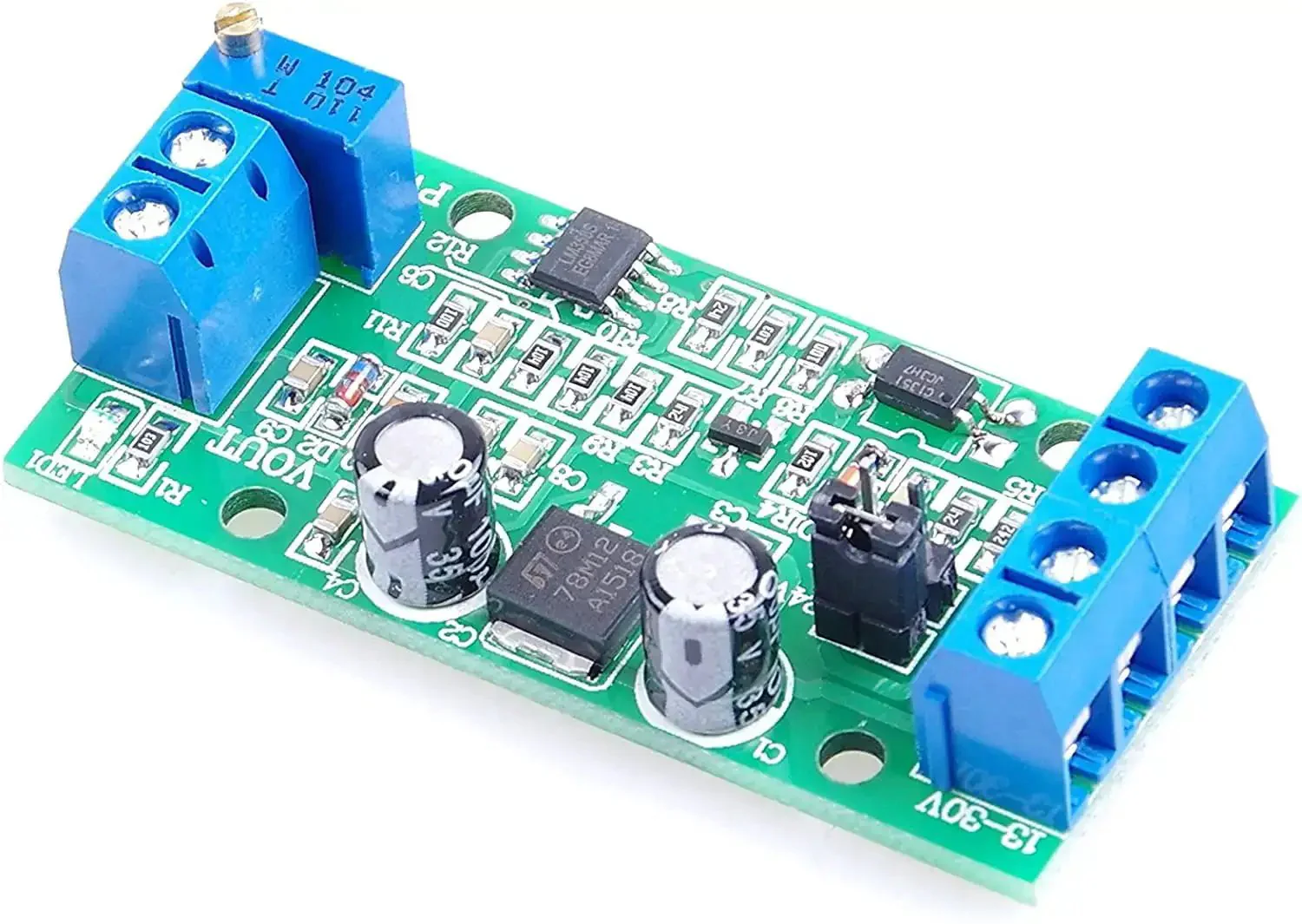

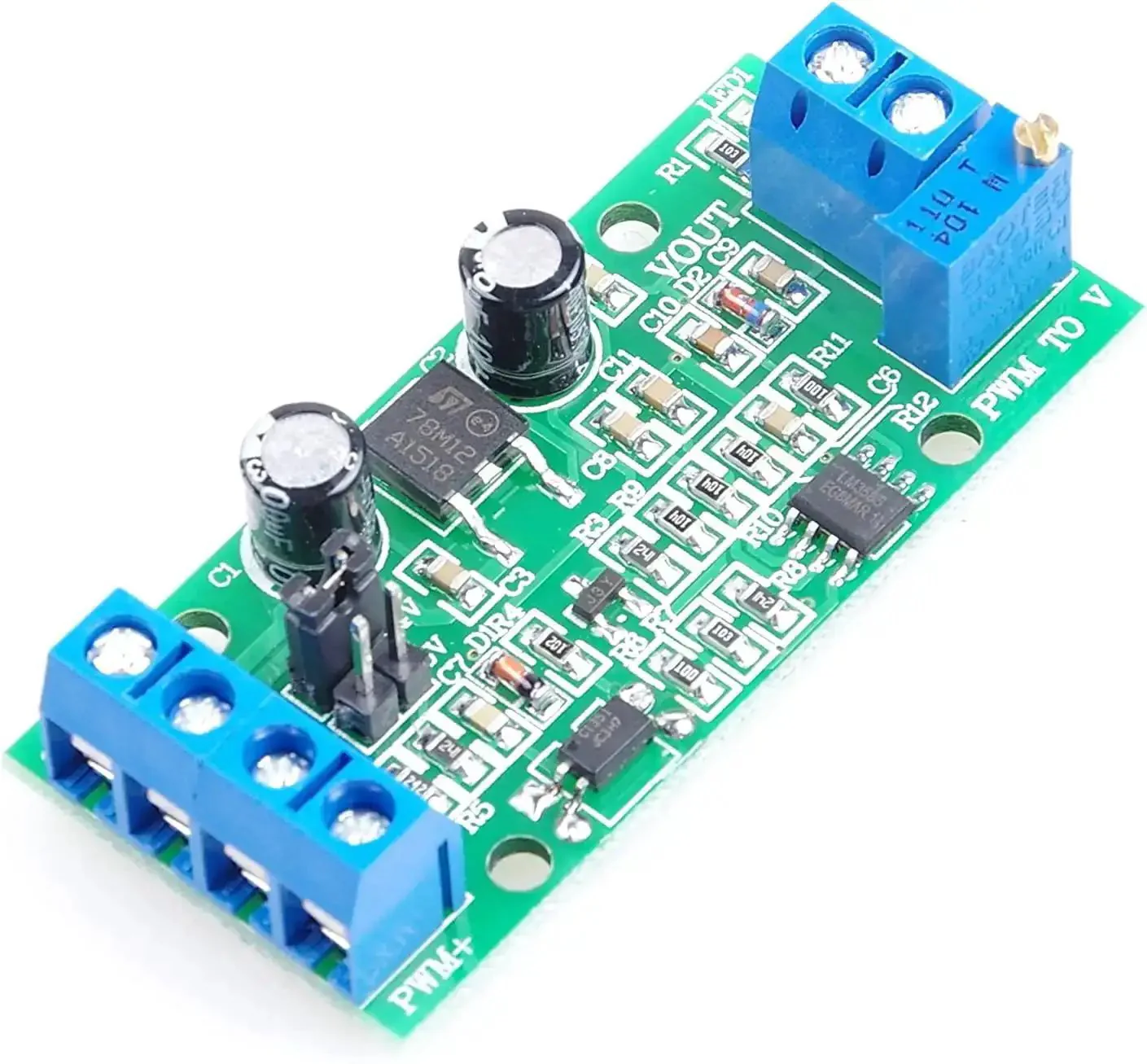

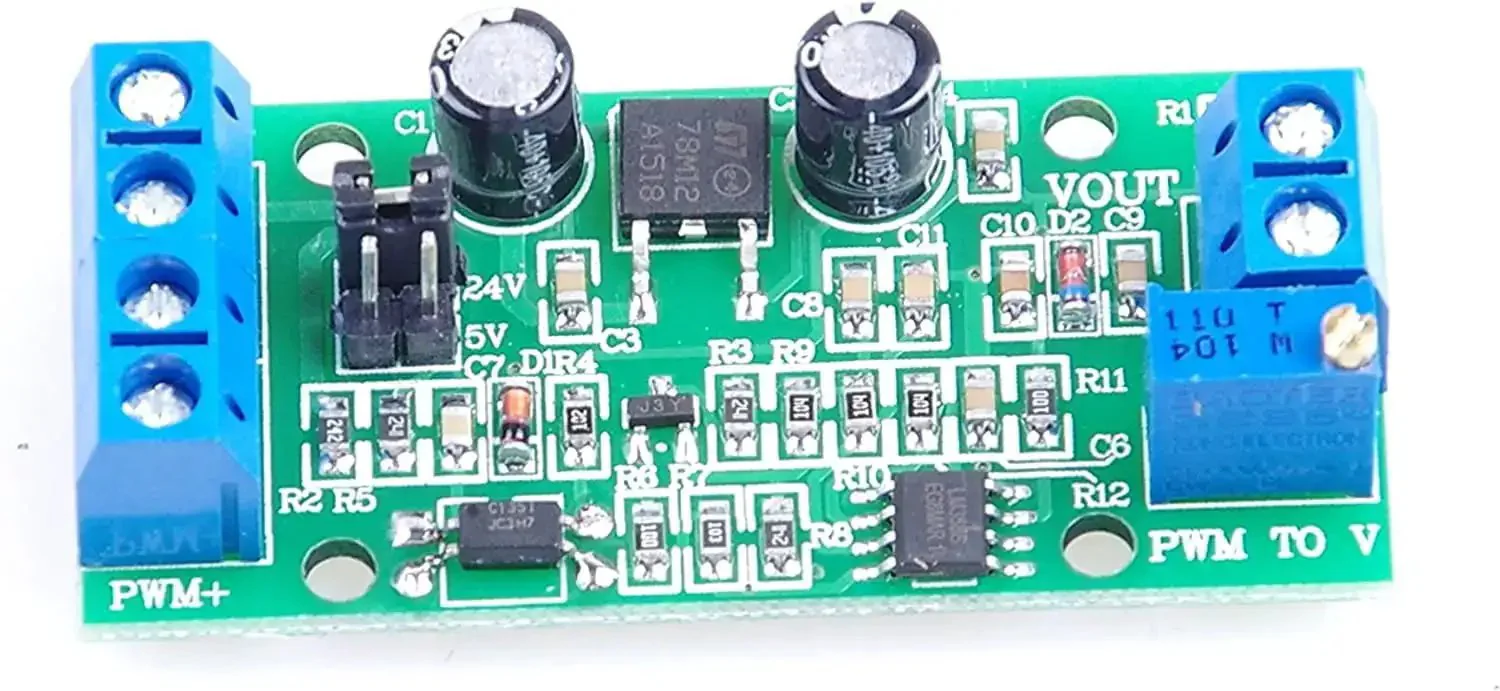

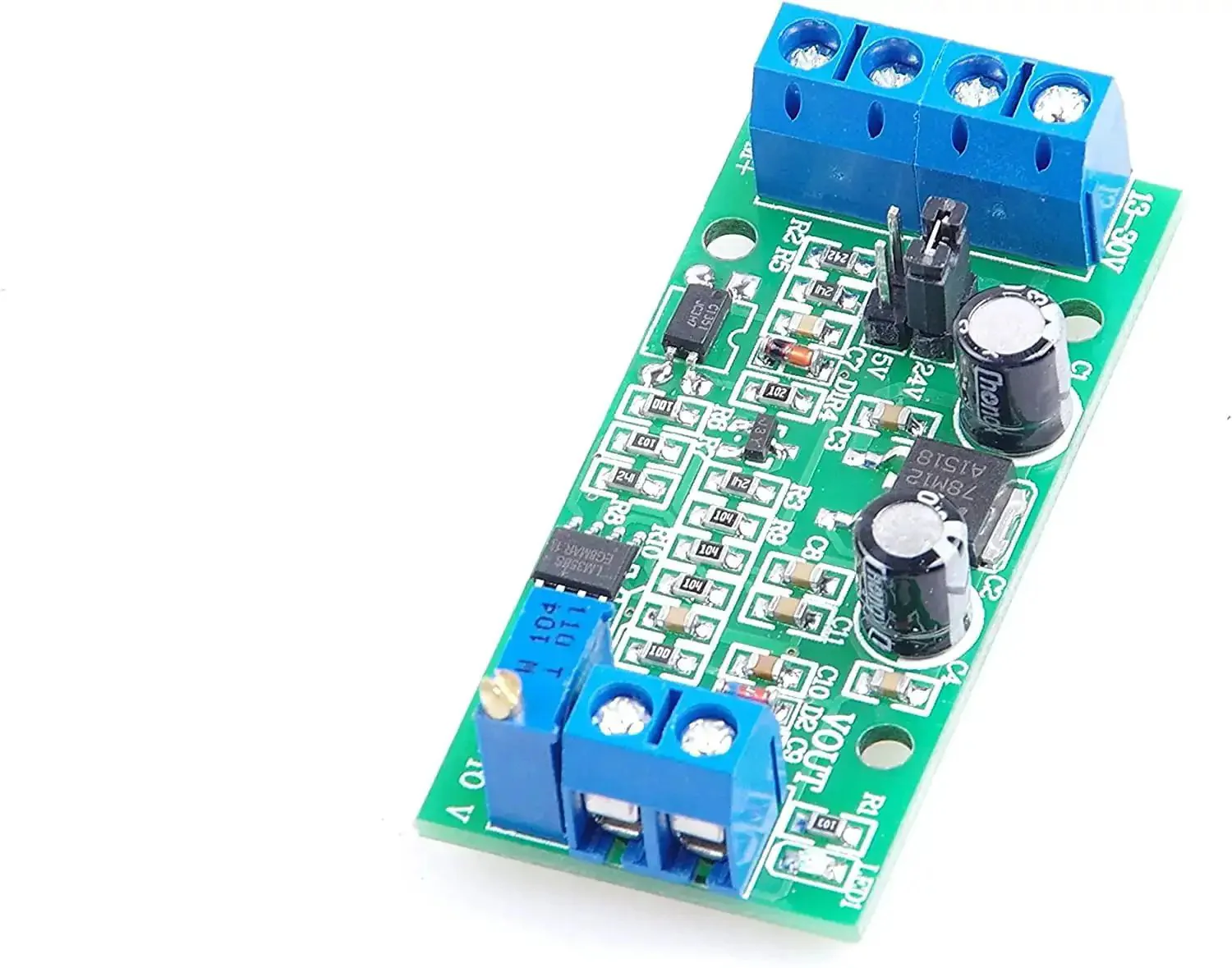

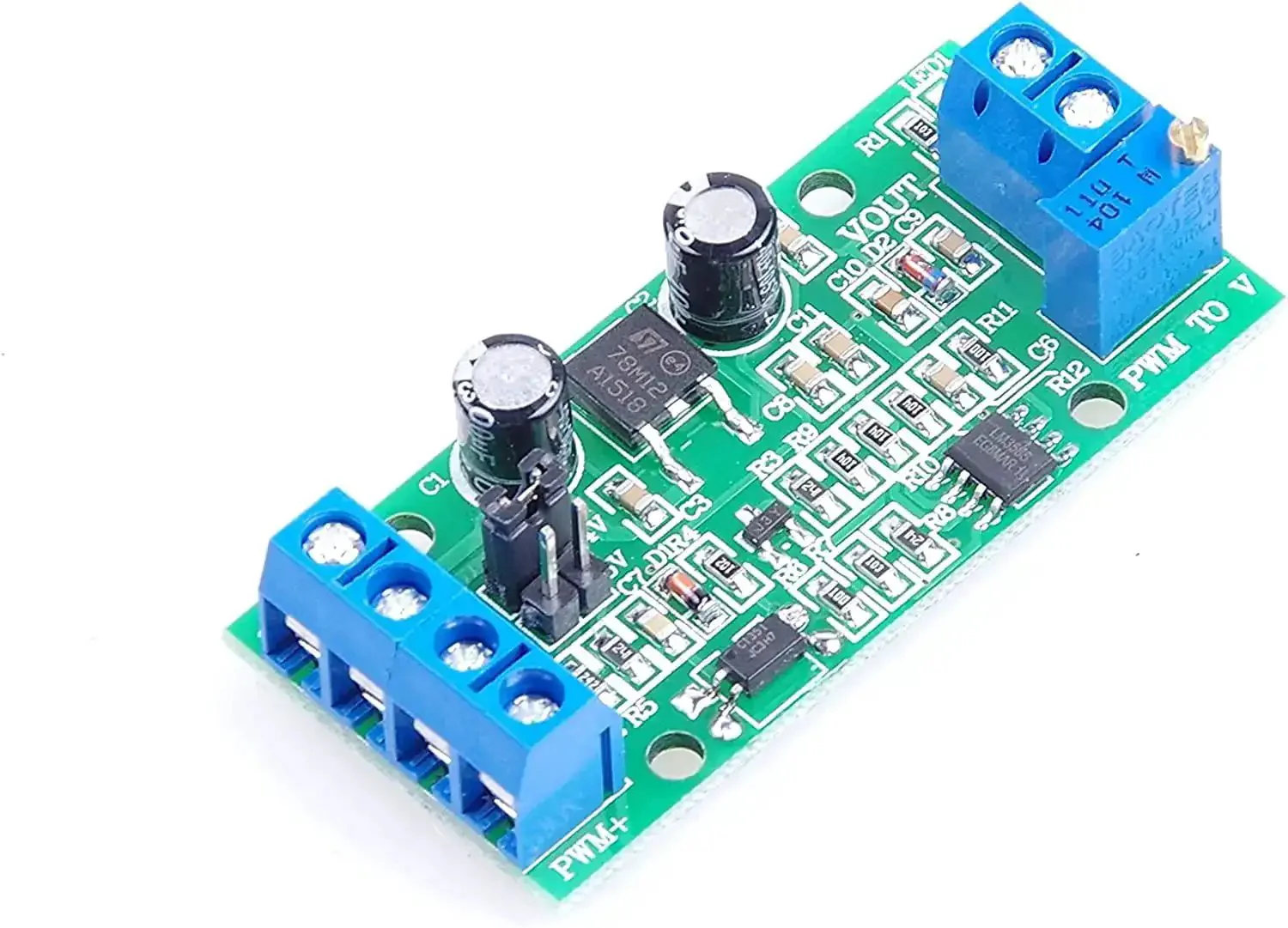

This PWM to voltage converter module turns a digital PWM signal into a stable analog voltage for PLCs, SCMs, and other industrial control panels. It accepts input PWM at 3.3V, 5V, or 24V logic levels and delivers a ready-to-use 0-10V or 0-5V output to drive analog devices.

✅ Input voltage: DC 12-30V; current draw >100mA
✅ Output configuration: 0-10V or 0-5V via jumper

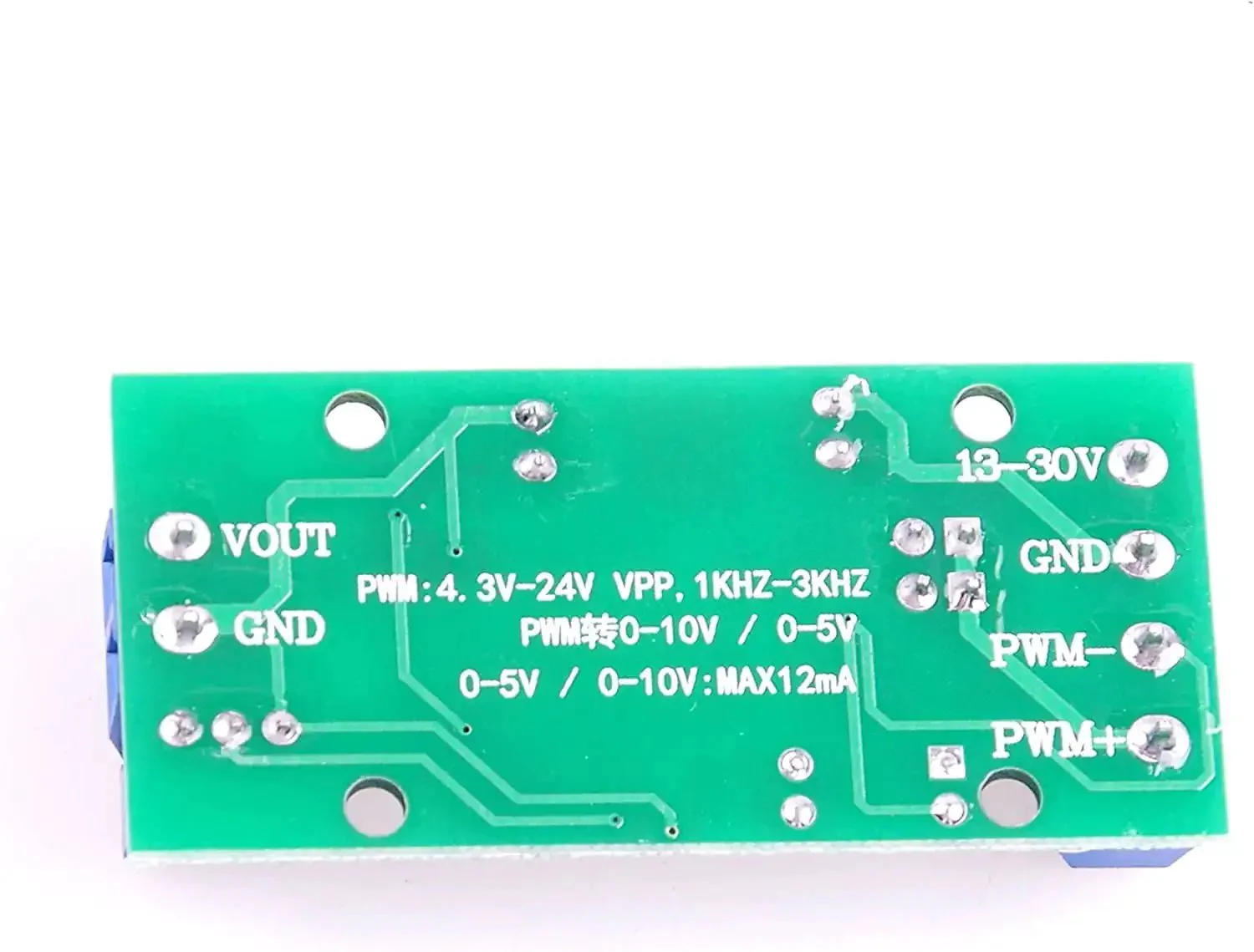

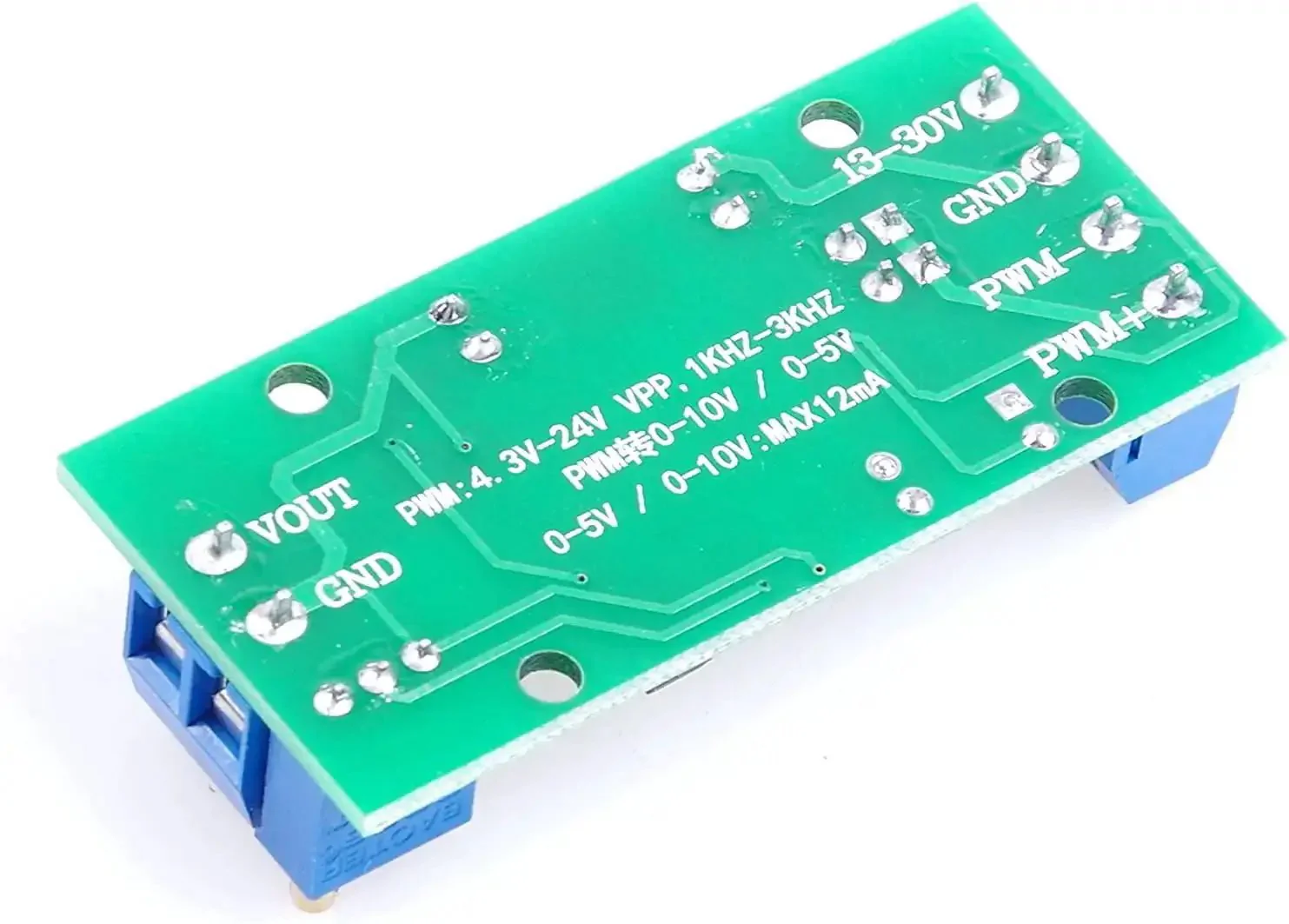

✅ PWM input frequency range: 100 Hz to 3 kHz (recommended 1 kHz-3 kHz)

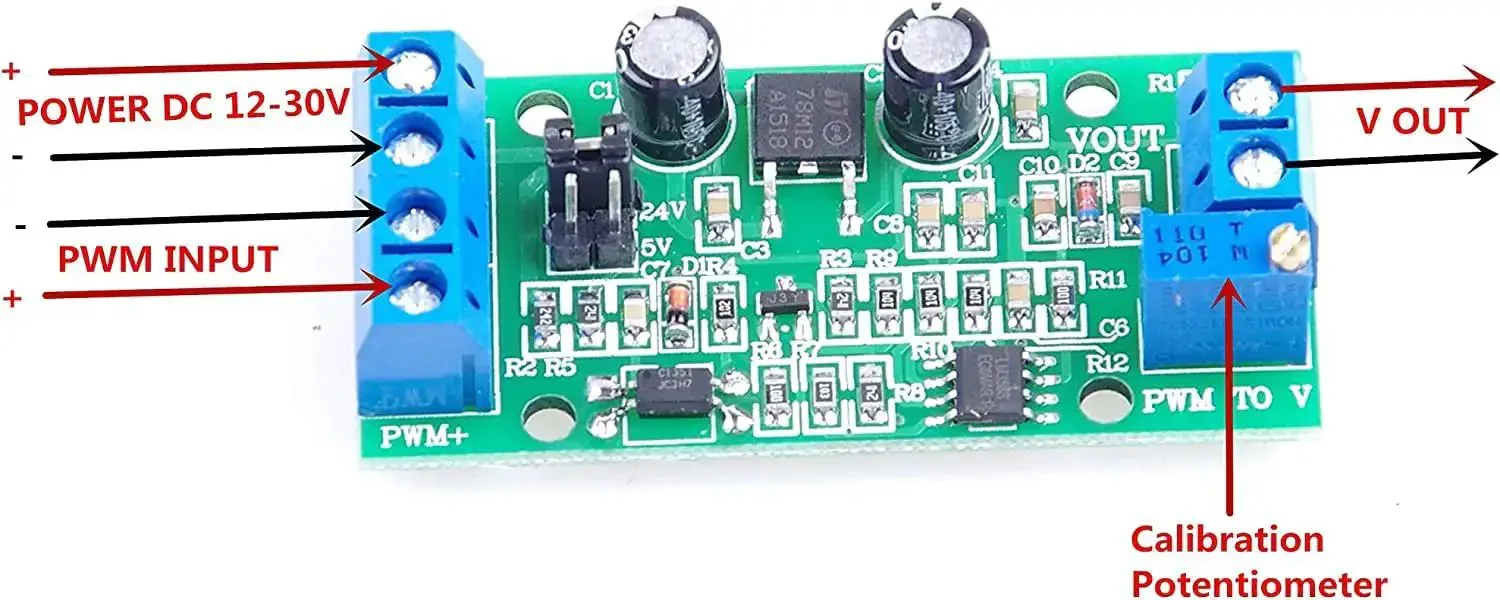

✅ Calibration notes: 50% duty gives mid-scale; target around 5.4V for 5V output during setup
✅ Size: 56 x 26 x 12 mm (L x W x H)
✅ Output current capability: up to 10 mA
✅ Power reverse protection for safe operation

💡 What is a PWM to voltage converter used for in industrial automation systems?

Used to bridge digital control signals and analog inputs on PLCs and process controllers.

• Bridges digital PWM with analog control needs for precise regulation
• Supports multiple input logic levels (3.3V, 5V, 24V) for flexible setups
• Provides stable 0-10V or 0-5V outputs to drive sensors and actuators
• Simple plug-and-play integration in control panels
