RS232 Breakout Tester LED Monitor Module With DB9 Male And DB9 Female, DB25 Male And DB25 Female Connectors For Serial Data Link Debugging, Master Slave Output, Easy In Line RS232 Cable Tester No Oscilloscope Needed

In-Line RS232 Breakout Tester with DB9/DB25 LEDs, single unit
✔️ Master/Slave inputs, 8-line LED indicators, plug-and-play

Designed as a simple inline test tool for RS232 data links, this LED monitor module plugs into a serial path to show real-time signal activity. It supports DB9 and DB25 connectors in male and female forms, making it handy for quick cable checks on laptops, PCs, and embedded systems.

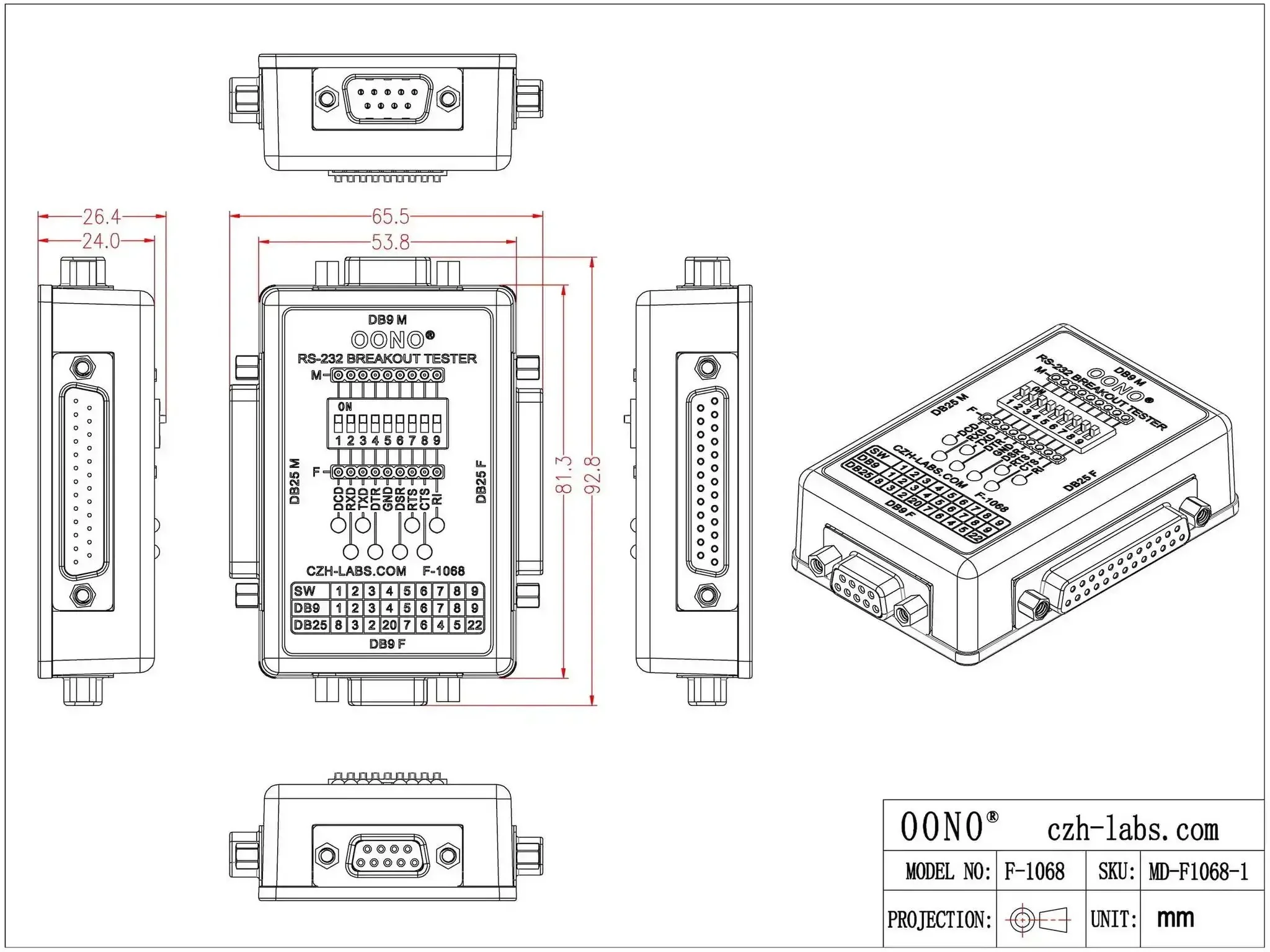

✅ DB9 male, DB9 female, DB25 male, DB25 female connectors
✅ 8 double-color LEDs indicate the 8 RS232 lines; green = HIGH, red = LOW
✅ Master Input and Slave Output operation for series testing
✅ DIP switch to disconnect/reconnect signals and support external probe test
✅ No external power or driver required; plug-and-play
✅ Color options: Black or White

💡 What is an RS232 breakout tester used for in electronics work? This handy tool helps confirm serial data link status without needing an oscilloscope. - handy for quick TXD/RXD state checks and data direction - helps verify DTE/DCE wiring and whether a null modem is needed - makes troubleshooting serial lines with DB9/DB25 connectors easy
