Six Pack 12 Amp 110V Electromagnetic Relay With Handy Test Switch LED Indicator 1NO 1NC SPDT DPDT 5 Pin Socket Base DIN Rail Mount Screw Terminal 110V Relay UL Listed CE Certified Compact Low Profile Design For Easy Panel And DIN Rail Mounting With

Six-pack 110V Relay Pack for DIN Rail Mounting 12A
✔️ 12A load at 250VAC/30VDC, UL/CE, 77.8×15.7×61.2mm

These compact electromagnetic relays are designed for quick panel or DIN rail mounting in control panels, automation systems, and industrial enclosures. They switch mains loads with an LED indicator to show status and offer reliable endurance for heavy-duty applications.

✅ Rated load: 12A at 250VAC / 12A at 30VDC
✅ Contacts: DPDT (1NO 1NC), 2 poles, 1 Form C
✅ Coil voltage: 110-120VAC; LED indicator red for AC, green for DC
✅ Endurance: mechanical 10,000,000 cycles; electrical 100,000 cycles

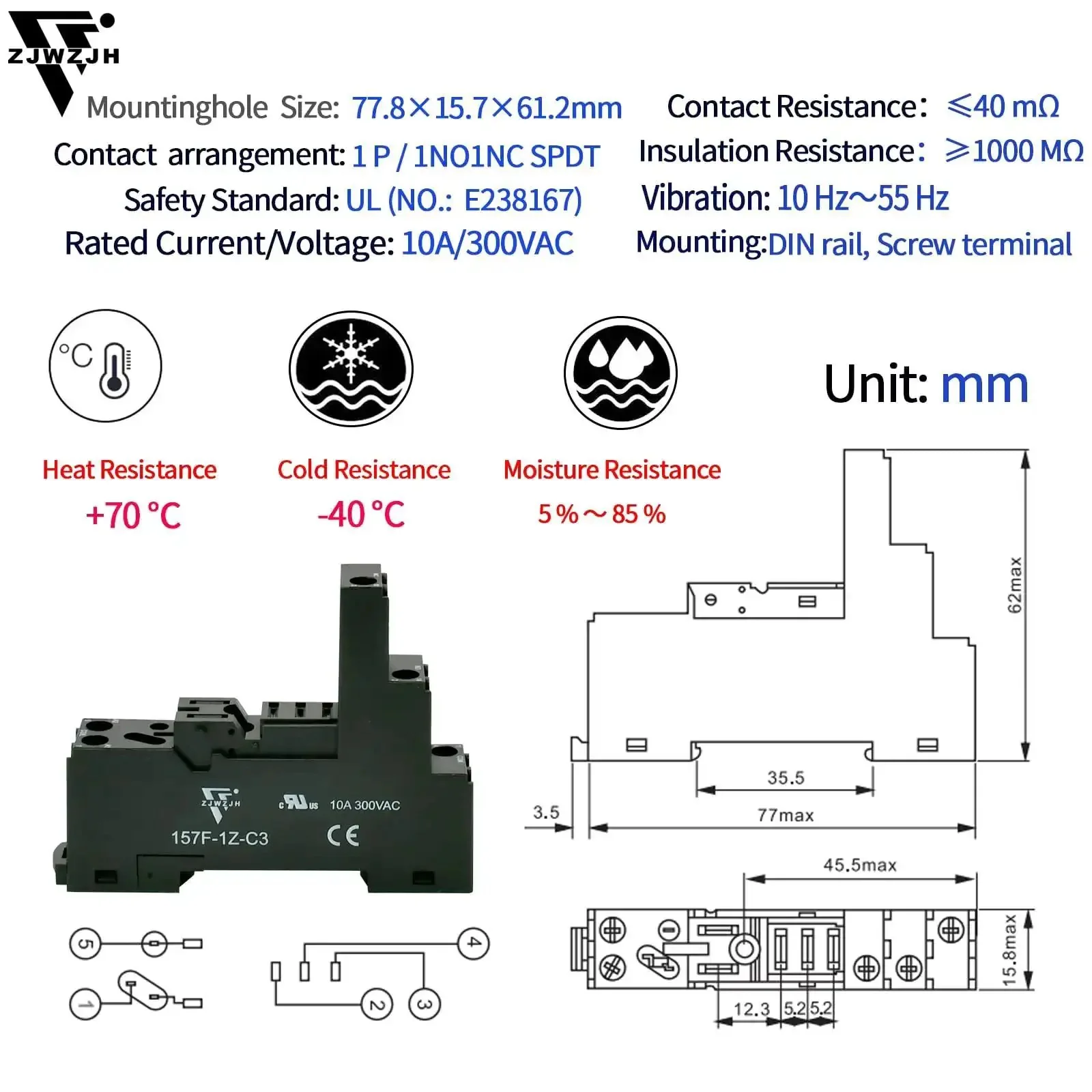

✅ Mounting: DIN rail and screw-terminal base; compact 38.8×12.6×30.4mm
✅ Package contents: 6 relays, 6 sockets, DIN rail, fixing clamps, screws

💡 What is a 110V electromagnetic relay used for in industrial control panels?

These handy devices act as switches to control high-power loads from a low-power control signal. - Handy for starting and stopping motors, heaters, and lights
- Provides electrical isolation between control circuitry and power circuits
- Works with DIN rail mounting for compact panel layouts
- Ideal for automation projects needing reliable, durable switching
