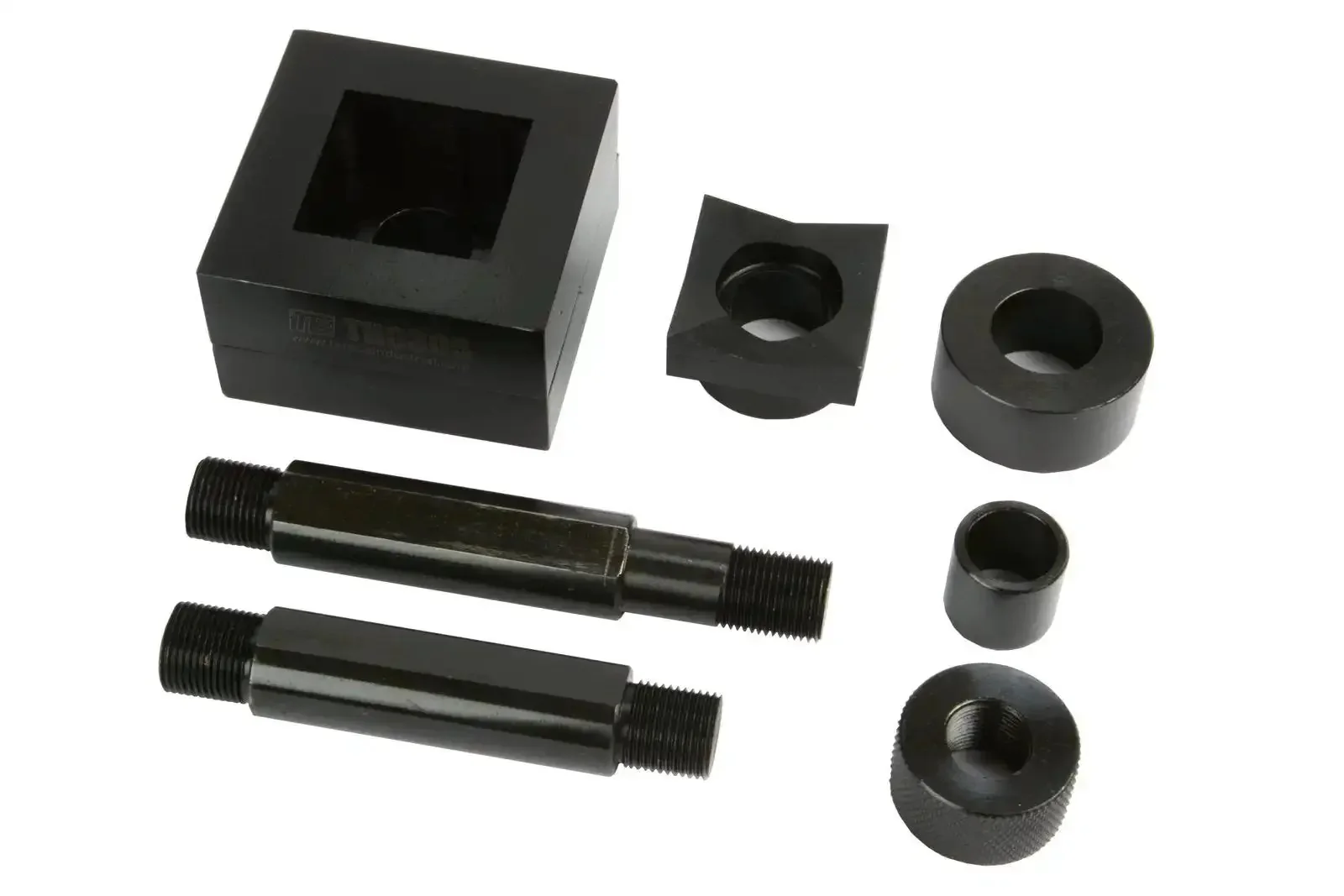

Square 45mm By 45mm One Sixteenth DIN Panel Punch Die Set With Draw Studs And Spacers Built For English And Metric Punch Sets 12 Ton Capacity Delivers Clean Precise Panel Openings Heavy Duty

Single 45x45mm DIN Punch Die Set with Draw Studs
✔️ 12 US ton capacity, 1/8 in (3.18 mm) thick steel capability, includes spacers

This square DIN punch die set punches 45x45 mm openings for 1/16 DIN panels. It fits English punch systems (3/4-16) or metric (20 x 1.5 mm) and includes draw studs and spacers for all specs.

✅ 12 US ton punching force
✅ Punching thickness capacity: 1/8 in (3.18 mm) steel, 1/16 in (1.59 mm) stainless
✅ Opens 45x45 mm (1/16 DIN) panels
✅ Includes draw studs and spacers for all specs
✅ Metal case with foam inserts for safe storage
✅ Compatible with TEMCo Industrial, Greenlee and other English/metric punch sets
✅ Requires hydraulic ram of at least 12 tons
✅ Works with steel, stainless, brass, copper, aluminum (soft alloys)

💡 What is a DIN panel hole punch die set used for in panel fabrication? - Handy for creating clean, precise openings in panels for meters, gauges, and process controllers - Works with both English and metric punch systems - Requires a hydraulic ram of at least 12 tons
