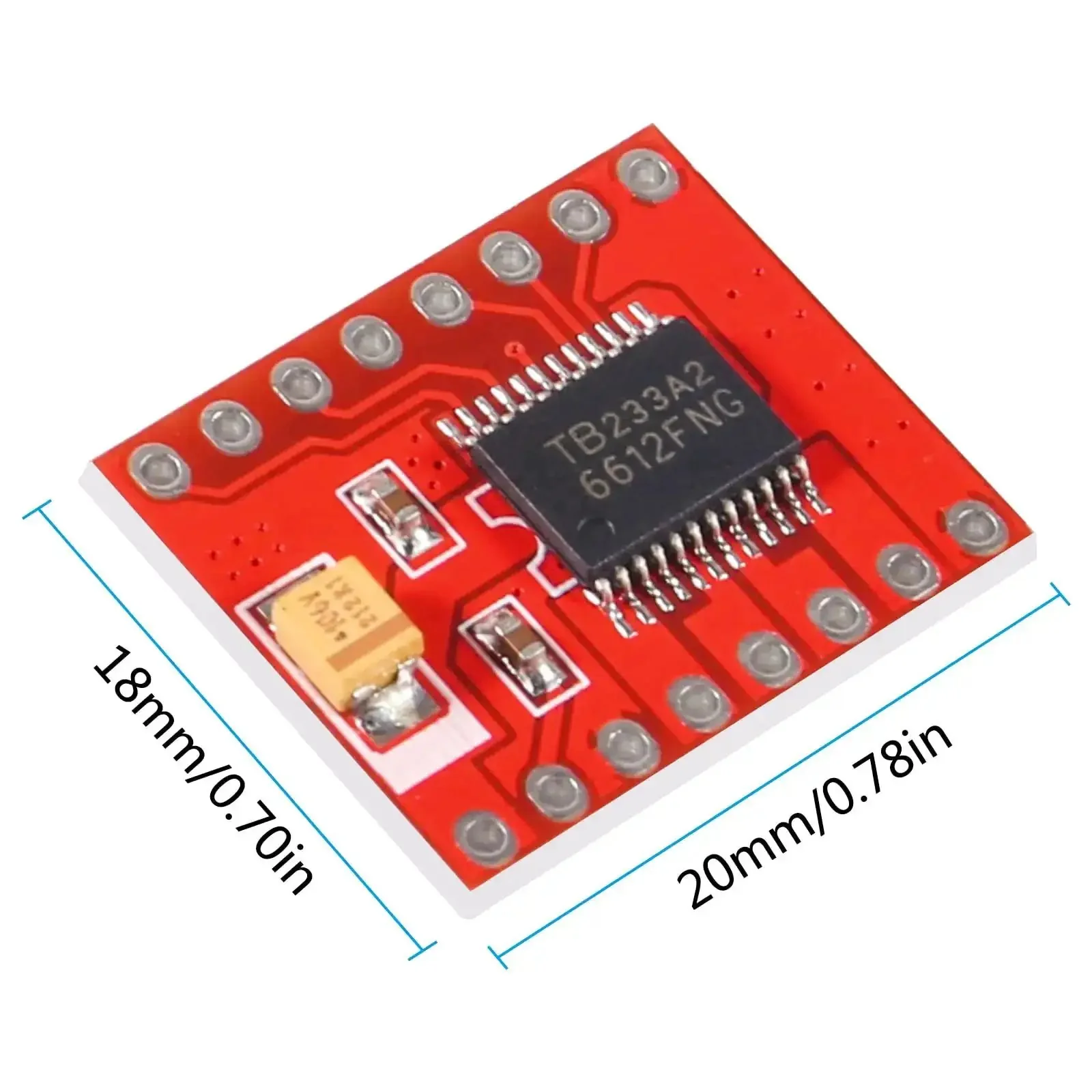

TB6612FNG Dual DC Motor Driver Module For Two Motors With 1.2A Continuous And 3.2A Peak Current, CW CCW, Short Brake, Over Current Protection, A Beefed Up Upgrade Over L298N For Robotics Projects

Dual TB6612FNG motor driver module - 2-channel unit
✔️ 1.2A continuous / 3.2A peak per channel, CW/CCW control

Compact dual motor driver for hobby robotics, offering a beefed up upgrade over L298N. It powers two DC motors from a microcontroller with protection and simple direction control, great for Arduino or microcontroller projects.

✅ Output current per channel: 1.2A continuous; 3.2A peak
✅ VM up to 15V; VCC 2.7-5.5V input compatibility
✅ Protection: over-current, short-circuit, under voltage lockout, over temperature
✅ Control: CW/CCW, brake and stop modes for precise motion

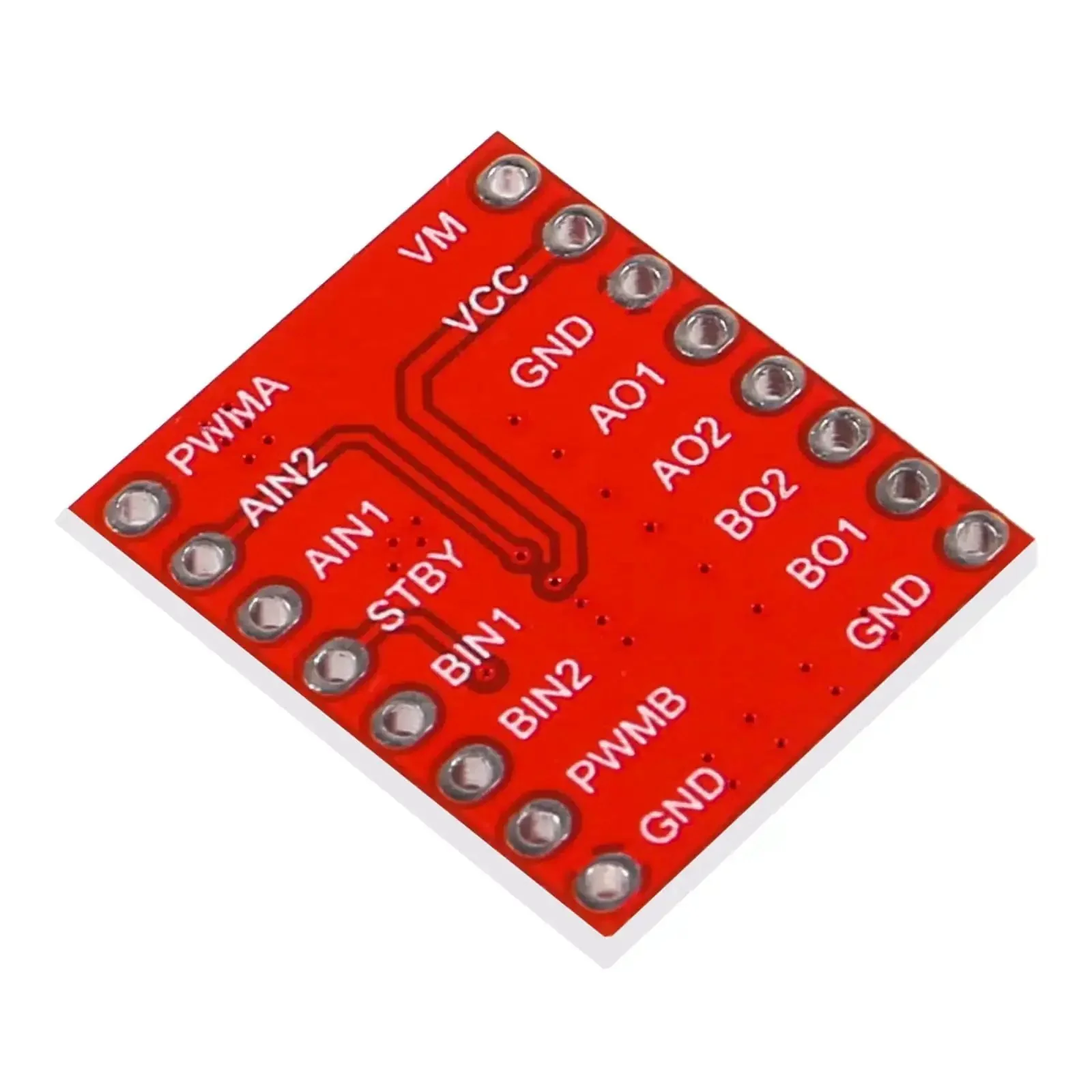

✅ Pinout: two 0.1" headers, inputs on one side, outputs on the other

💡 What is a motor driver module used for in hobby robotics and DIY projects? This handy device lets you safely drive two DC motors from a microcontroller while handling current, voltage, and motion control.
- It converts microcontroller signals into motor power with proper current handling
- It provides directional control (CW/CCW) and braking for simple motion
- It protects the system with over-current, UVLO, and thermal shutdown features
- It simplifies wiring with clearly separated input and output headers
