Three Pole Contactor With 120V Coil, 30 Amp Normally Open 1NO/1NC Auxiliary, IEC 660V Rated, DIN Rail Mounting Base, HVAC Lighting And Electric Load Control, Suitable For AC-1 And AC-3 Applications, 110-120VAC Coil

Single unit 3 Pole Contactor with 120V Coil
✔️ 30A 3-pole NO/NC aux, DIN rail base, IEC 660V rated

This three-pole contactor is designed for HVAC and lighting control, offering reliable switching for AC-1 and AC-3 applications. It fits on standard DIN rails for clean panel installations and complies with IEC/EN standards for safe operation.

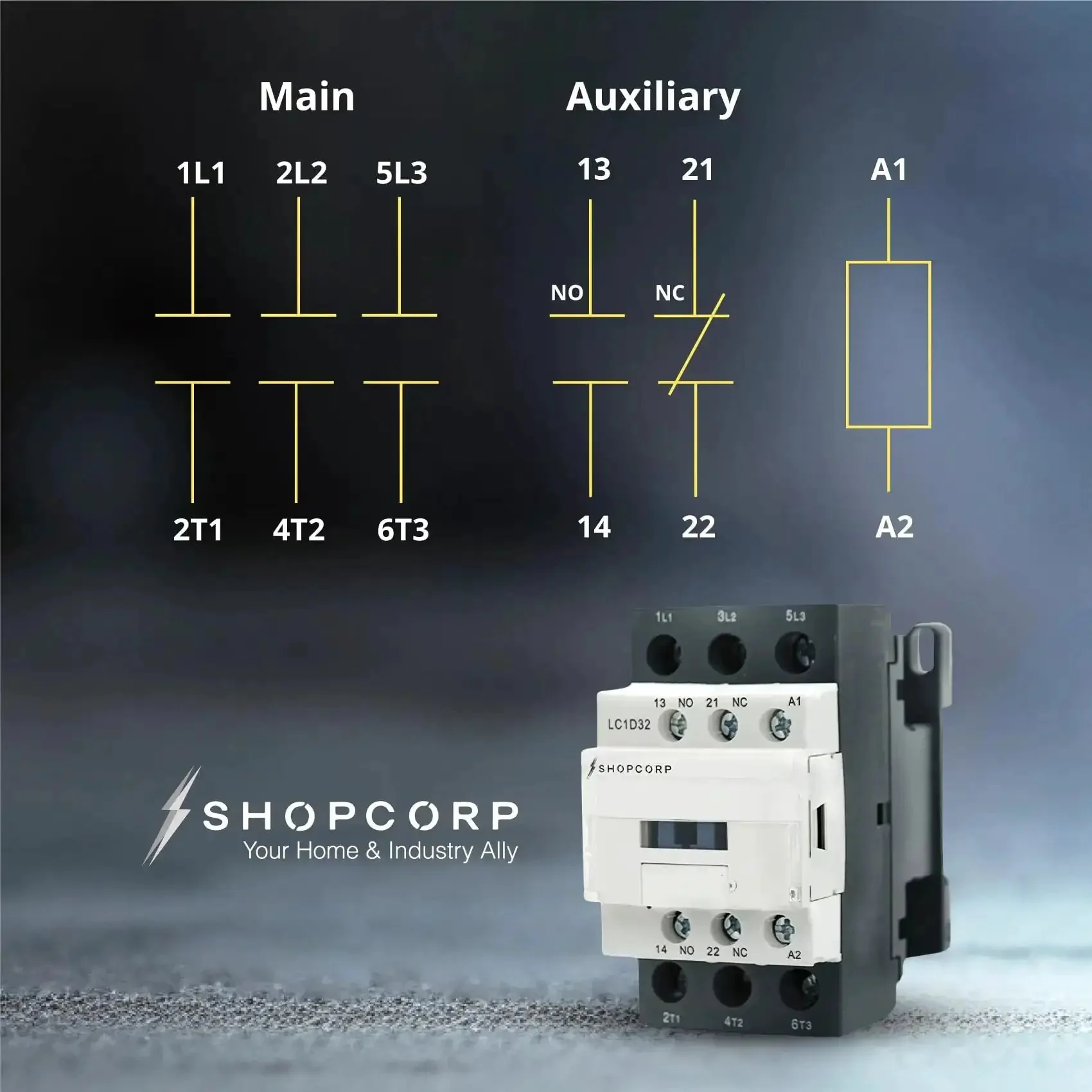

✅ 3 Pole with 1NO/1NC auxiliary contacts
✅ 110-120VAC coil for easy control
✅ Handles inductive loads up to 32A and resistive loads up to 50A
✅ 70VA inrush, 7.5VA sealed load

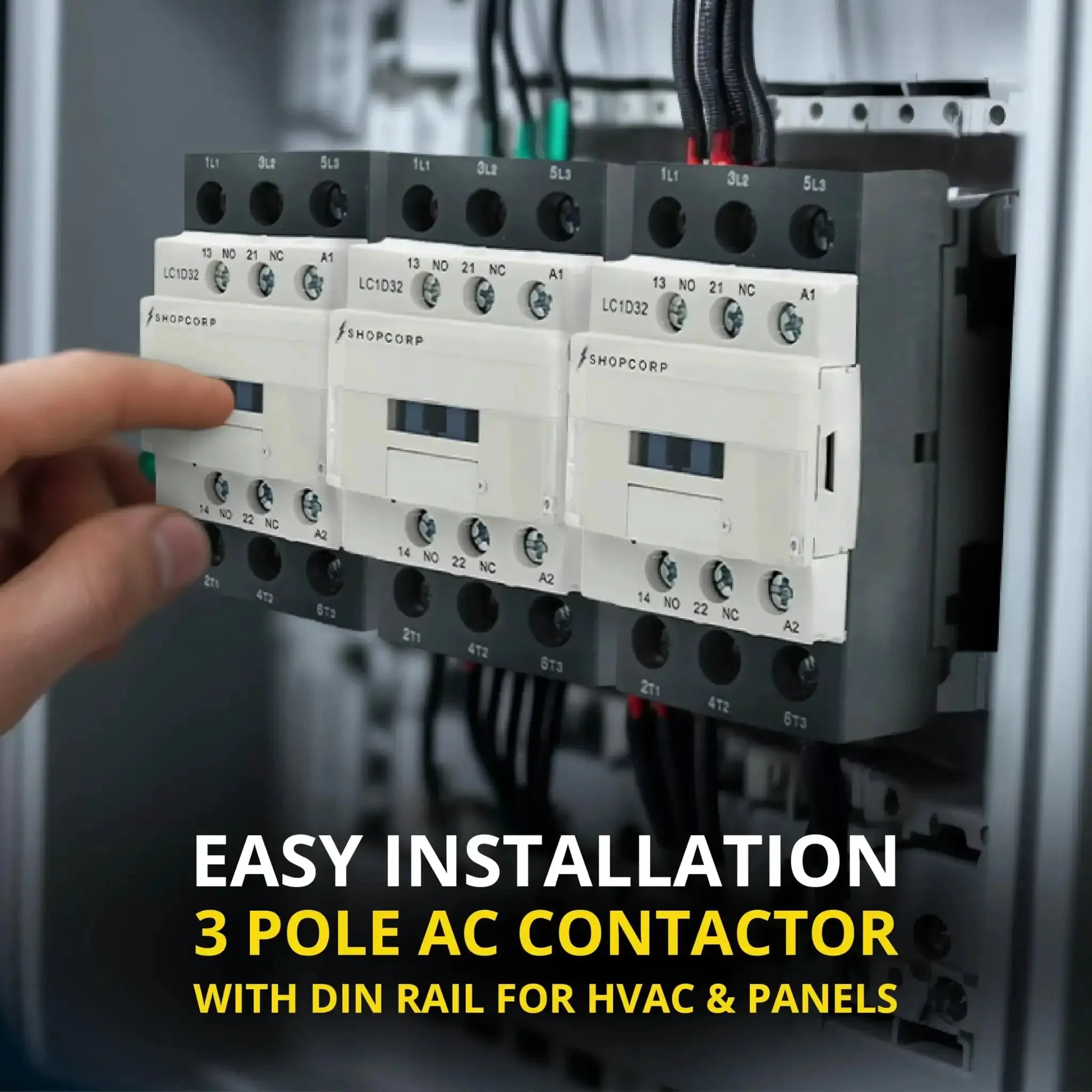

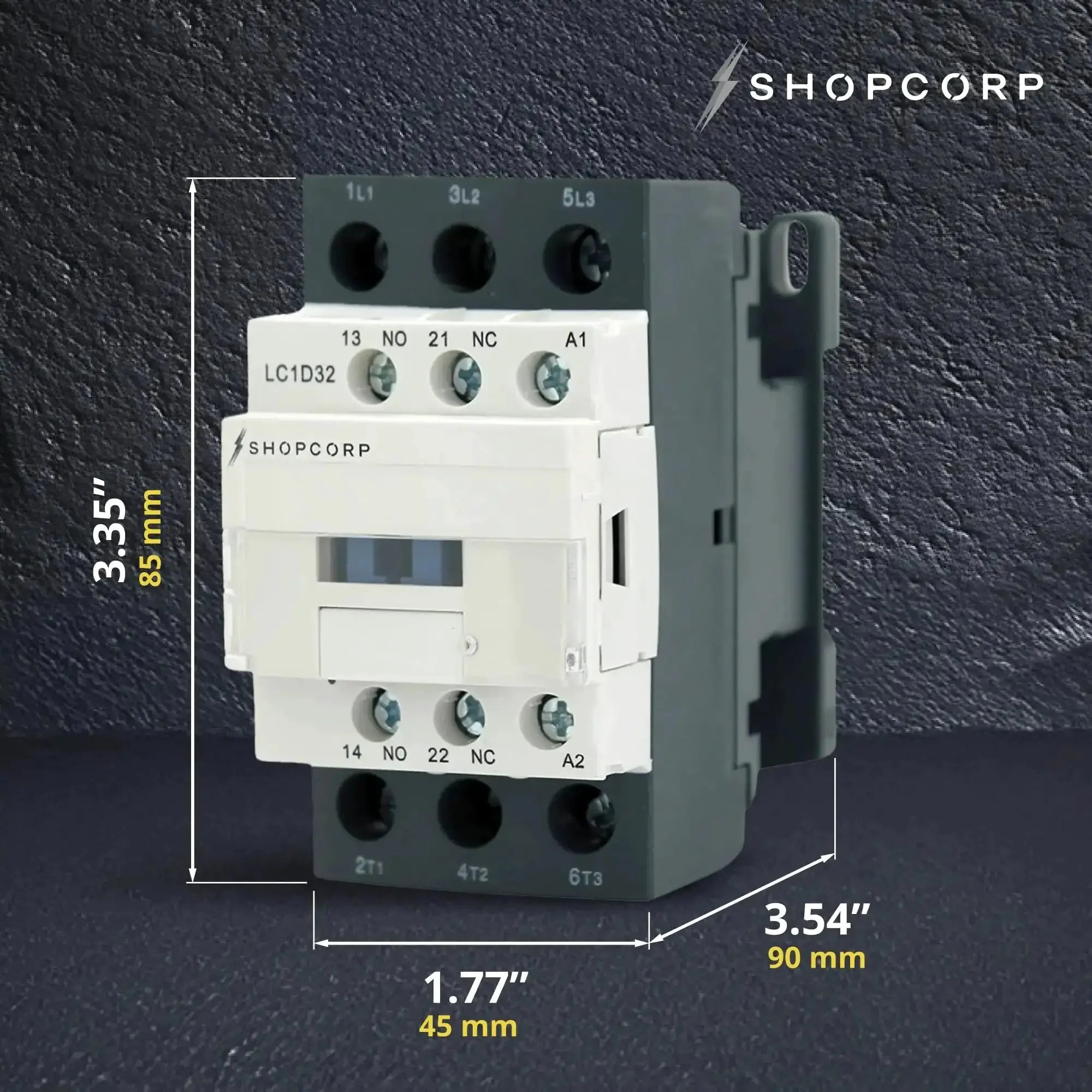

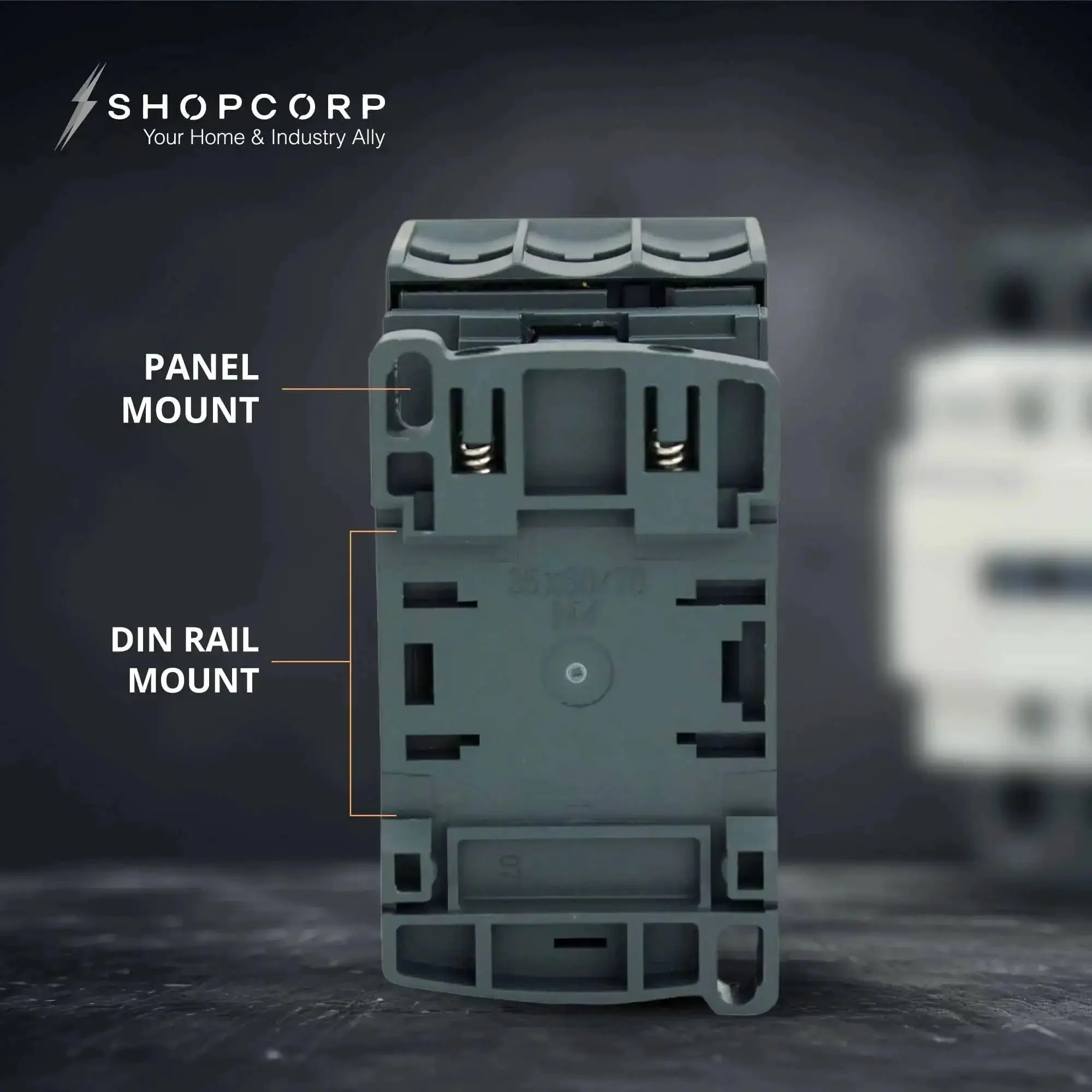

✅ DIN rail mounting base, compact 85 x 45 x 90 mm / 3.35in x 1.77in x 3.54in
✅ Power lug terminals for AWG #4

💡 What is a 3 pole contactor used for in HVAC and lighting control?

This handy device lets you switch high-current circuits in HVAC equipment, lighting panels, and motor-driven loads with a single control signal. - Handy for HVAC control panels, lighting circuits, and motor starters - Provides 1NO/1NC auxiliary contacts for signaling and interlocking - DIN rail mounting makes panel setups quick and neat - Rated for 110-120 VAC coil and IEC 660V service in typical installations
