Two Pack Rotary Switch 4 Position 3 Speed Metal Fan Heater Speed Selector Switch 12A 250V With Female Terminals Heavy Duty Brass Contacts For DIY Projects Workhorse
Two Pack Rotary Switch 4 Position 3 Speed Metal Fan Heater Speed Selector Switch 12A 250V With Female Terminals Heavy Duty Brass Contacts For DIY Projects Workhorse
The Story
✔️ 12A/250V, 5-pin, brass contacts, 30x50 mm (LxH), 2-pack

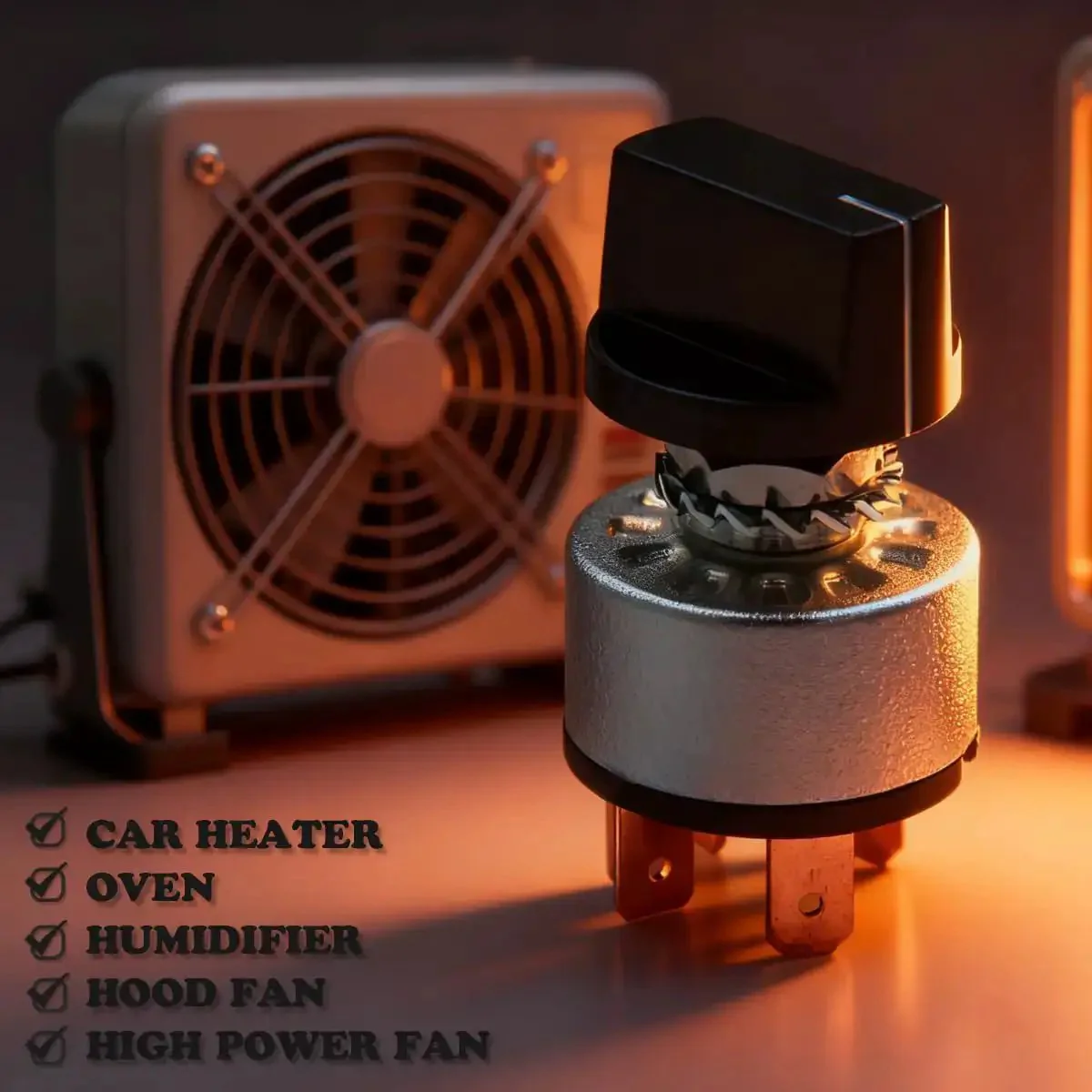

These rugged four-position, three-speed switches are built for DIY projects, fan heaters, and small appliances. They provide reliable control with brass contacts and high voltage tolerance.
✅ Rating: 12A / 250V
✅ Pins: 5
✅ Withstanding voltage: 1500 VAC
✅ Max current: 16A
✅ Contact material: Brass

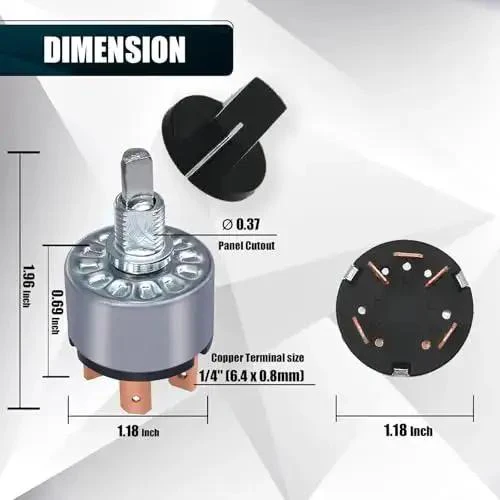

✅ Product size: 30 x 50 mm (L x H) / 1.18" x 1.96"
✅ Terminal size: 6.4 x 0.8 mm
✅ Initial contact resistance: 50 mΩ max
✅ Insulation resistance: 100 MΩ min @ 500VDC

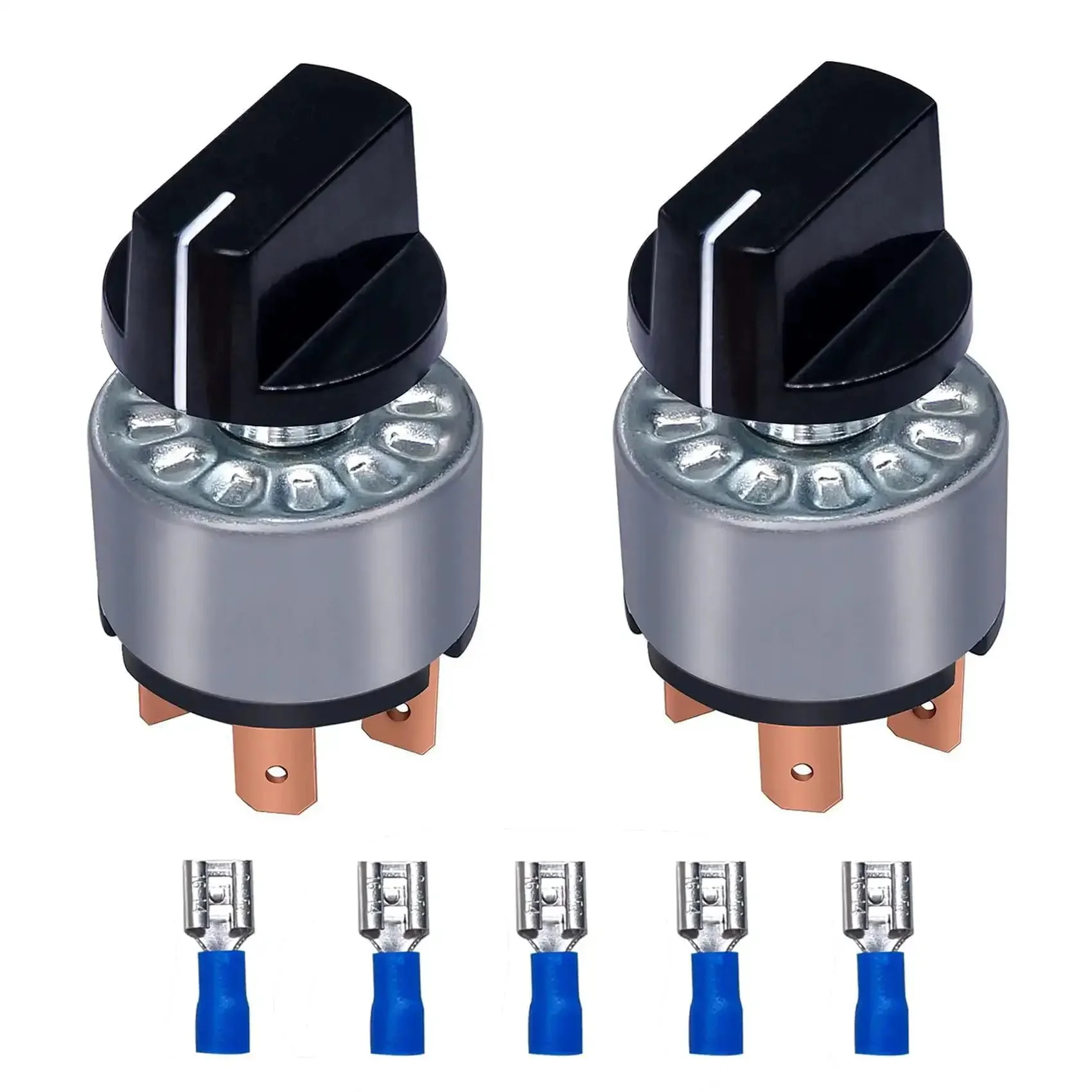

✅ Contents: 2 x Switch, 5 x Terminals, Manual
💡 What is a rotary switch used for in DIY electrical projects?
Rotary switches provide a handy manual control to select different circuits or speeds without rewiring.
- Handy for controlling motors, fans, or heaters in DIY builds - Useful for choosing power modes or speed settings in small appliances - Easy to wire with standard terminals for quick prototyping
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
✔️ 12A/250V, 5-pin, brass contacts, 30x50 mm (LxH), 2-pack
These rugged four-position, three-speed switches are built for DIY projects, fan heaters, and small appliances. They provide reliable control with brass contacts and high voltage tolerance.
✅ Rating: 12A / 250V
✅ Pins: 5
✅ Withstanding voltage: 1500 VAC
✅ Max current: 16A
✅ Contact material: Brass
✅ Product size: 30 x 50 mm (L x H) / 1.18" x 1.96"
✅ Terminal size: 6.4 x 0.8 mm
✅ Initial contact resistance: 50 mΩ max
✅ Insulation resistance: 100 MΩ min @ 500VDC
✅ Contents: 2 x Switch, 5 x Terminals, Manual
💡 What is a rotary switch used for in DIY electrical projects?
Rotary switches provide a handy manual control to select different circuits or speeds without rewiring.
- Handy for controlling motors, fans, or heaters in DIY builds - Useful for choosing power modes or speed settings in small appliances - Easy to wire with standard terminals for quick prototyping
