Voltage Monitoring Relay With Adjustable Over And Under Voltage Protection Delay Timer 35mm DIN Rail Mount DC 24V For Solar Setups Real Time Monitoring Dual Normally Open And Closed Contacts Indicator Lights

Voltage Monitoring Relay With Adjustable Over And Under Voltage Protection Delay Timer 35mm DIN Rail Mount DC 24V For Solar Setups Real Time Monitoring Dual Normally Open And Closed Contacts Indicator Lights

Name: Voltage Monitoring Relay With Adjustable Over And Under Voltage Protection Delay Timer 35mm DIN Rail Mount DC 24V For Solar Setups Real Time Monitoring Dual Normally Open And Closed Contacts Indicator Lights
Brand: Bearings
SKU: voltage-monitoring-relay-with-adjustable-over-and
Availability: InStock

$51.54

The Story

DC 24V Voltage Monitoring Relay with Adjustable Over/Under
✔️ Single unit, DC 12/24/36/48V, 6A 250VAC, 35mm rail mount

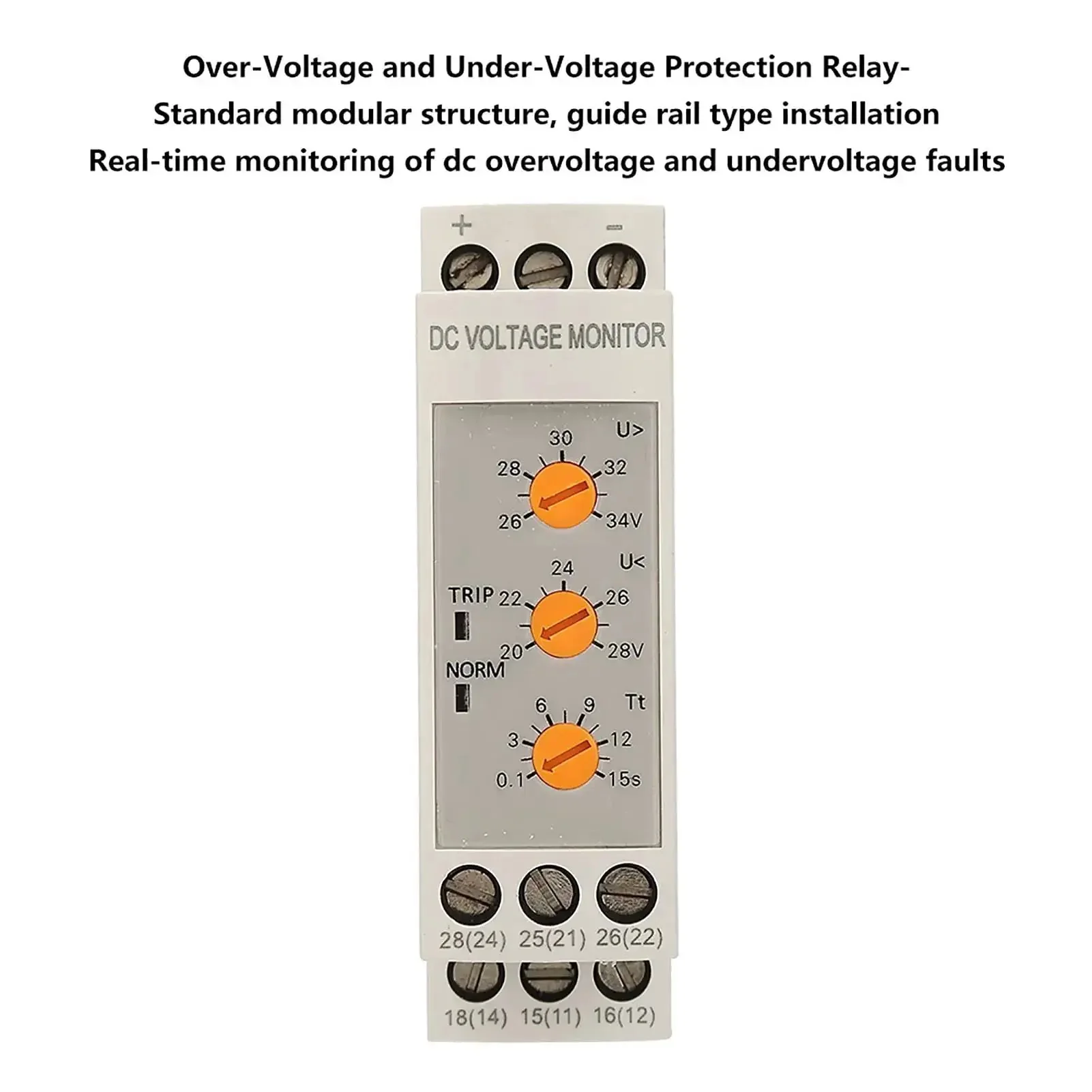

This compact DC voltage monitor protects solar setups, battery banks, UPS, and DC power rails by watching for over and under voltage in real time. Install on a 35mm DIN rail inside control panels for clear fault signaling and automatic protective actions.

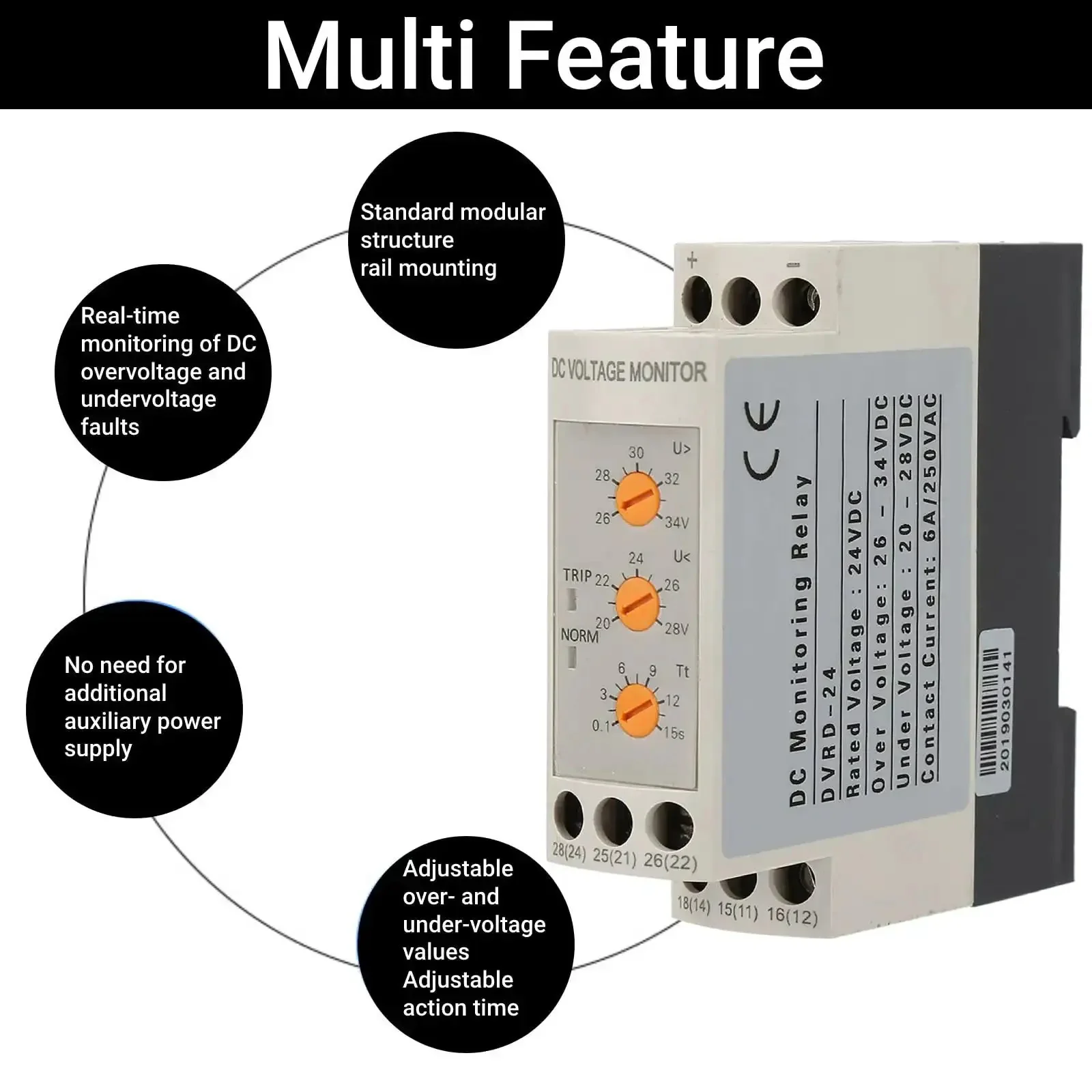

✅ Overvoltage and undervoltage protection with adjustable thresholds

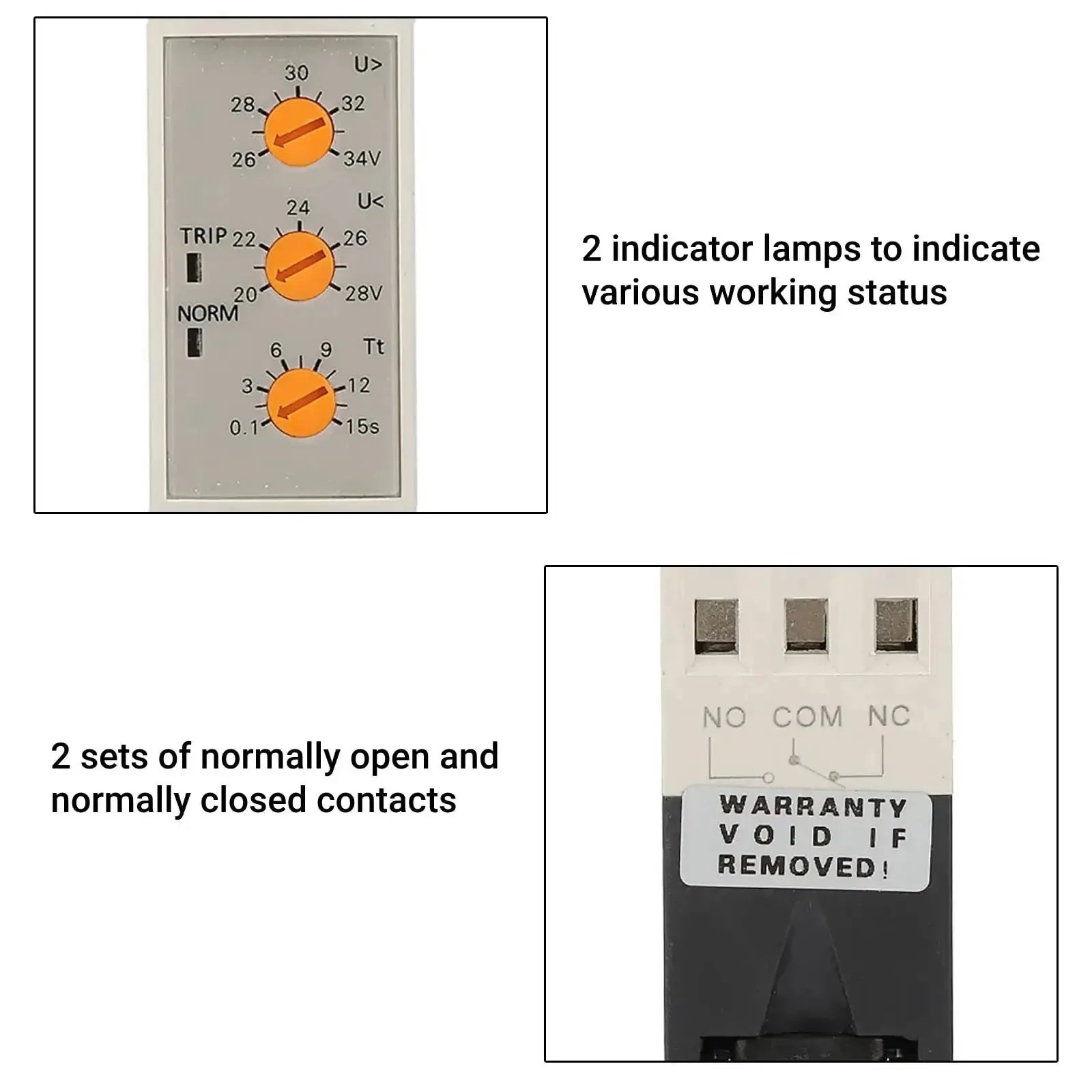

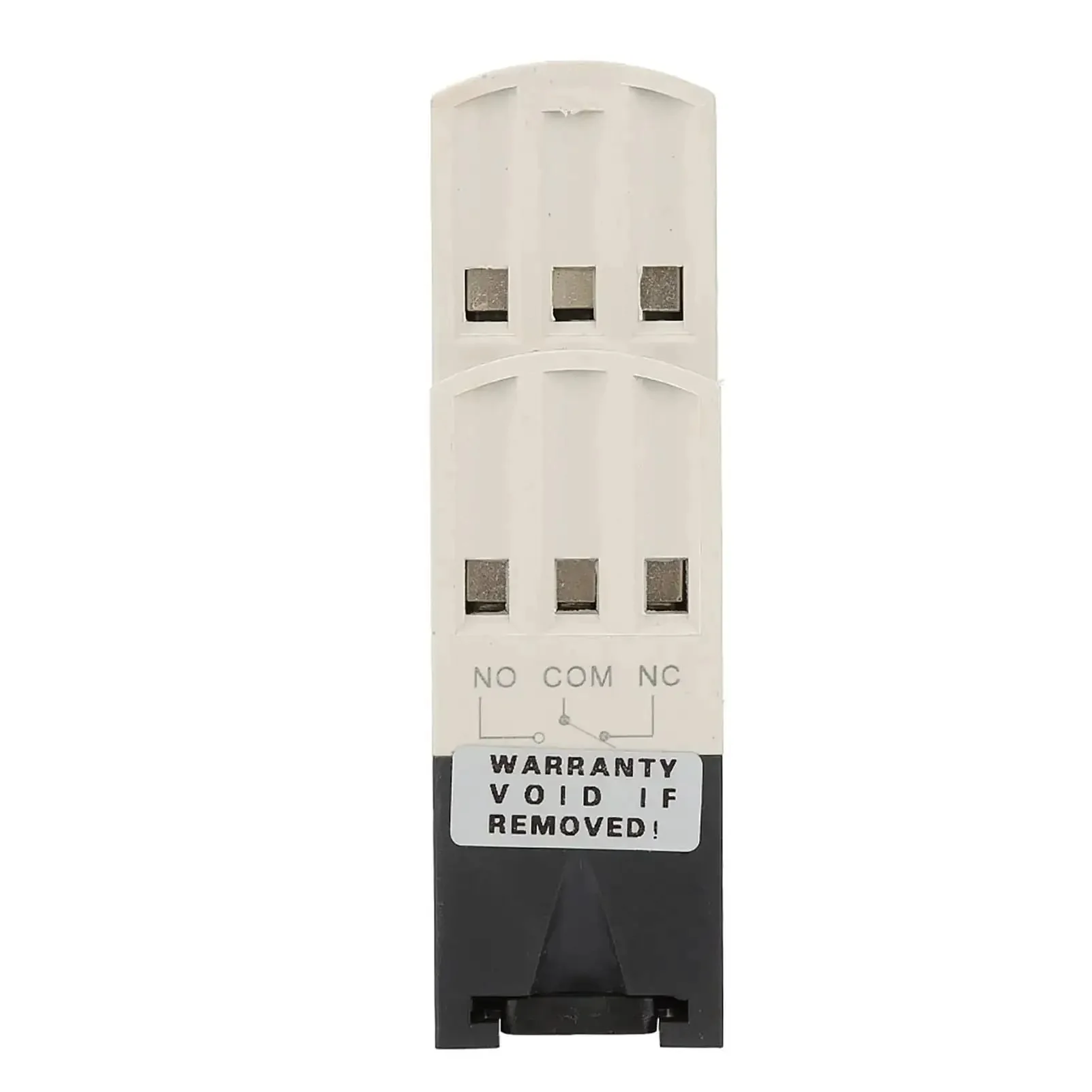

✅ Two sets of contacts: 2 normally open and 2 normally closed
✅ Real-time DC monitoring with status LED indicators
✅ 35mm DIN rail mount compact enclosure for easy installation
✅ Rated 6A at 250VAC; DC monitoring circuit
✅ Adjustable action delay from 0.1 to 15 seconds

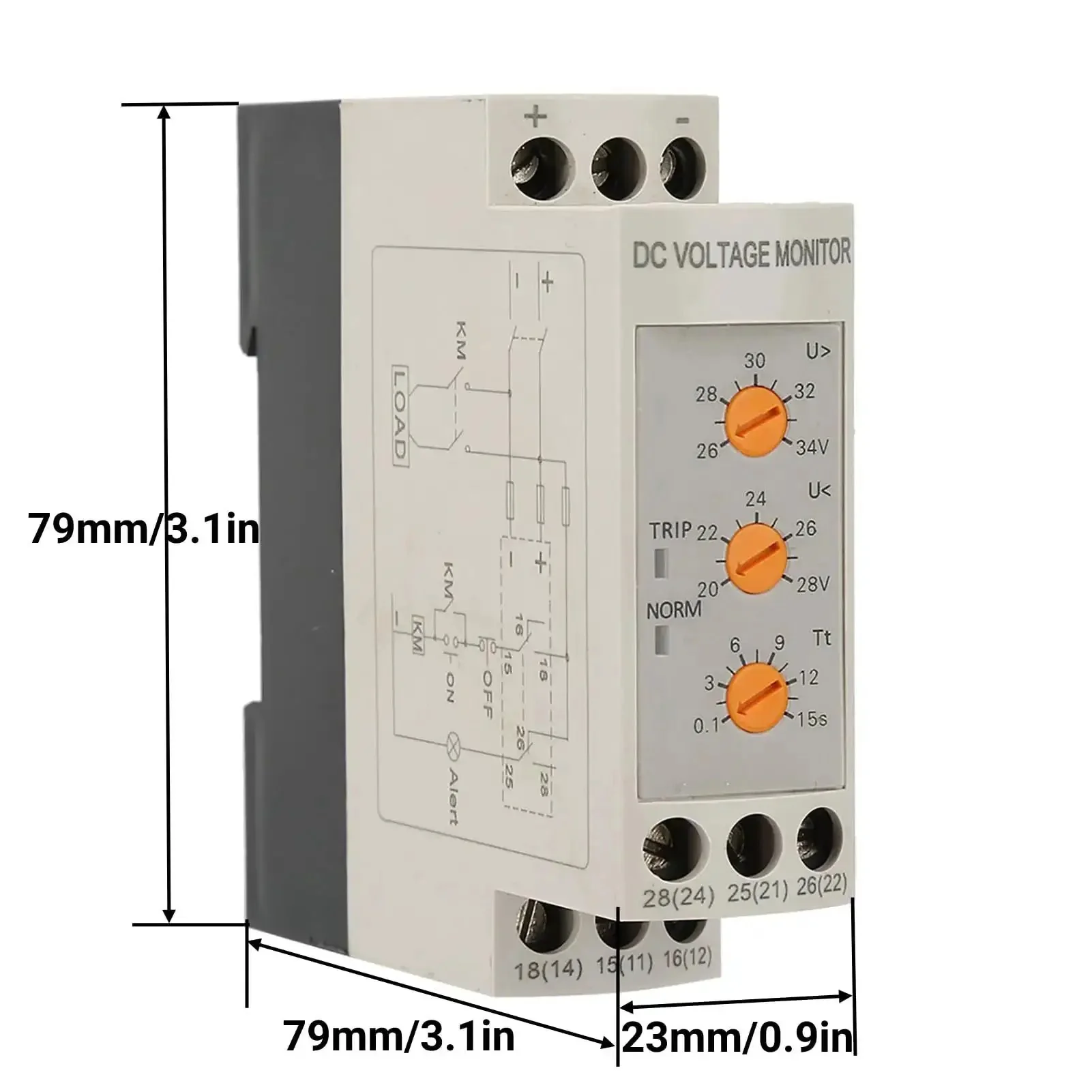

✅ Dimensions approx. 79 × 23 × 79 mm (3.1 × 0.9 × 3.1 in); weight ~200 g

💡 What is a DC voltage monitoring relay used for in solar and battery systems? A handy explanation: It protects DC power rails by monitoring voltage and triggering protective actions. - It guards DC motors, batteries, UPS by cutting off or switching when voltage goes out of range - It provides real-time fault detection and status indicators for quick diagnostics - It mounts on a 35mm DIN rail for easy integration into control panels
