XC150 CNC Linear Stage Motion Actuator XYZ Axis Cross Sliding Table With 1605 Ballscrew And Nema23 Stepper Motor Bracket Beefy Dual Linear Slide Rails For Heavy Duty CNC Router And Automation

XC150 CNC Linear Stage with 1605 Ball Screw, Dual Rails

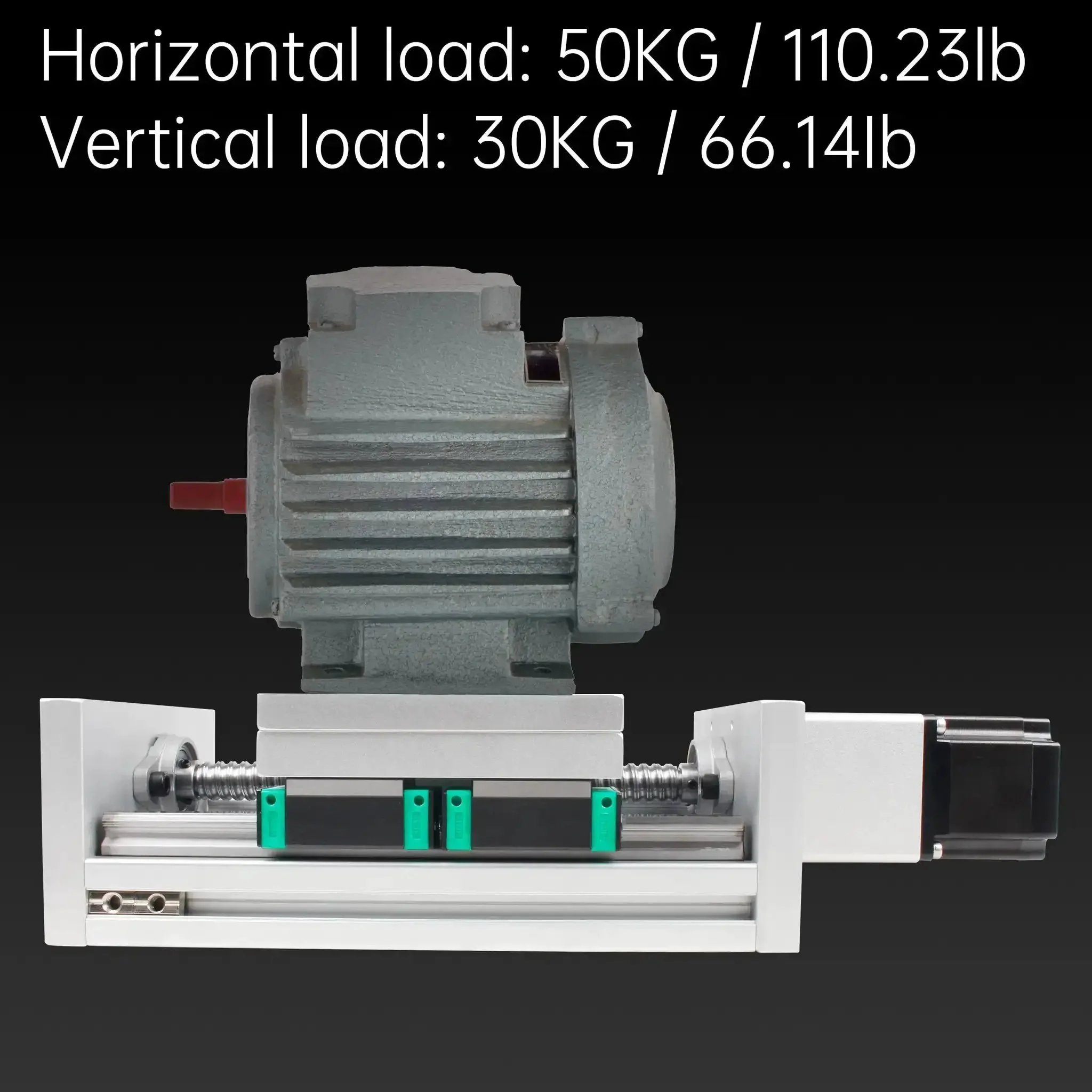

✔️ Heavy-load 50 kg horizontal, 30 kg vertical, 4 sliders

The XC150 CNC Linear Stage is a heavy duty motion platform built for precise X and Y travel in CNC routers, automated production lines, and inspection equipment. It combines a 1605 ball screw with dual rails to deliver strong rigidity and accurate positioning, even under demanding loads. This setup is ideal for moving heavy fixtures and fixtures fixtures without losing accuracy during fast cycles.

✅ 50 kg horizontal load capacity and 30 kg vertical load capacity
✅ Dual guide rails with 4 sliders provide 200% higher rigidity than a single rail
✅ Widened aluminum sliding table, anodized finish resists oil and humidity, up to 500 mm/s
✅ 1605 ball screw offers positioning accuracy of ±0.02 mm and repeatability of ±0.01 mm
✅ 57-step NEMA23 motor with integrated bracket ensures precise coaxiality and reduced wear

💡 What is a CNC linear stage with ball screw used for in precision manufacturing? This handy overview explains typical uses and benefits.

- High-precision alignment of heavy fixtures on CNC routers - Smooth, repeatable motion for automated assembly lines - Easy integration with standard motor brackets and control systems - Reduced backlash and improved accuracy for long production runs
